[Sonic Mega 8K] Printing Tips when using our Mega 8K

After slicing your 3D files, it’s time for a few exclusive tips and tricks for printing your 3D models with the Sonic Mega 8K! Let’s get right into it:

Printing Tips for using our Mega 8K

Power on and prepared

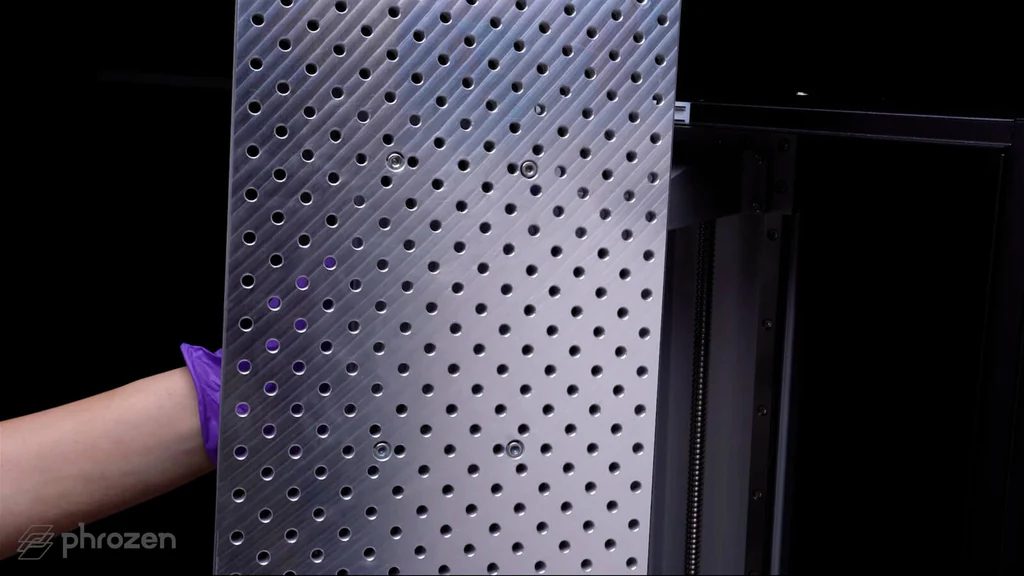

• Make sure that the building plate DOES NOT have any resin residue leftover from your last print job.

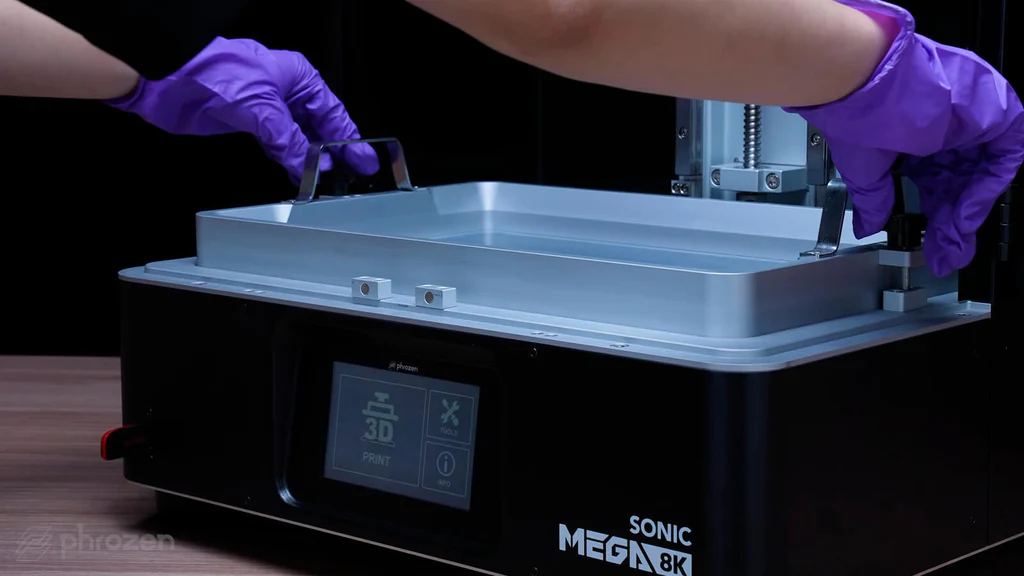

• Make sure that the resin vat and the LCD screen are extremely clean before installing the vat.

Pour in the resin

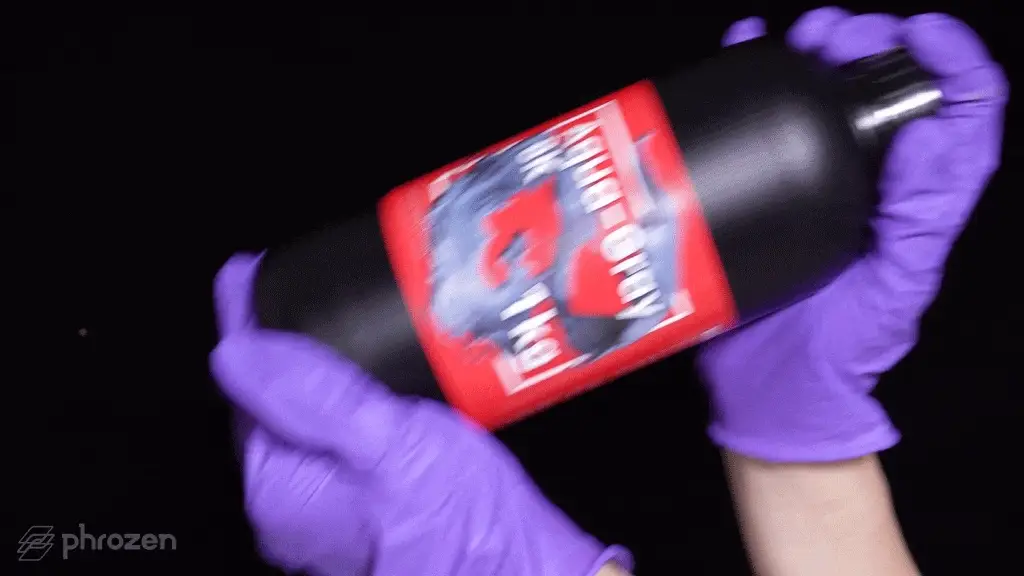

• Shake the Aqua-Gray 8K resin evenly for approximately 30 seconds to 1 minute

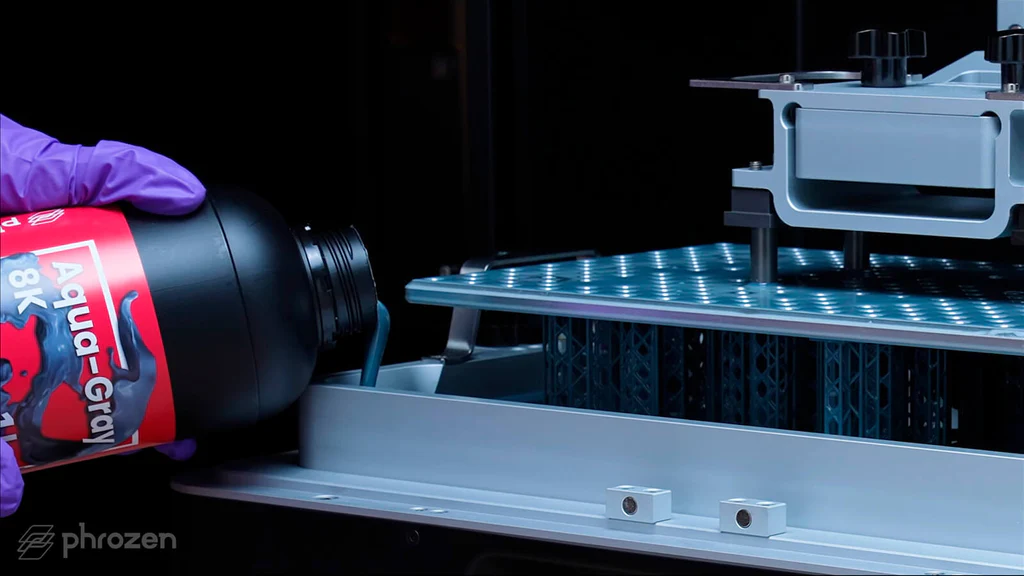

• Pouring resin into resin vat, and make sure it does not exceed the maximum fill line on the resin vat.

Start the printing process

• On the touch panel, click on PRINT, select your .ctb file, and then click on Go. ‘

• Close the chamber door to continue the printing process.

Printing complete

• Preparing a tray while removing your final print.
• Place the longer side of the building plate on the table.

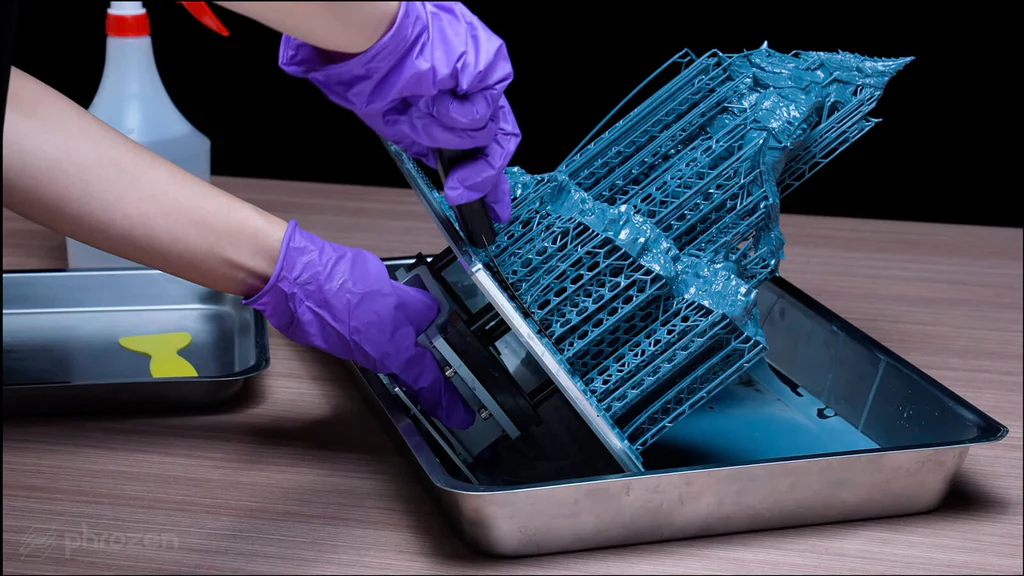

• Use the metal scraper provided in the toolbox to gently remove your print.
• Remove the supports with your hands. As the tip of the supports can be quite sharp, please be careful not to hurt yourself while doing so.

If there is any leftover resin in the resin vat, you can filter it and use it for your next print.

After you’re done, it’s time to move on to here.

Contact Support

Follow these tips for optimal use of the Sonic Mega 8K 3D printer. For more information, refer to the Sonic Mega 8K Getting Started Guide. If you find any issues, feel free to reach out to Phrozen Support or your Authorized Reseller for further assistance. When contacting Phrozen Support, kindly send some photos or videos illustrating the issue.
