How to Slice your files using the Sonic Mighty 16K/ 16K Upgrade Kit?

After you have finished installing all the hardware components of the 16K Upgrade Kit to the Sonic Mighty Mighty Revo printer, you will need to do a few more software adjustments before starting to slice your files in Chitubox. This article will guide you through some simple steps to add the 16K Upgrade Kit into your Chitubox slicer.

Adding the Sonic Mighty 16K/ 16K Upgrade Kit into Chitubox

1. Adding the 16K / 16K Upgrade Kit

• Open Chitubox Slicer
• Click the “+" icon to add a new printer

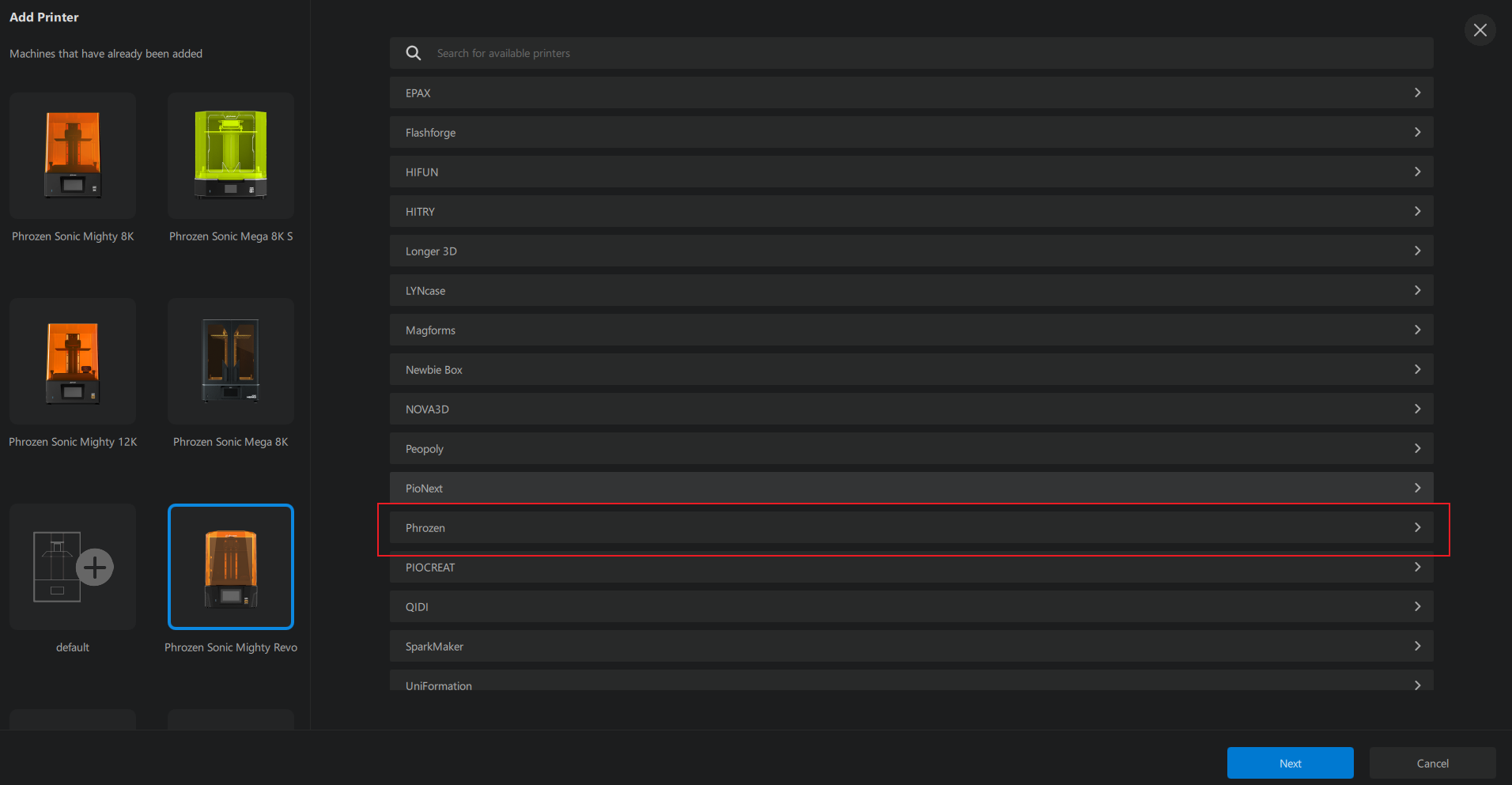

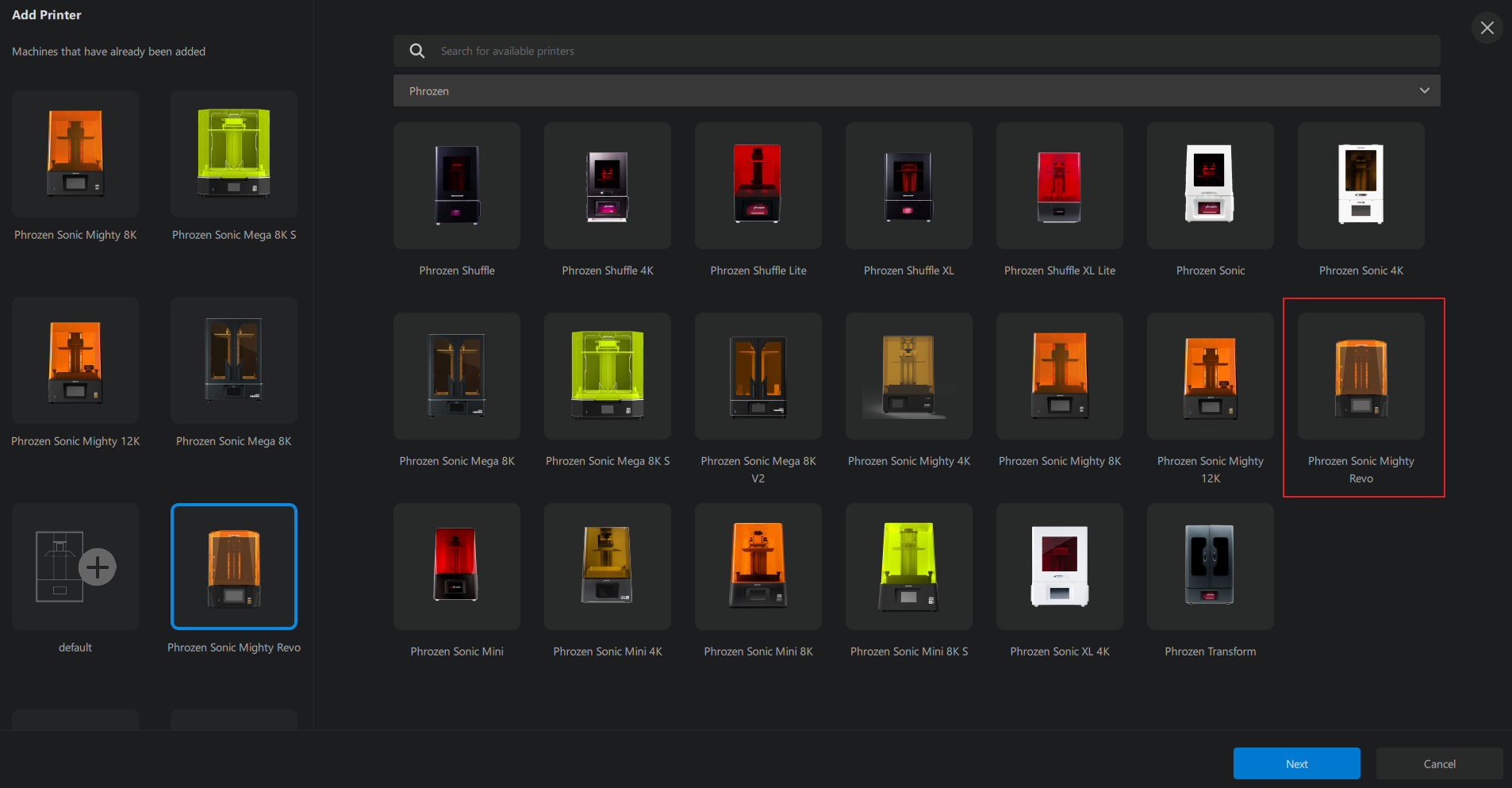

• Go to “Phrozen” and choose “Phrozen Sonic Mighty Revo”

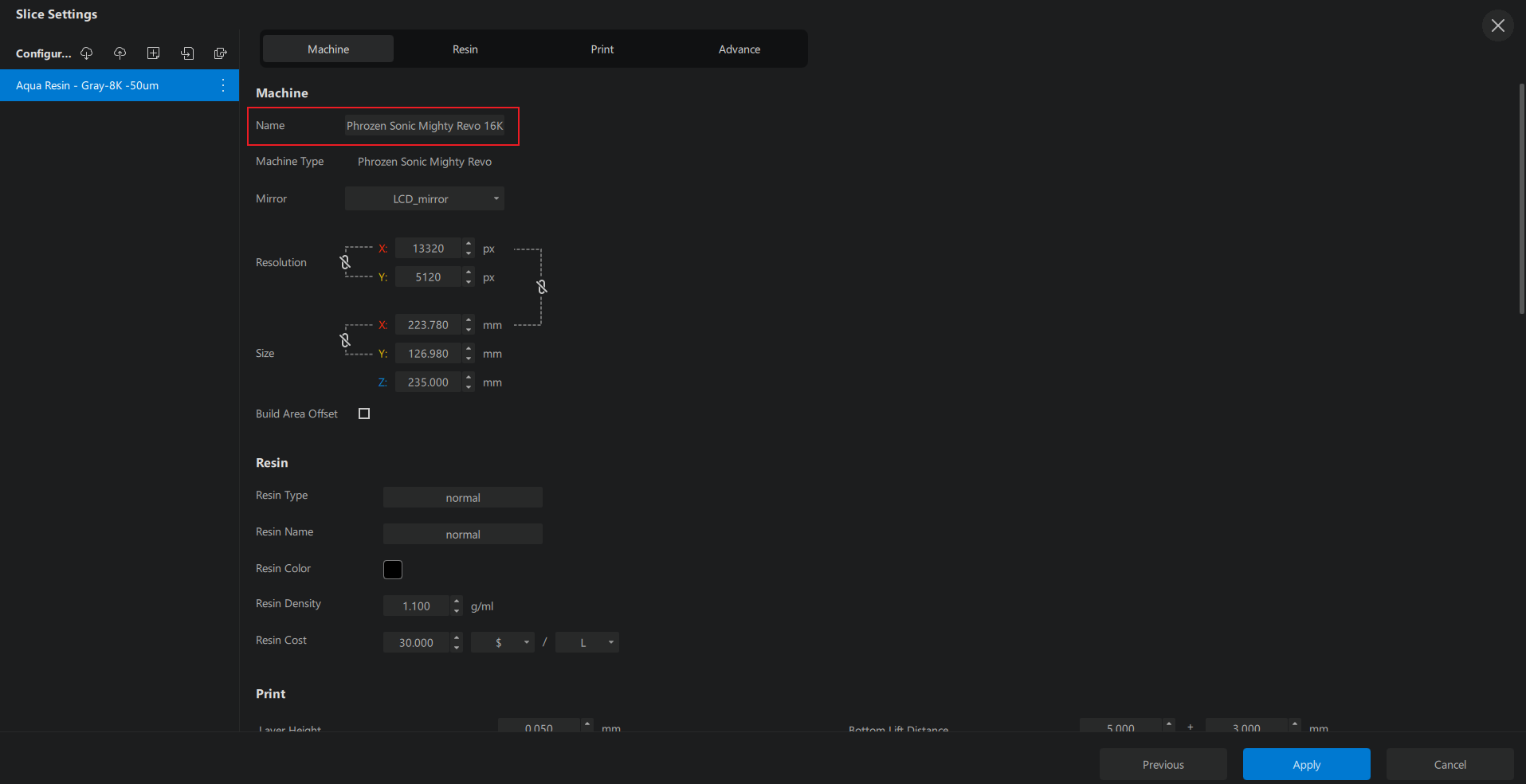

• Rename the printer “Phrozen Sonic Mighty 16K/ 16K Upgrade Kit” or any names you prefer

2. Adjust X and Y resolution

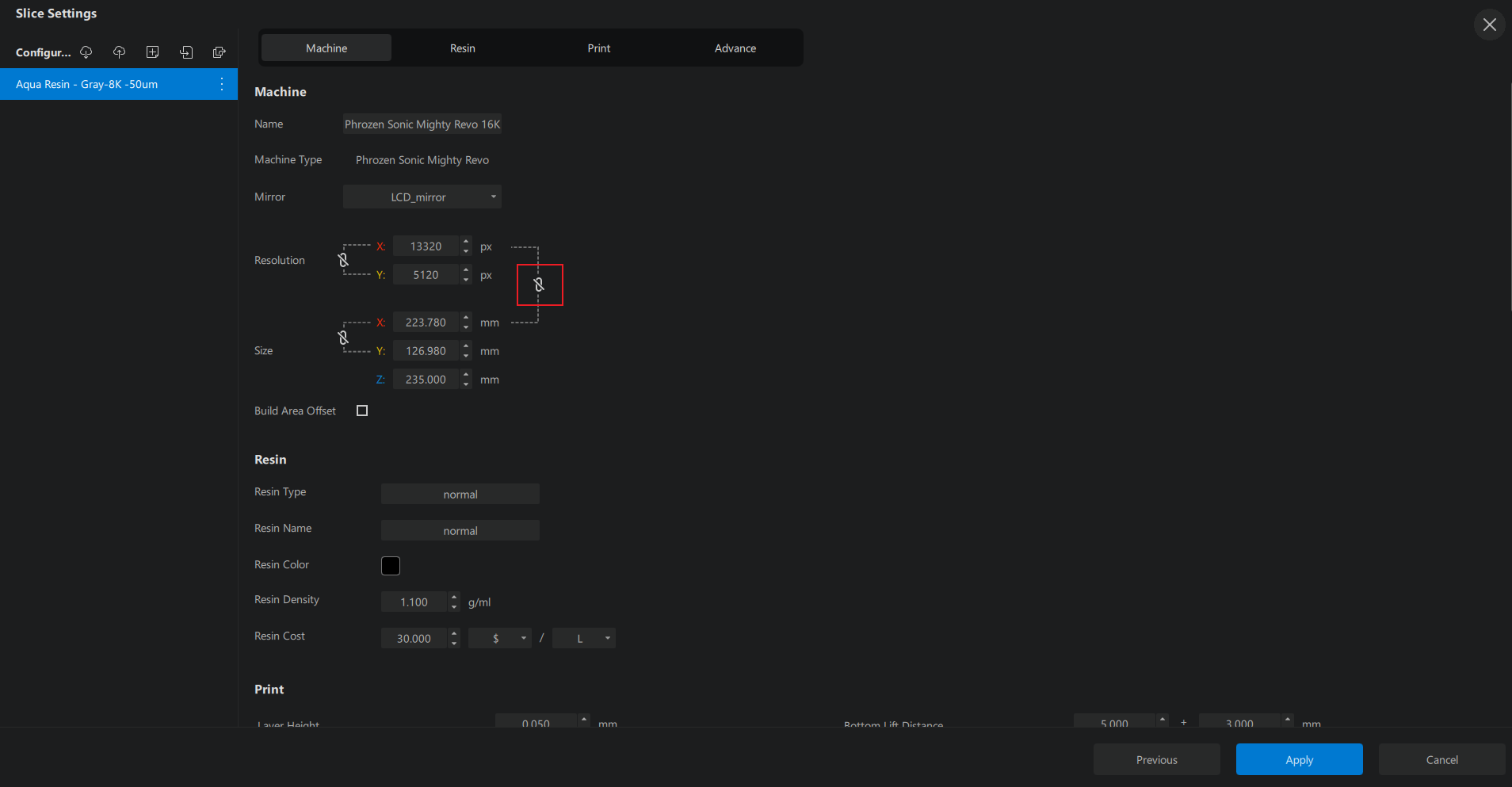

• Uncheck “Lock Ratio” if displays a link icon.

• Change the resolution of the X and Y axis into 15120 x 6230 respectively

• Also need to the change the X and Y Values in the size section:
  X: 211.680
  Y: 118.370



• Done

Make sure to select the correct resin type and adjust the print parameters based on the resin you are using.

Contact Support

By following the above instruction, you can easily add the Sonic Mighty 16K/ 16K Upgrade Kit into Chitubox and slice your files. If you find any issues, feel free to reach out to Phrozen Support or your Authorized Reseller for further assistance. When contacting Phrozen Support, kindly send some photos or videos illustrating the issue.
