How to use ChituPro with Mighty Revo?

Are you looking to harness the full potential of your Mighty Revo printer with Chitu Pro software? Look no further! In this article, we'll walk you through the simple steps to get started and ensure seamless slicing for your 3D printing projects.

Step 1: Install ChituPro

The first step is to install the Chitu Pro software on your computer. You can do this by downloading it from the official Chitu website or using the USB drive provided in your toolkit. Follow the installation prompts to complete the setup process.

Step 2: Select Mighty 8K Printer

Once Chitu Pro is installed, launch the software on your computer. You'll be prompted to select your printer model. For the Mighty Revo, choose the Mighty 8K printer from the available options.

Step 3: Import Printer Config for Mighty Revo

After selecting the printer model, it's time to import the printer configuration for the Mighty Revo. To do this, simply open the USB drive provided in your toolkit. Import this file into Chitu Pro from the USB. You'll find the printer configuration file for the Mighty Revo as instructed below:

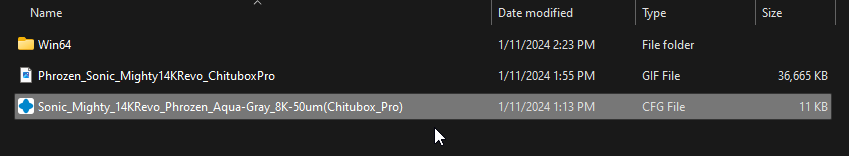

• Locate the USB drive and open it. You shall find the following files inside the USB Drive.



• Import the above highlighted file into ChituPro.

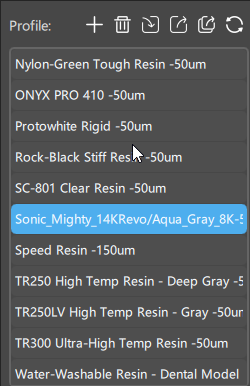

• Find the printer configuration file for the Mighty Revo as shown below.


It's essential to understand that importing the printer configuration file only creates a machine profile for slicing files using the Mighty Revo. You'll still need to manually adjust the resin profile to ensure optimal printing results.

Step 4: Slice Your Model

With the printer configuration imported, you're now ready to slice your 3D models for printing. Load your model into Chitu Pro, adjust any necessary settings such as layer height and infill, and then slice the model using the Mighty Revo machine profile.

Step 5: Done!

Congratulations, you've successfully configured Chitu Pro for use with your Mighty Revo printer! You can now send the sliced files to your printer and start bringing your creations to life.

By following these simple steps, you'll be able to maximize the capabilities of your Mighty Revo printer and achieve high-quality 3D prints with ease. If you are still facing any issues, feel free to contact our Customer Support Team and we will be happy to assist you further.
