[Wash & Cure Station] Wash Station: Checking Motor Cable Connections

Before reaching out for external support when encountering motor issues with your Wash Station, it's worthwhile to perform some troubleshooting steps. This guide offers straightforward instructions to help you inspect the motor connection of your Wash Station.

1. Checking the Motor Cable

Power down and prepare

• Switch off the device
• Unplug the power cord from the device
• Use the H2.5 hex key to loosen 7 screws and remove the bottom case

• Remove and keep the bottom case aside

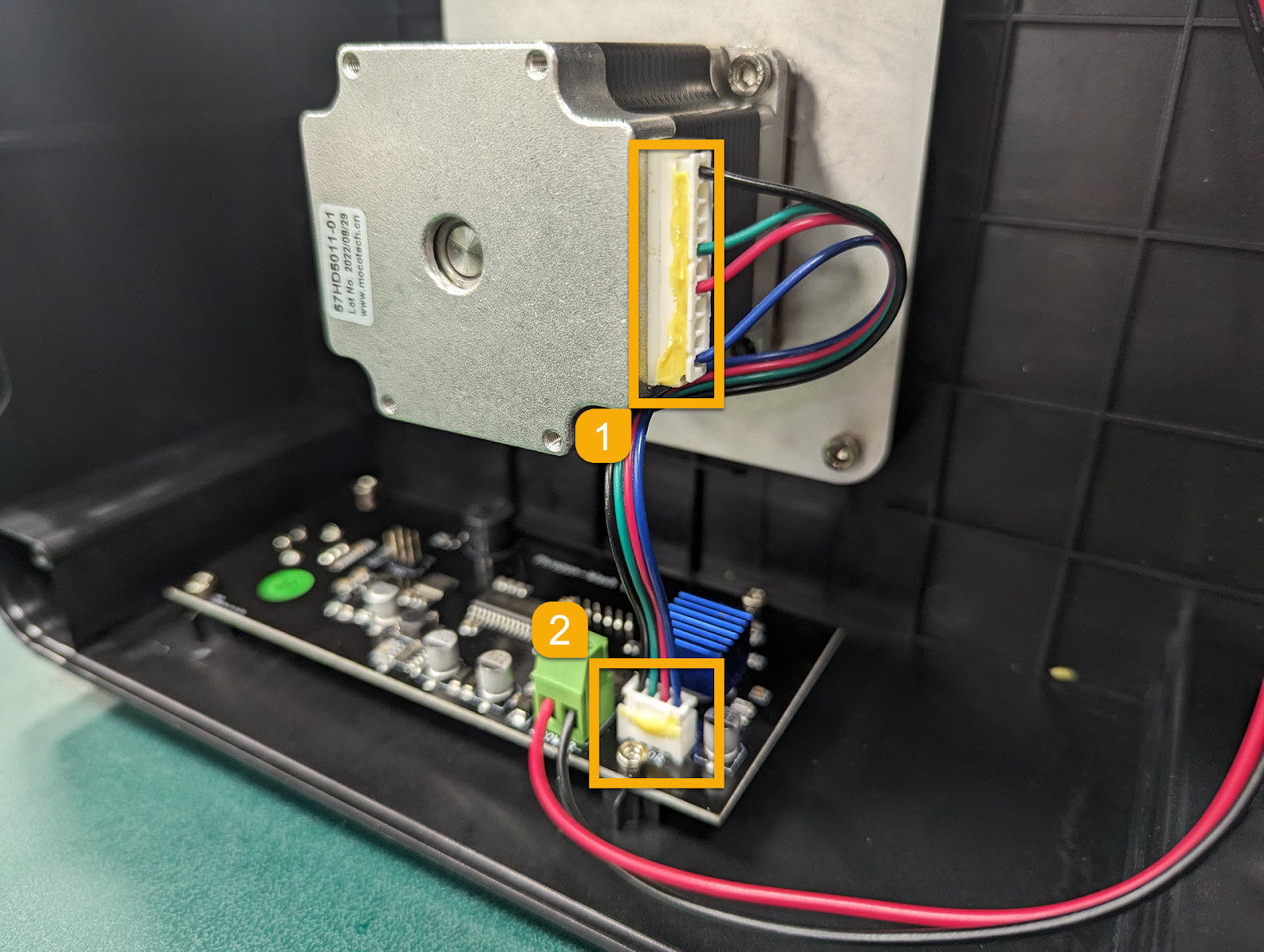

Reconnect the motor cable and verify the motor functionality

• Inspect and reconnect both ends of the motor cable

• Reinstall the bottom case
• Plug in the power cord and turn on the device
• Run the device and check if it works properly

Contact Support

By following the above instruction, you can easily check the motor of your Wash Station. If the issue persists or you face any difficulties during the troubleshooting process, feel free to reach out to Phrozen Support or your Authorized Reseller for further assistance. When contacting Phrozen Support, kindly send some photos or videos illustrating the issue.
