[Sonic Mini 8K S] Replacing the LCD

The LCD screen is an essential component in resin 3D printing. It is responsible for generating an image of each layer while an array of LED chips project light through it to cure the resin. As the LCD screen is a consumable part, it may need to be replaced after a period of use. When the LCD screen becomes damaged or worn out, it can result in lower print quality or failed prints. Therefore, replacing the LCD screen is necessary to ensure the continued performance and accuracy of your 3D printer.

You can refer to the following detailed instructions to know how to replace the LCD screen in your Sonic Mini 8K S.

1. Remove the Old LCD Screen

Remove the bottom case

• Turn of the printer and unplug the power cord
• Remove the UV cover, building plate, and resin vat
• Loosen the 4 screws on the bottom case and open it

Remove the LCD hood

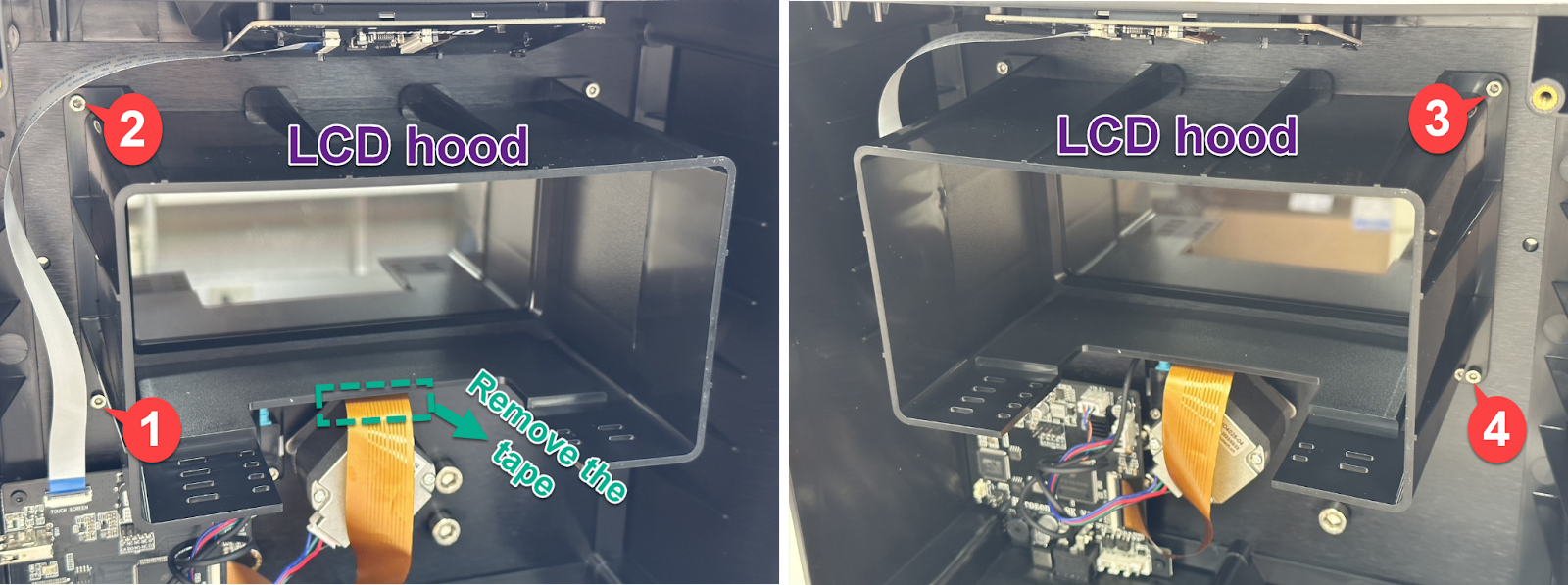

• Loosen the 4 screws that hold the hood in place
• Remove the tape that secures the LCD cable
• Remove the LCD hood from the device

Disconnect the LCD screen from the mainboard

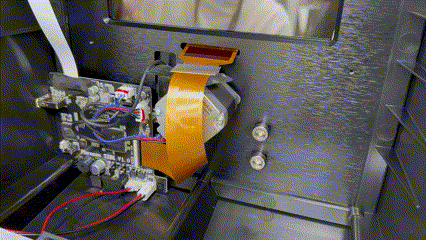

• Open the LCD cable clips

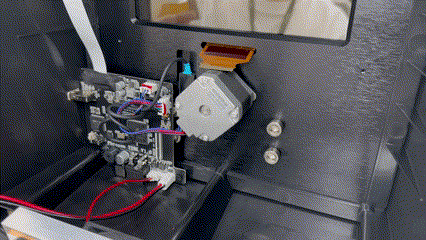

• Detach the LCD ribbon cable from both the mainboard and the LCD screen

Remove the old LCD screen from the printer

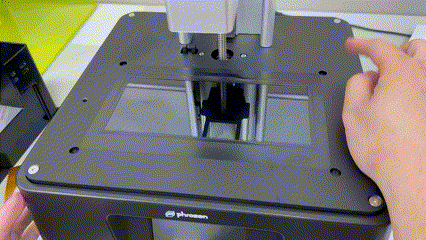

• Turn the printer upright
• Remove the tape around the LCD screen

• Gently push the bottom of the LCD screen from inside the printer with one hand
• Assist in removing the LCD screen with the other hand

2. Install the New LCD Screen

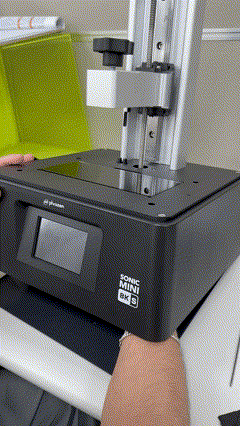

• Thread the LCD ribbon cable through the slot and position the LCD screen in place
• Paste black tape around the edge of the new LCD
• Carefully lay the printer down on a flat surface
• Connect the LCD ribbon cable to both the LCD screen and the mainboard

• Tighten the 4 screws for the LCD hood to secure it
• Tape the LCD ribbon cable on the hood
• Tighten the 4 screws to reinstall the bottom case
• Turn the printer upright
• Perform the built-in LCD Test to ensure that the LCD works properly

Make sure that the lens hood does not press against the wires while closing the bottom case.

Recalibrate your Z Axis after replacing the LCD Screen of your printer.

Contact Support

By following the above instruction, you can easily replace the LCD screen of your Sonic Mini 8K S printer. If you find any issues, feel free to reach out to Phrozen Support or your Authorized Reseller for further assistance. When contacting Phrozen Support, kindly send some photos or videos illustrating the issue.
