Welcome to this guide on replacing the Z-axis for Sonic Mighty 4K. The Z-axis is an essential component that enables the printer to move the building plate up and down, allowing for precise layering during the printing process. Over time, the Z-axis may become worn or damaged, leading to issues such as layer shifting or uneven prints.
In this guide, we will walk you through the steps to replace the Z-axis on your Sonic Mighty 4K, ensuring that your printer is operating at its best and producing high-quality prints.
1. Removing the Old Z-axis
Initial Preparations
- Turn off the printer and disconnect the power cable.
Removing External Components
- Remove the plastic cover, building plate, and resin vat.
- Unscrew and remove the metal block located on top.
Detaching T-Plate

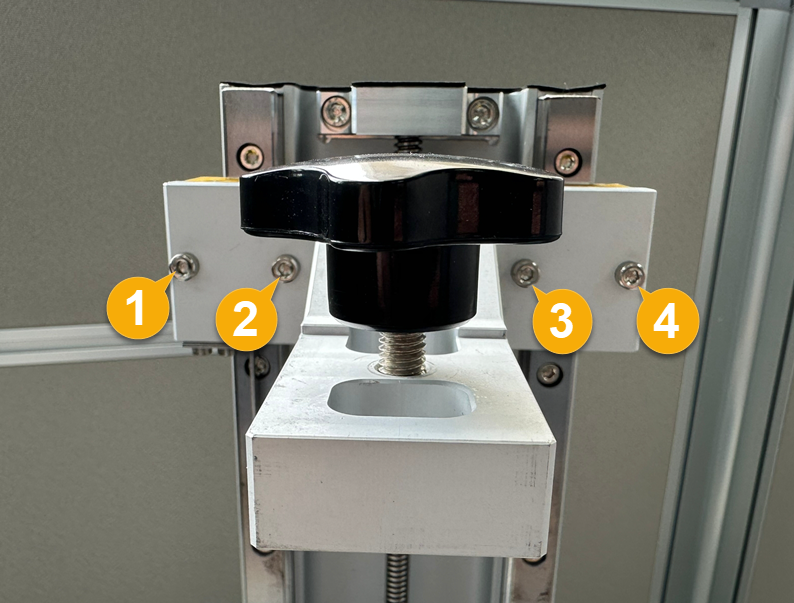

- Loosen the 4 screws on the T-plate.
- Turn the lead screw counterclockwise to take the T-plate out.

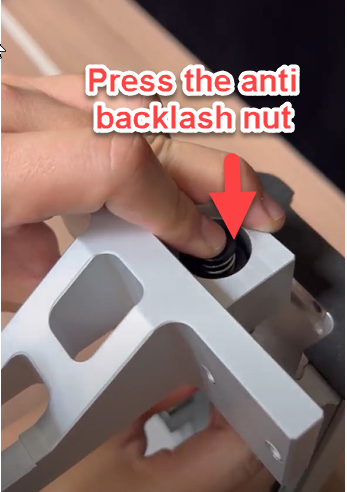

- When the T-plate almost reaches the top, press the anti-backlash nut at the same time to prevent it from popping out.
Securing Components for Transport
- Secure the sliding guides with tape to prevent them from moving.
- Lay the printer down on a flat surface.
Opening the Bottom Case
- Loosen the 6 screws on the bottom case, and then open the case.

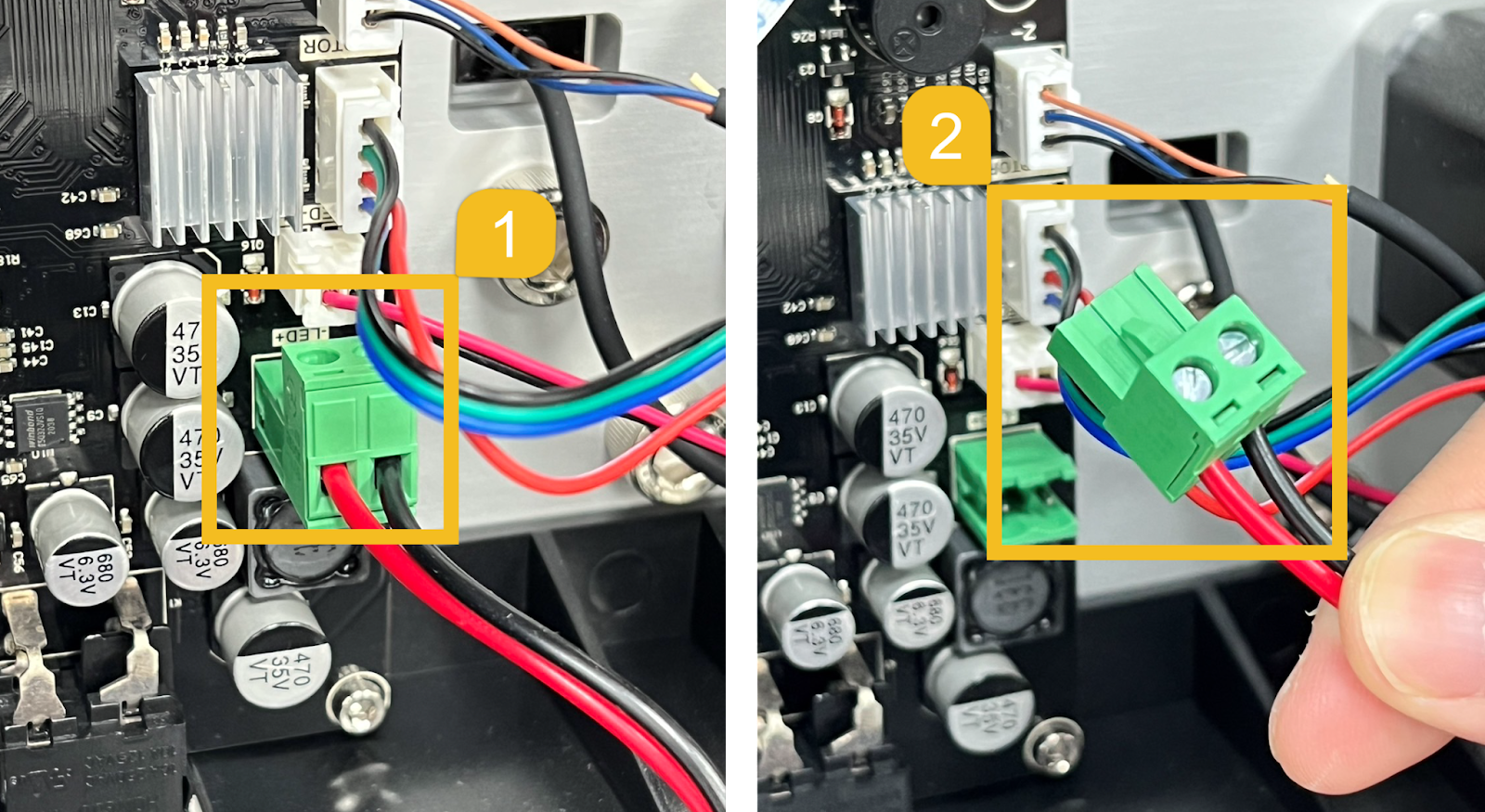

- Unplug the LED connector and remove the bottom case.
Disconnecting Motor Components

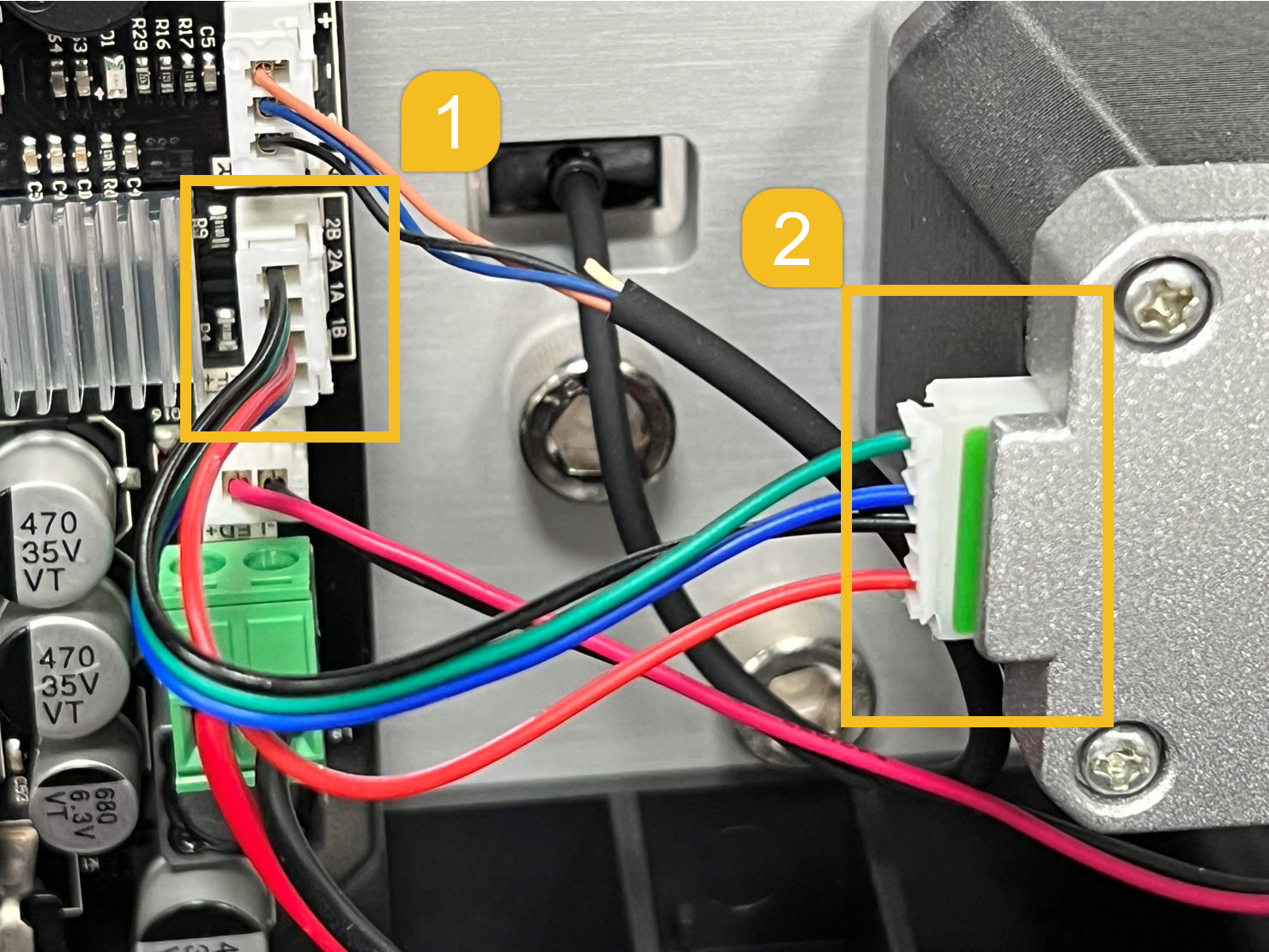

- Unplug both ends of the motor connector.

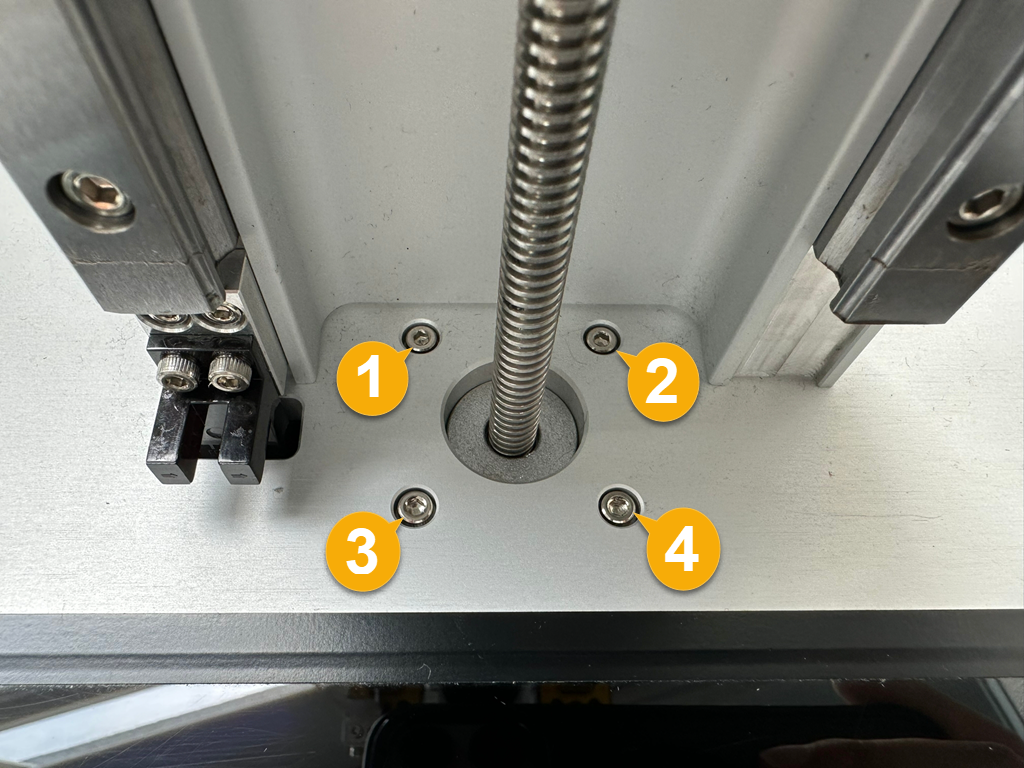

- Loosen the 4 screws on the platform that is attached to the motor.
Removing the Z-Axis
- Take the Z-axis out of the printer.
2. Installing new Z-axis
Placing the New Z-Axis
- Put the new Z-axis in position inside the printer.
Securing Motor Components
- Tighten the 4 screws on the platform that is attached to the motor.
- Attach the LED connector to the mainboard.
- Attach the motor connector to the motor.
Reassembling Bottom Components
- Reinstall the bottom case securely and turn the printer upright.
- Remove the tape for the sliding guide.
Securing T-Plate
- Put the T-plate and turn the new lead screw clockwise to secure it in place.
- Tighten the 4 screws and secure the T-plate to the sliding guides.
Final Steps
- Install the metal block located on top.
- Install the building plate, resin vat, and UV cover.
Verify the functionality of new z-axis
- Proceed with z-axis calibration to see if the z-asix moves normally.
Once you complete the above examination, if the issue still persists please reach out to our customer support team for further assistance. When reaching out to us, please also provide us with photos/video of both the Motor Connections and a video for Z-axis movement.
Contact Support
By following the above instructions, you can install a new Z-axis for your Sonic Mighty 4K. If you find any issues, feel free to reach out to Phrozen Support or your Authorized Reseller for further assistance. When contacting Phrozen Support, kindly send some photos or videos illustrating the issue.
