Tools Required

• 1.5mm Allen wrench
• New Hotend


Replacement Step

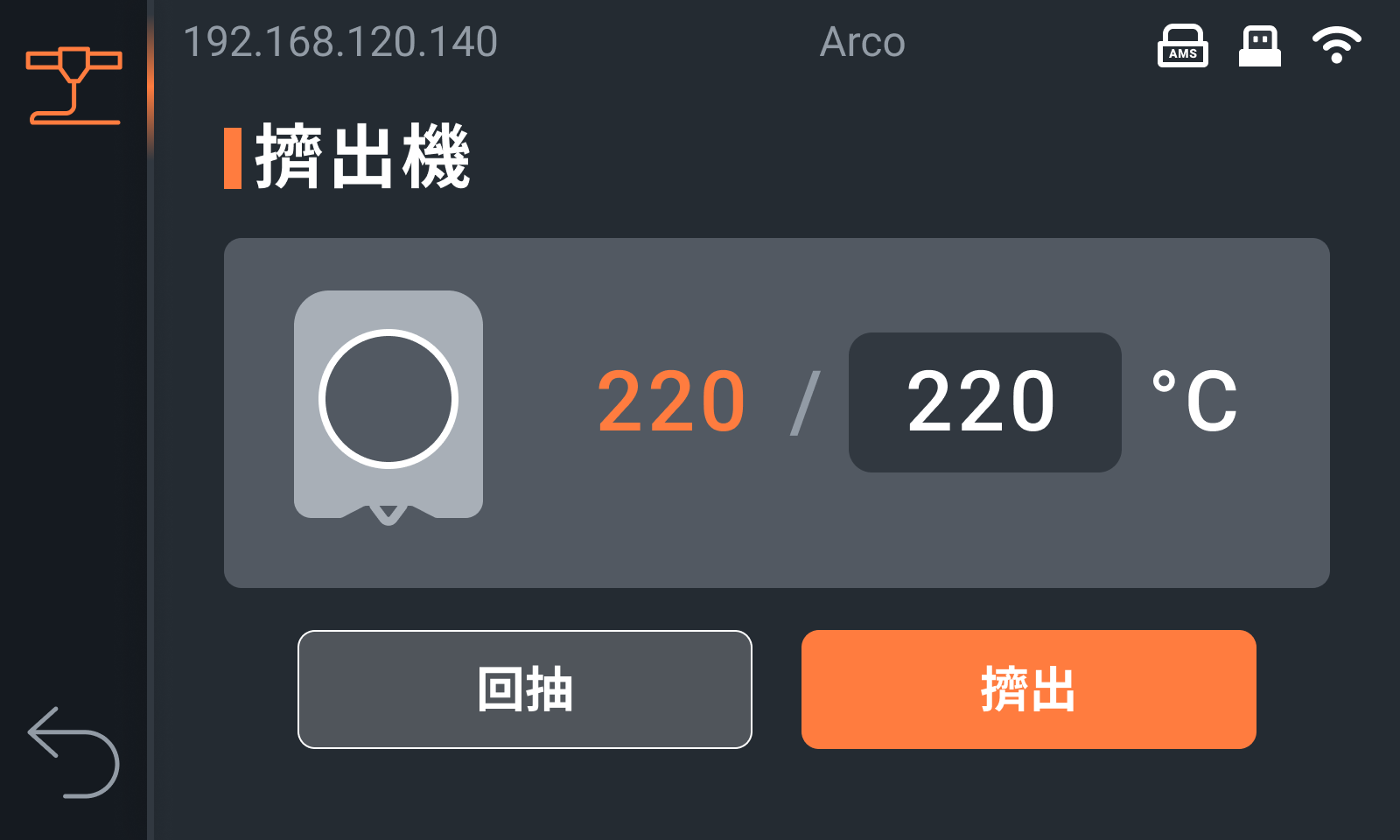

1. Heat up the nozzle and use the extruder control function to retract the filament.

2. Set the temperature back to room temperature.

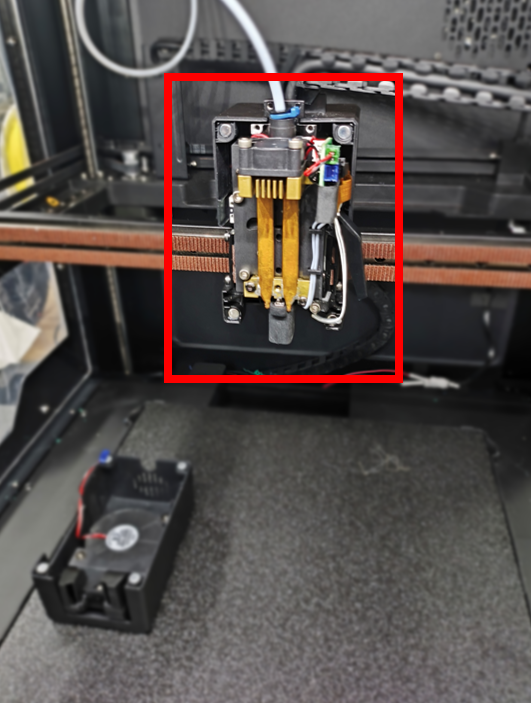

3. Turn off the machine and remove the magnetic front cover along with its connected ribbon cable.

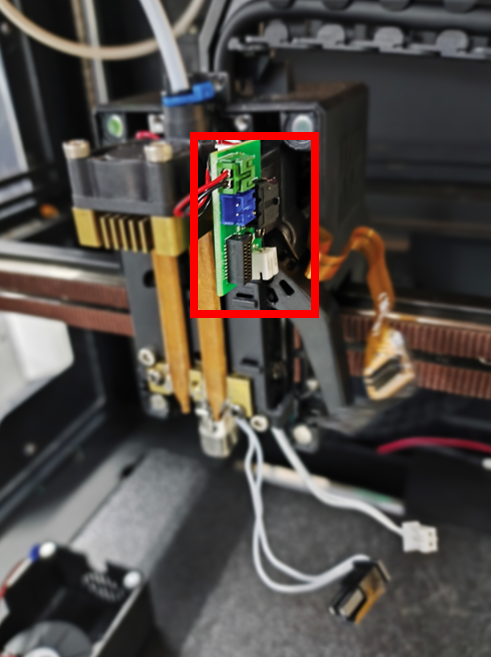

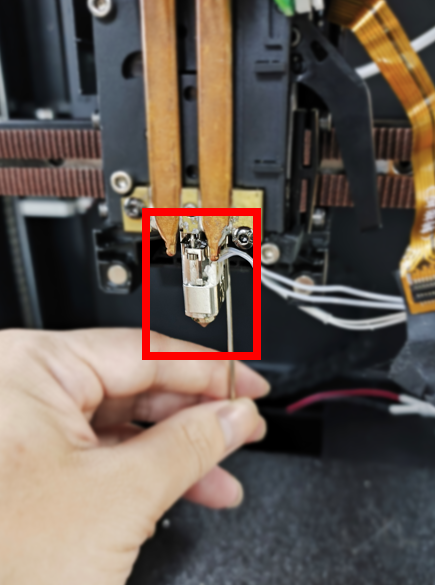

4. Next, disconnect the black and white cables connected to the hotend.

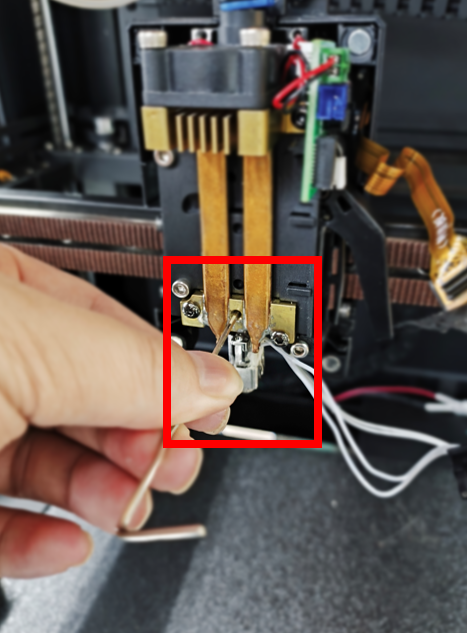

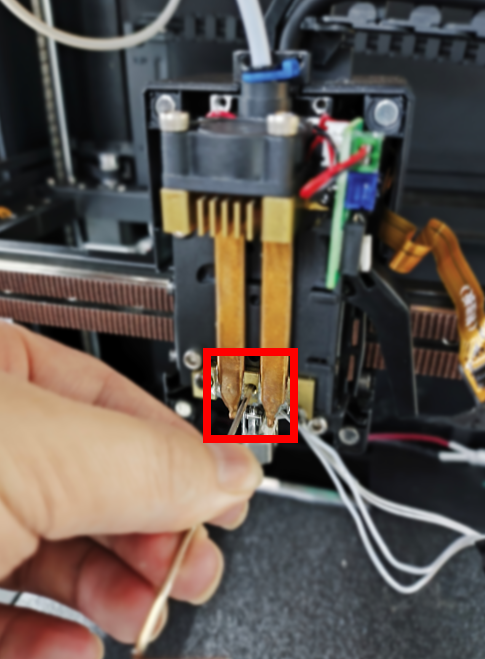

5. Use a 1.5mm hex wrench to remove the three screws securing the hotend.

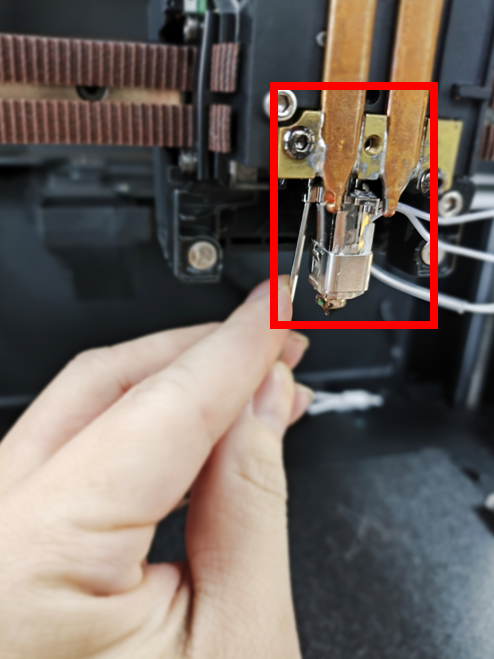

6. Loosen the front-facing hotend screw.

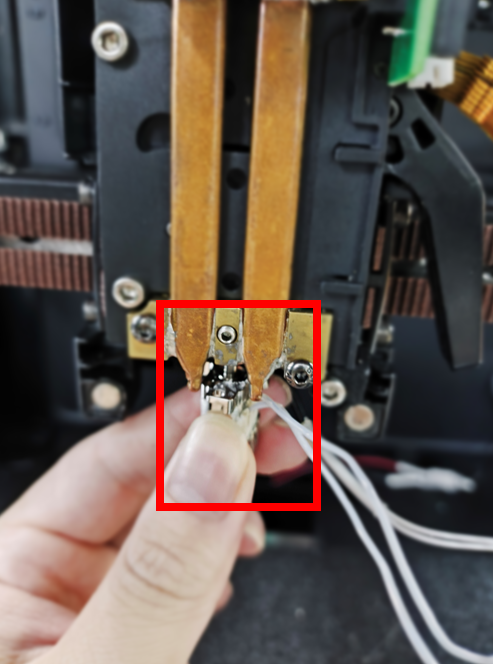

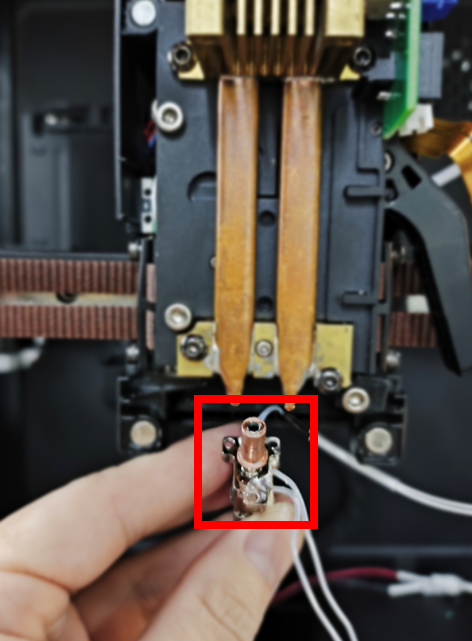

7. Hold the hotend clip and gently twist and pull downward to remove the hotend.

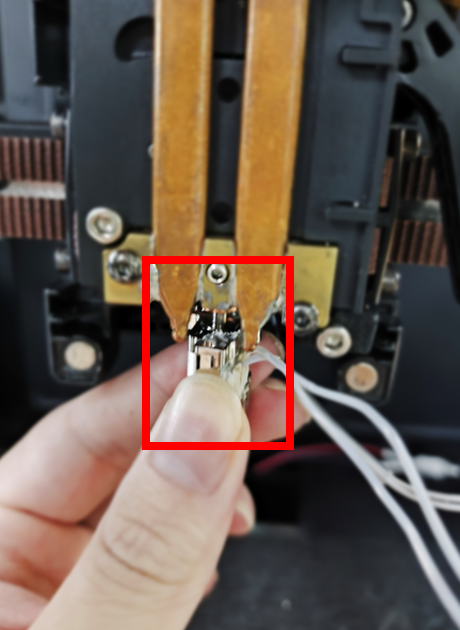

8. Insert the replacement hotend into the extruder, making sure the pointed end of the triangular structure faces forward.

9. Reinstall the three securing screws.

10. Tighten the front-facing screw.

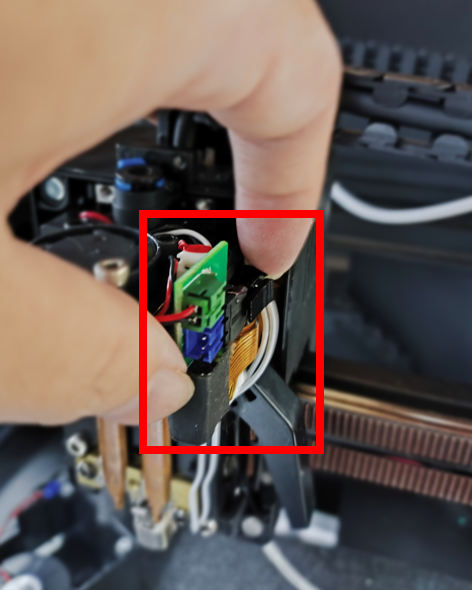

11. Reconnect the previously removed cables.

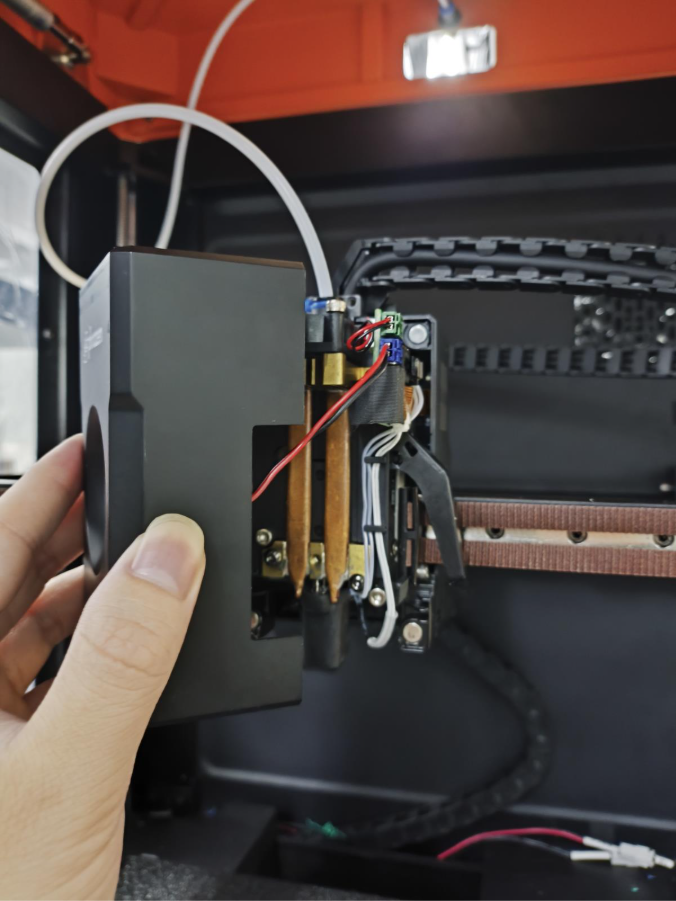

12. Finally, reattach the magnetic front cover and its ribbon cable.

Done!
