[Cure Mega S] Replacing the Sensor

When the sensor of your Cure Mega S is broken, replacing it is crucial to restore full functionality. In this article, we’ll walk you through a detailed, step-by-step guide on how to replace the sensor, ensuring that your device operates smoothly and efficiently once again.

1. Removing the Old Sensor

 Power down and prepare

• Turn off the curing station and unplug the power cord.
• Remove the turntable.
• Lay the curing station on its back.

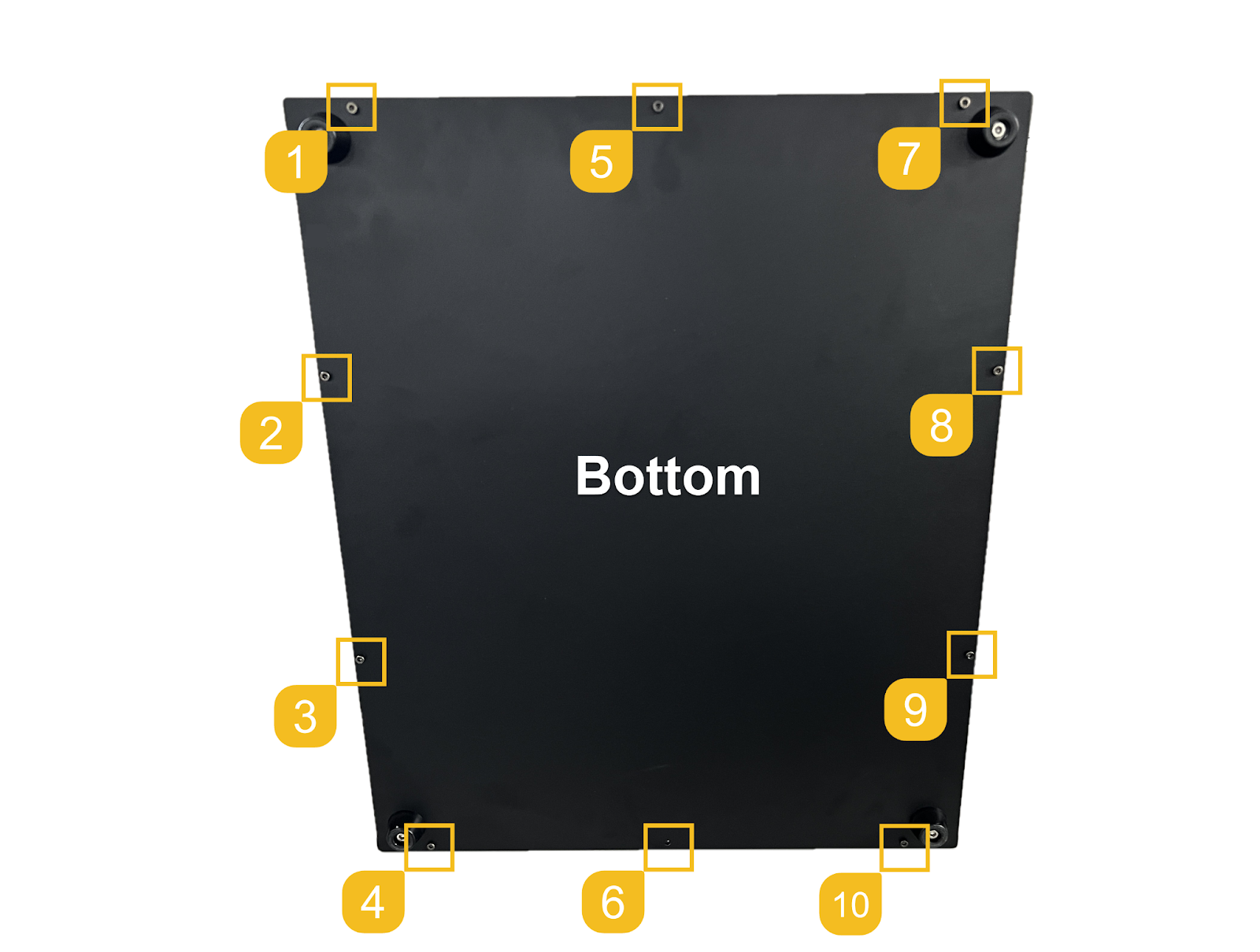

• Use an Allen Wrench 2.5mm to loosen the 10 screws and open the bottom case.

Remove the old sensor

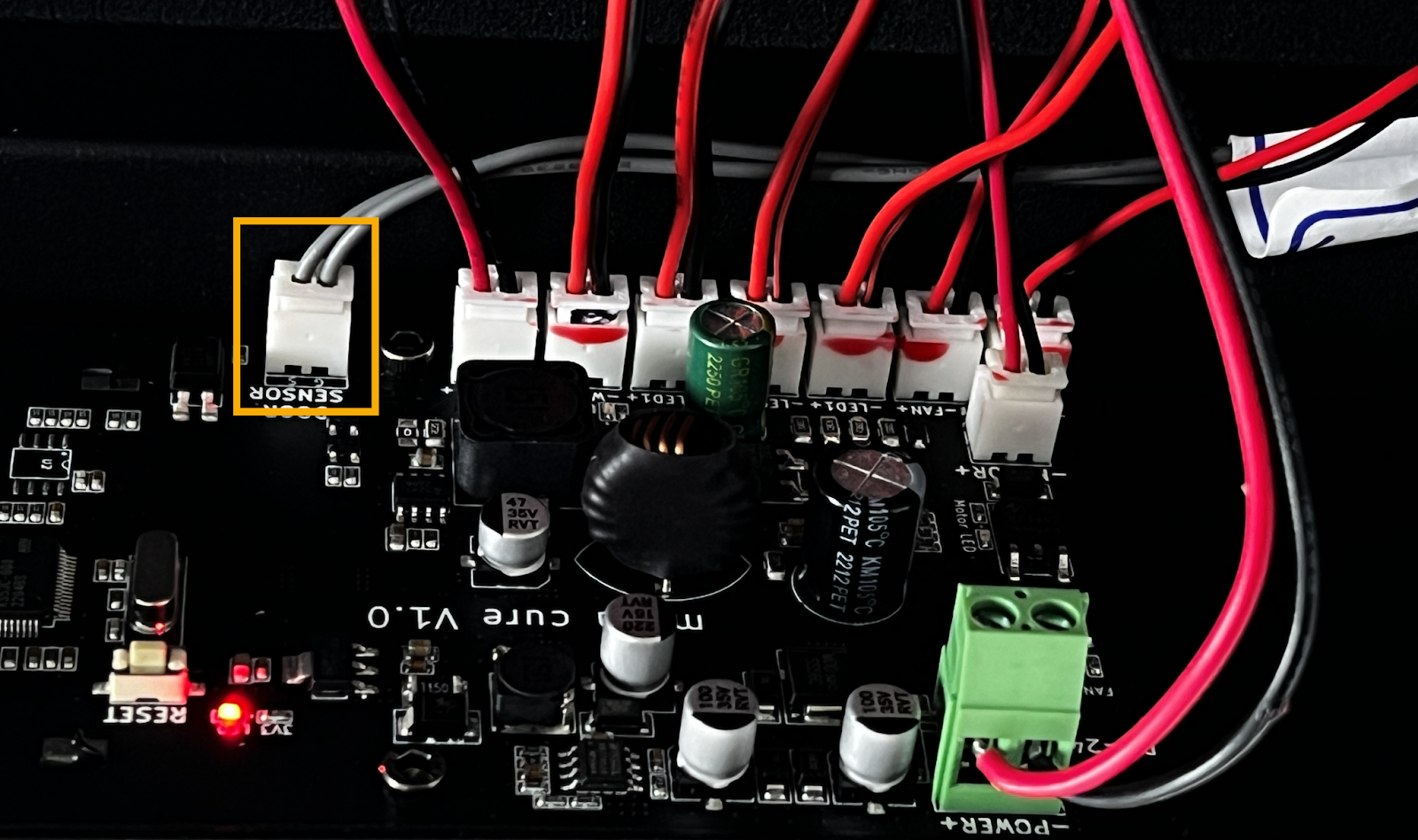

• Disconnect the sensor cable from the mainboard.

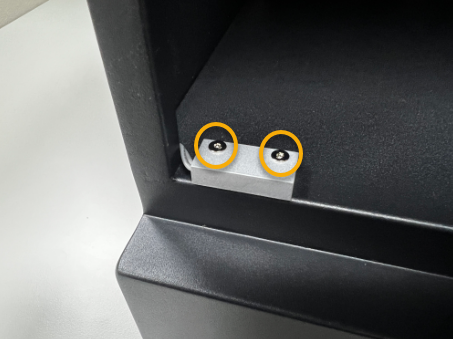

• Unscrew the 2 screws holding the sensor.

• Remove the old sensor cable from the curing station.

2. Installing the New Sensor

Installing the new sensor

• Place the new sensor in its designated place.
• Reconnect the new sensor cable to the mainboard.
• Tighten the 10 screws and install the bottom case.

Verifying the new sensor’s functionality

• Plug in the power cord and turn on the curing station.
• Install the turntable.
• Check if the new sensor works normally.

Contact Support

By following the above instructions, you can easily replace the sensor of your Cure Mega S Station. If you find any issues, feel free to reach out to Phrozen Support or your Authorized Reseller for further assistance. When contacting Phrozen Support, kindly send some photos or videos illustrating the issue.
