[Cure Mega S] Replacing the Motor

If the motor of your Cure Mega S station stops functioning, replacing it becomes essential to ensure the continued efficiency of your equipment. In this article, we'll provide you with a comprehensive, step-by-step guide on how to safely and effectively replace the motor.

1. Removing the Old Motor

 Power down and prepare

• Turn off the curing station and unplug the power cord.
• Remove the turntable.
• Lay the curing station on its back.
• Use an Allen Wrench (size 2.5) to loosen the 10 screws and open the bottom case.

Remove the old motor

• Disconnect the motor cable from the mainboard.

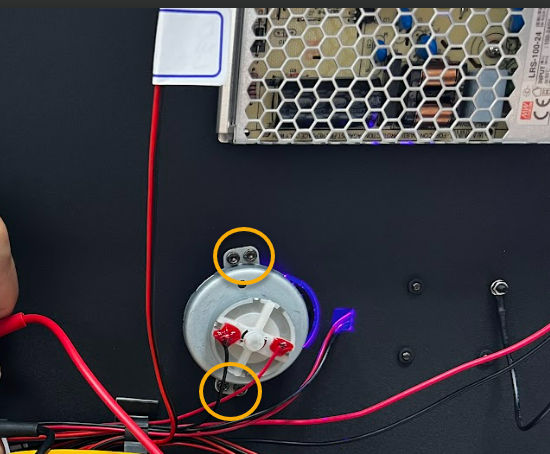

• Loosen the 4 screws securing the old motor on the case.
• Remove the old motor and wires from the curing station.

2. Installing the New Motor

Install the new motor

• Place the new motor in its designed position and secure it with 4 screws.
• Connect the new motor cable to the mainboard.
• Tighten the 10 screws and install the bottom case.

Verifying the new motor’s functionality

• Plug in the power cord and turn on the curing station.
• Install the turntable.
• Check if the motor works normally.

Contact Support

By following the above instructions, you can easily replace the motor of your Cure Mega S. If you find any issues, feel free to reach out to Phrozen Support or your Authorized Reseller for further assistance. When contacting Phrozen Support, kindly send some photos or videos illustrating the issue.
