[Cure Mega S] Replacing the Mainboard

When the mainboard of your Cure Mega S malfunctions, replacing it is crucial to restore full functionality. In this article, we’ll walk you through a detailed, step-by-step guide on how to replace the mainboard, ensuring that your device operates smoothly and efficiently once again.

1. Removing the Old Mainboard

 Power down and prepare

• Turn off the curing station and unplug the power cord.
• Remove the turntable.
• Lay the curing station on its back.

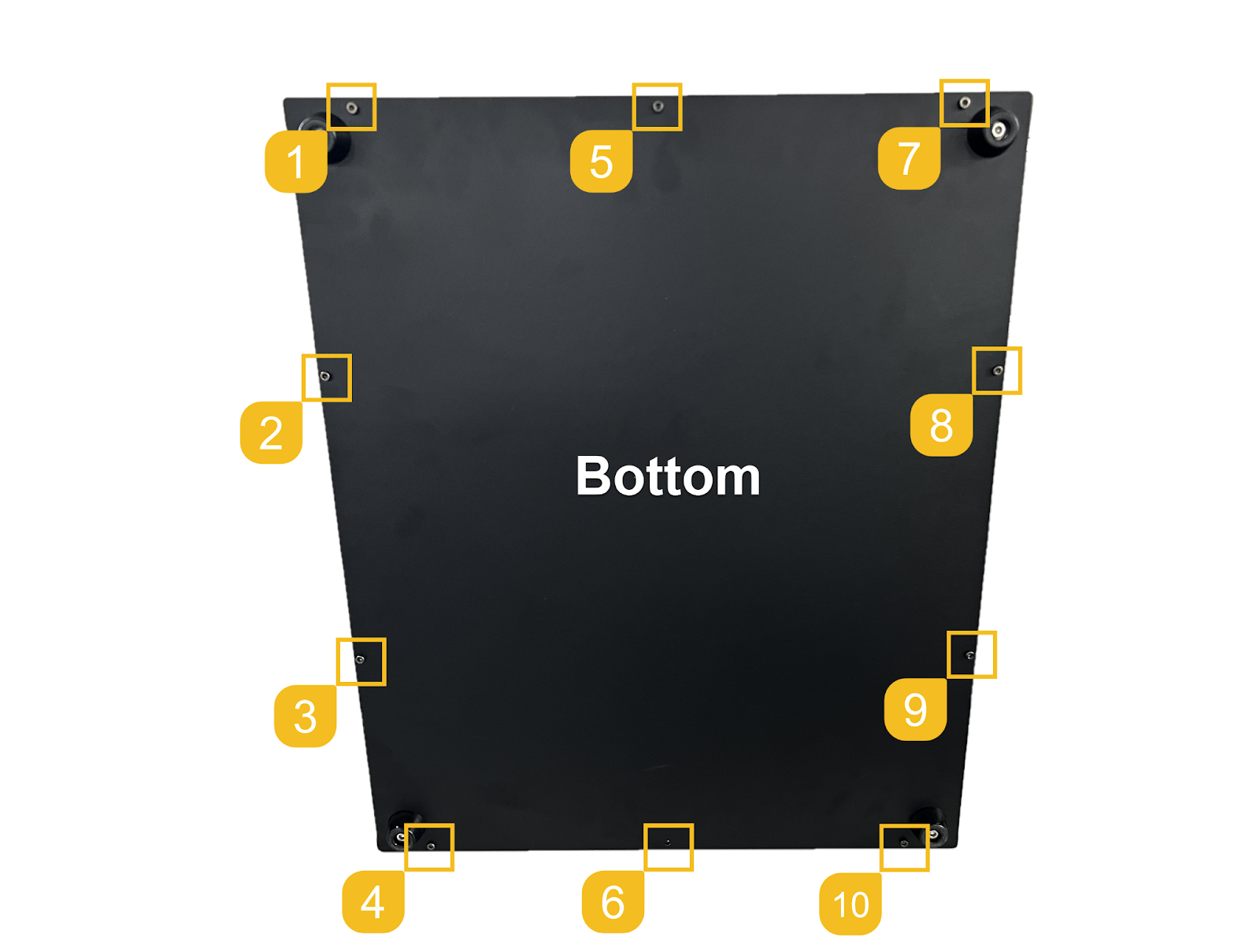

• Use an Allen Wrench 2.5mm to loosen the 10 screws and open the bottom case.

Remove the old mainboard

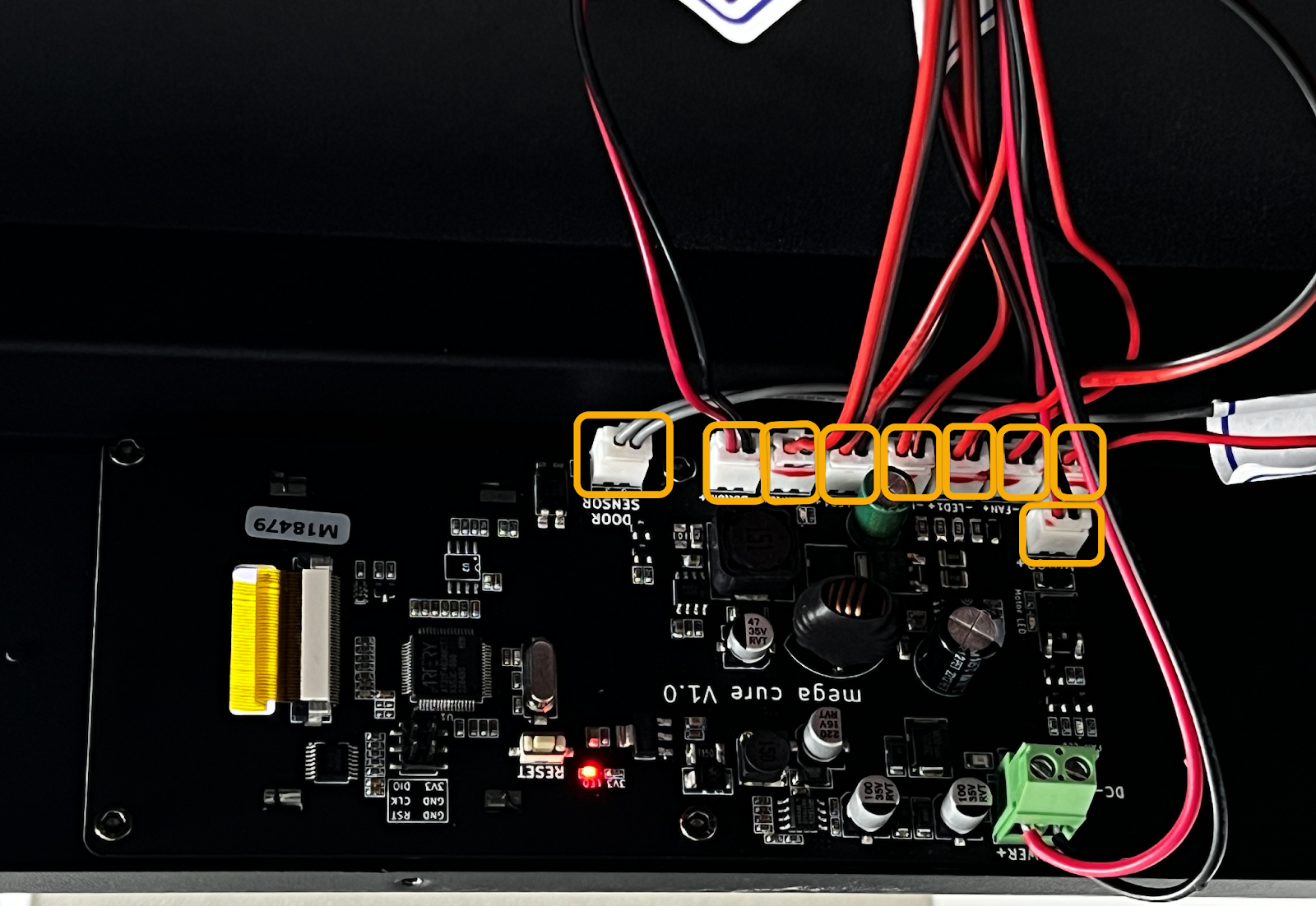

• Disconnect all the 9 cables connecting to the mainboard.

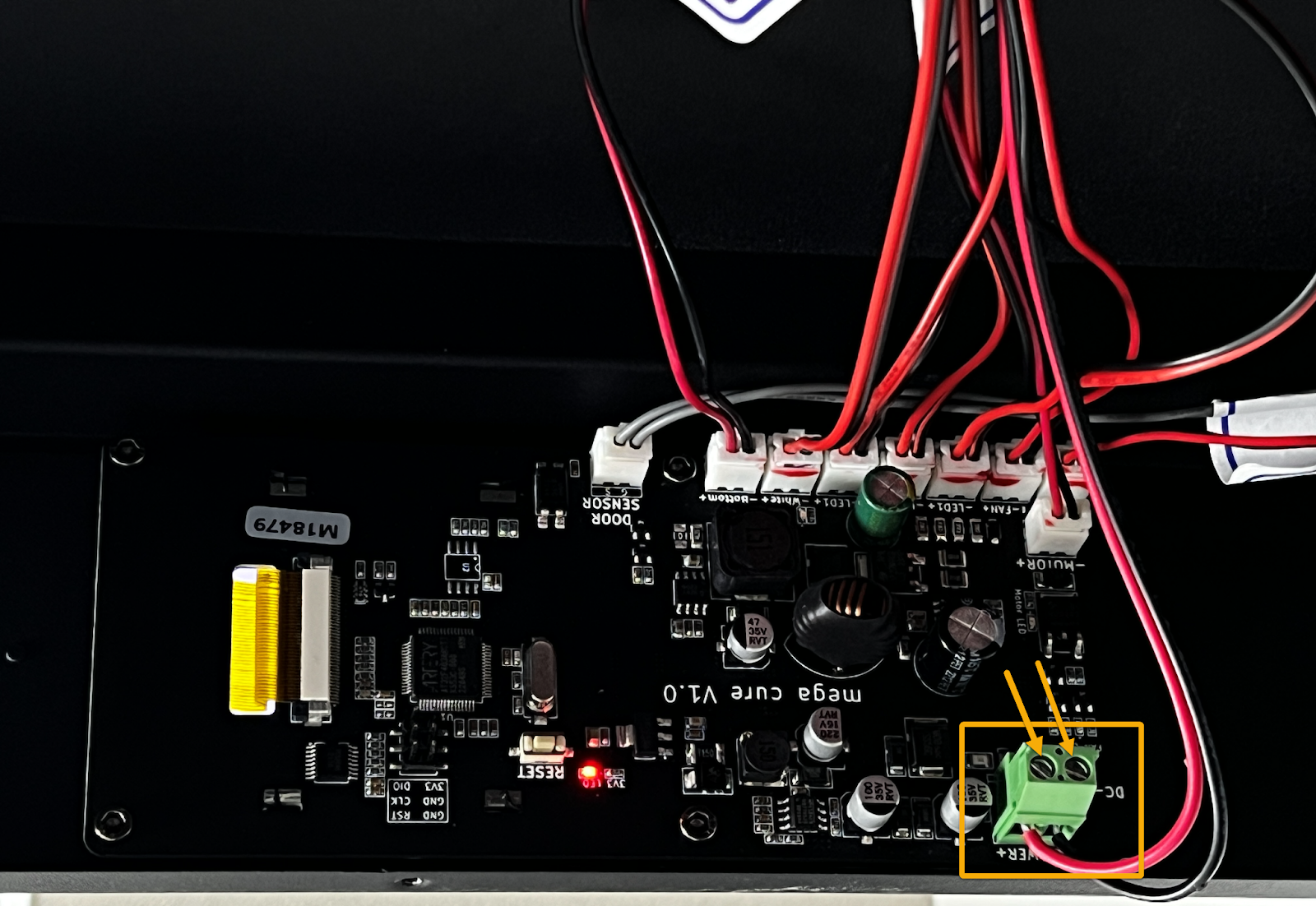

• Use a slotted driver to disconnect the black and red wires from the green power terminal.

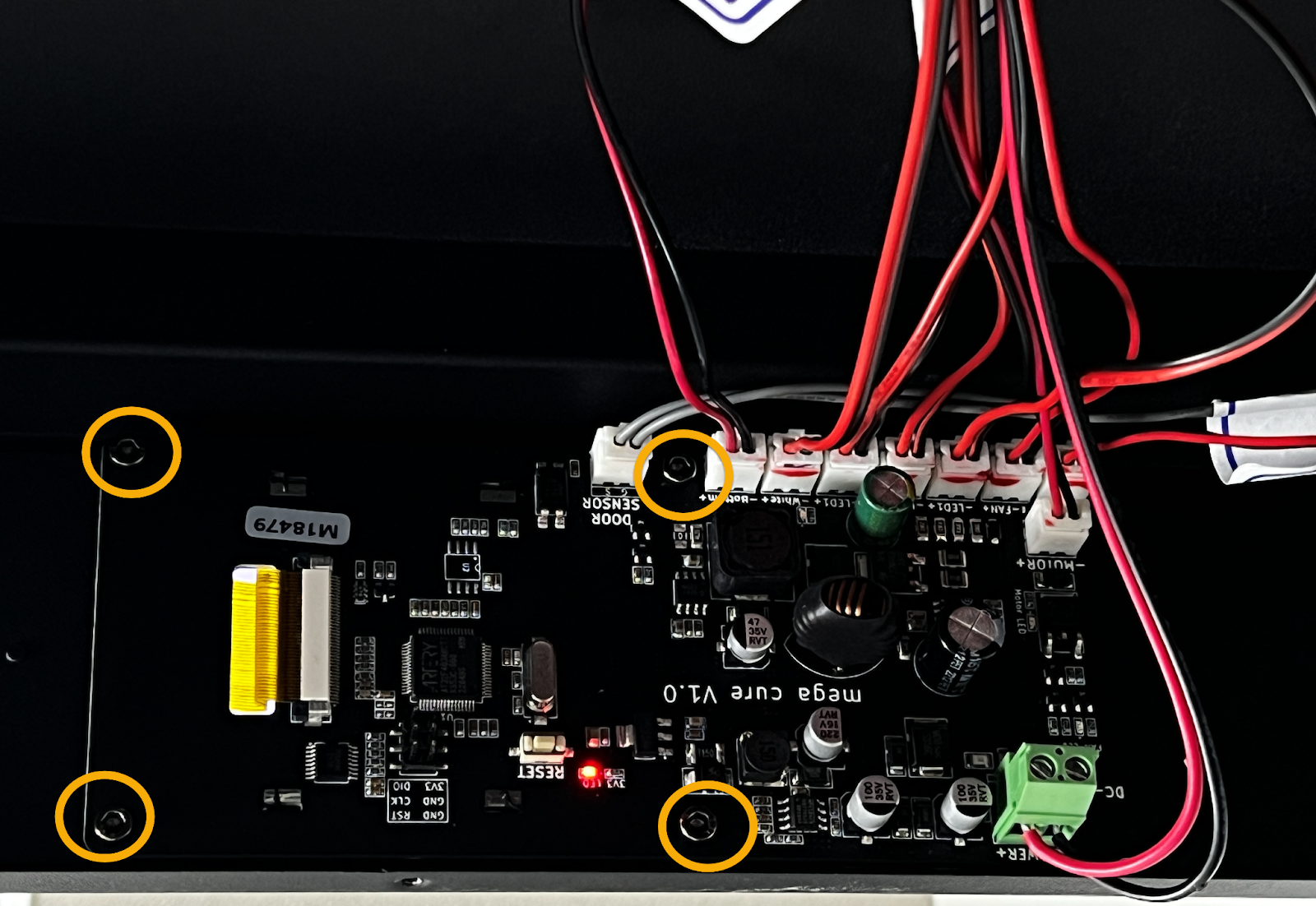

• Loosen the 4 screws holding the mainboard on the curing station’s case.

• Remove the old mainboard from the curing station.

2. Installing the New Mainboard

Installing the new mainboard

• Place the new mainboard in its designated position.
• Tighten the 4 screws to secure the new mainboard.
• Connect all the cables and wires to the new mainboard.
• Tighten the 10 screws and install the bottom case.

Verifying the new mainboard’s functionality

• Plug in the power cord and turn on the curing station.
• Install the turntable.
• Check if the new mainboard works normally.

Contact Support

By following the above instructions, you can easily replace the mainboard of your Cure Mega S Station. If you find any issues, feel free to reach out to Phrozen Support or your Authorized Reseller for further assistance. When contacting Phrozen Support, kindly send some photos or videos illustrating the issue.
