[Cure Mega S] Replacing the UV Lights

When a UV Light of your Cure Mega S is broken, replacing it is crucial to restore full functionality. In this article, we’ll walk you through a detailed, step-by-step guide on how to replace the LED light, ensuring that your device operates smoothly and efficiently once again.

1. Removing the Old UV Light

 Power down and prepare

• Turn off the curing station and unplug the power cord.
• Remove the turntable.
• Lay the curing station on its back.

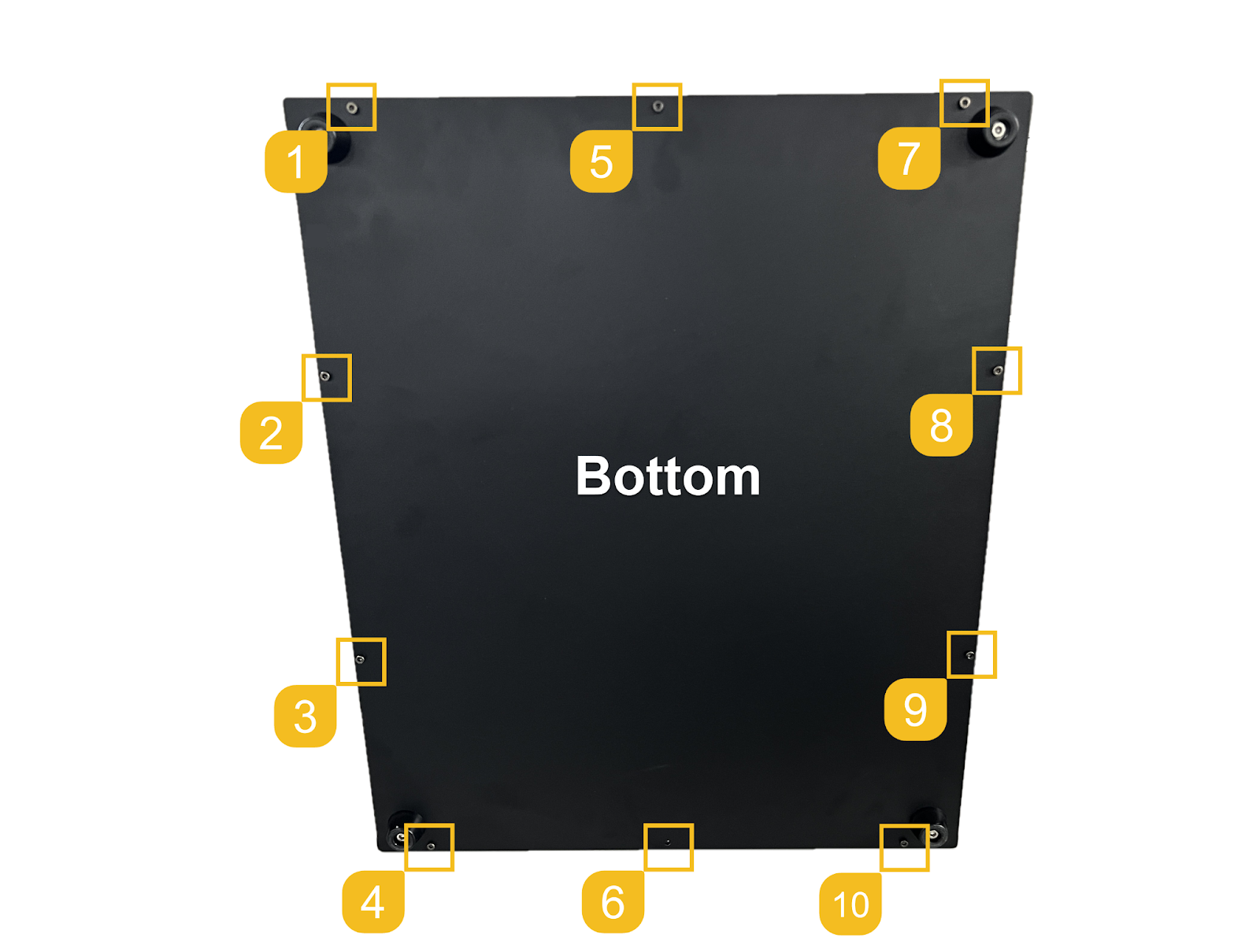

• Use an Allen Wrench 2.5mm to loosen the 10 screws and open the bottom case.

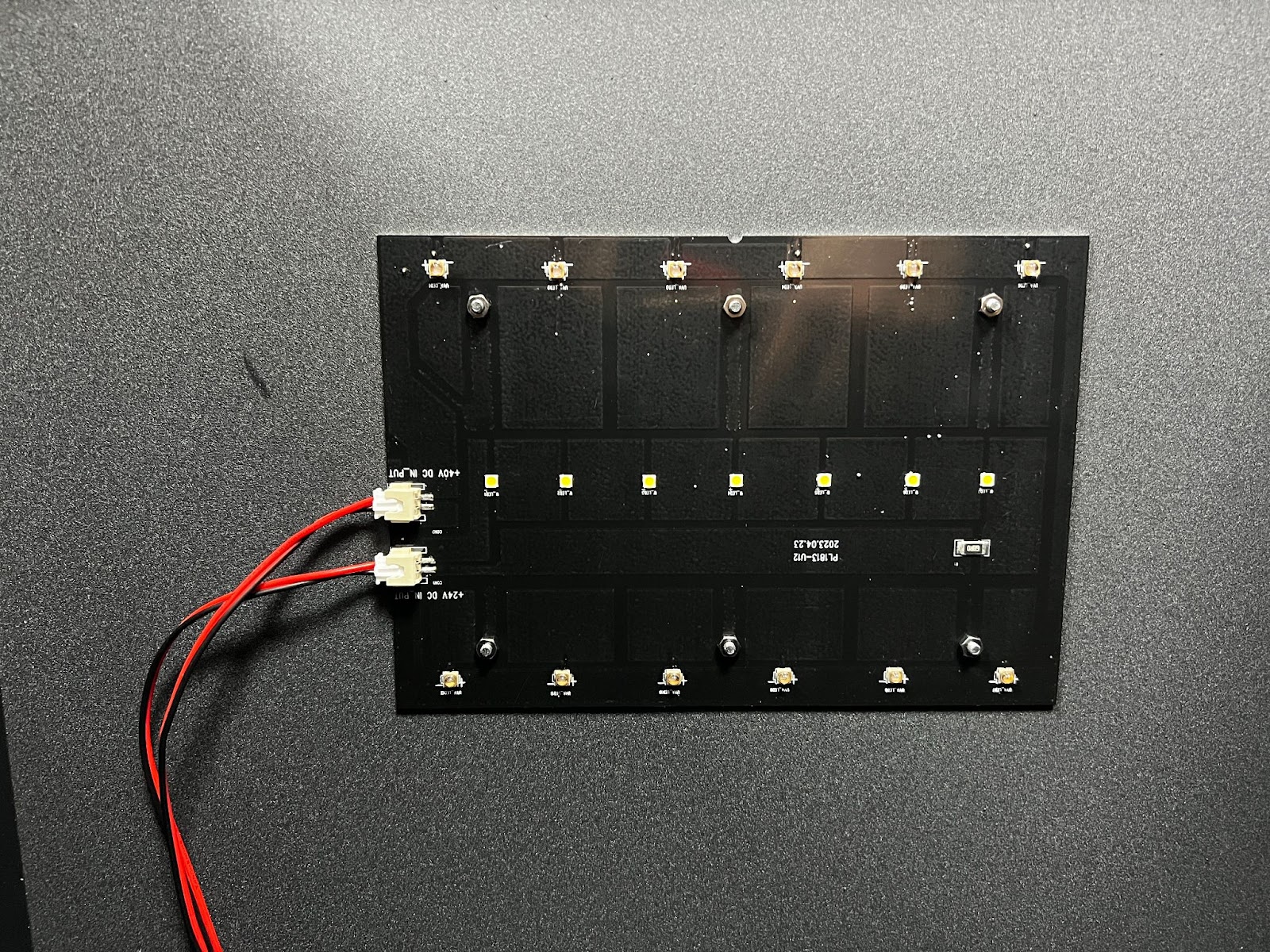

Remove the old UV light array on top

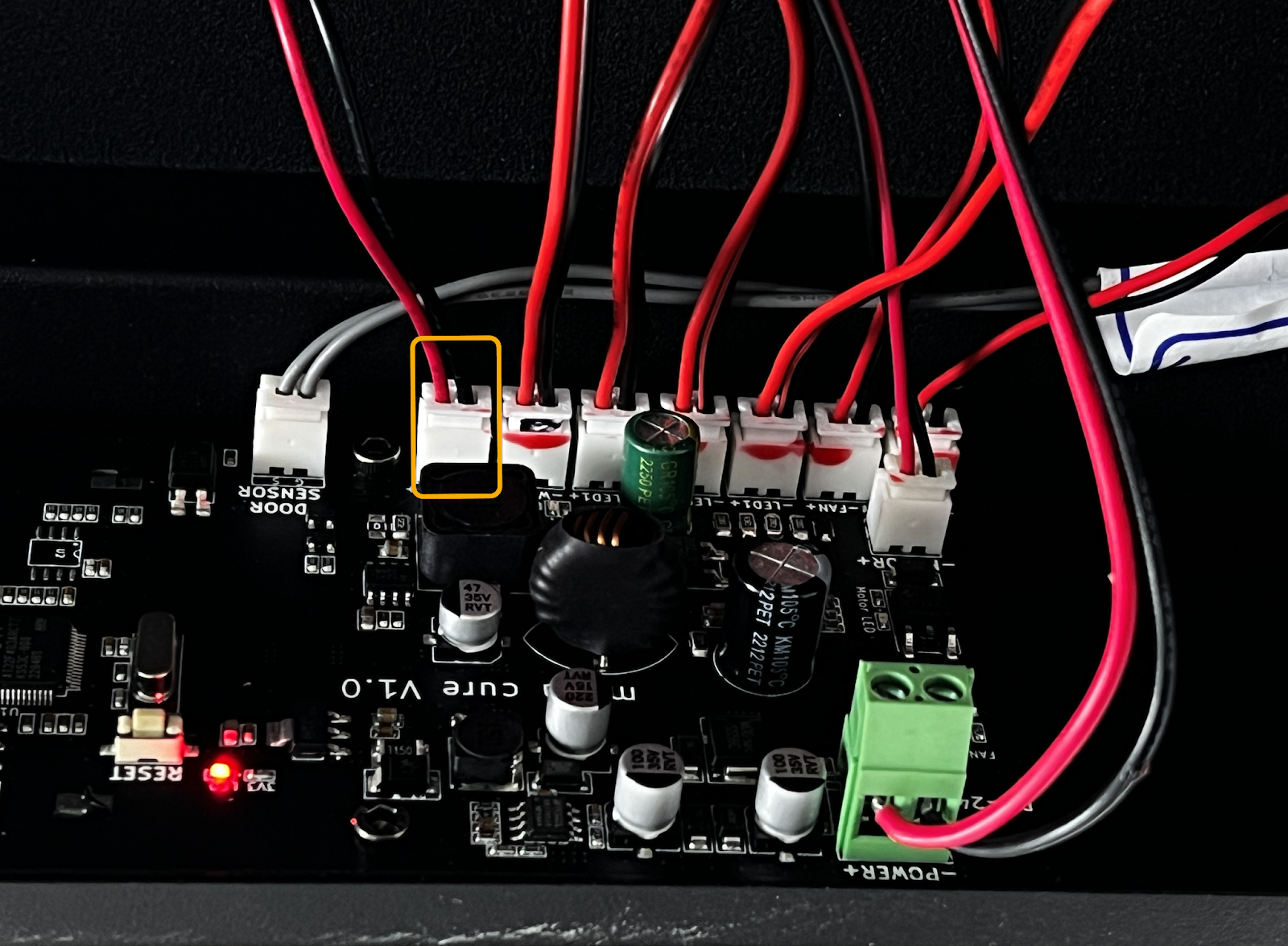

• Unplug the cables connecting to the Top LED array and the mainboard.

• Loosen the 6 nuts holding the LED array and remove it.

Remove the old LED array on the 2 sides

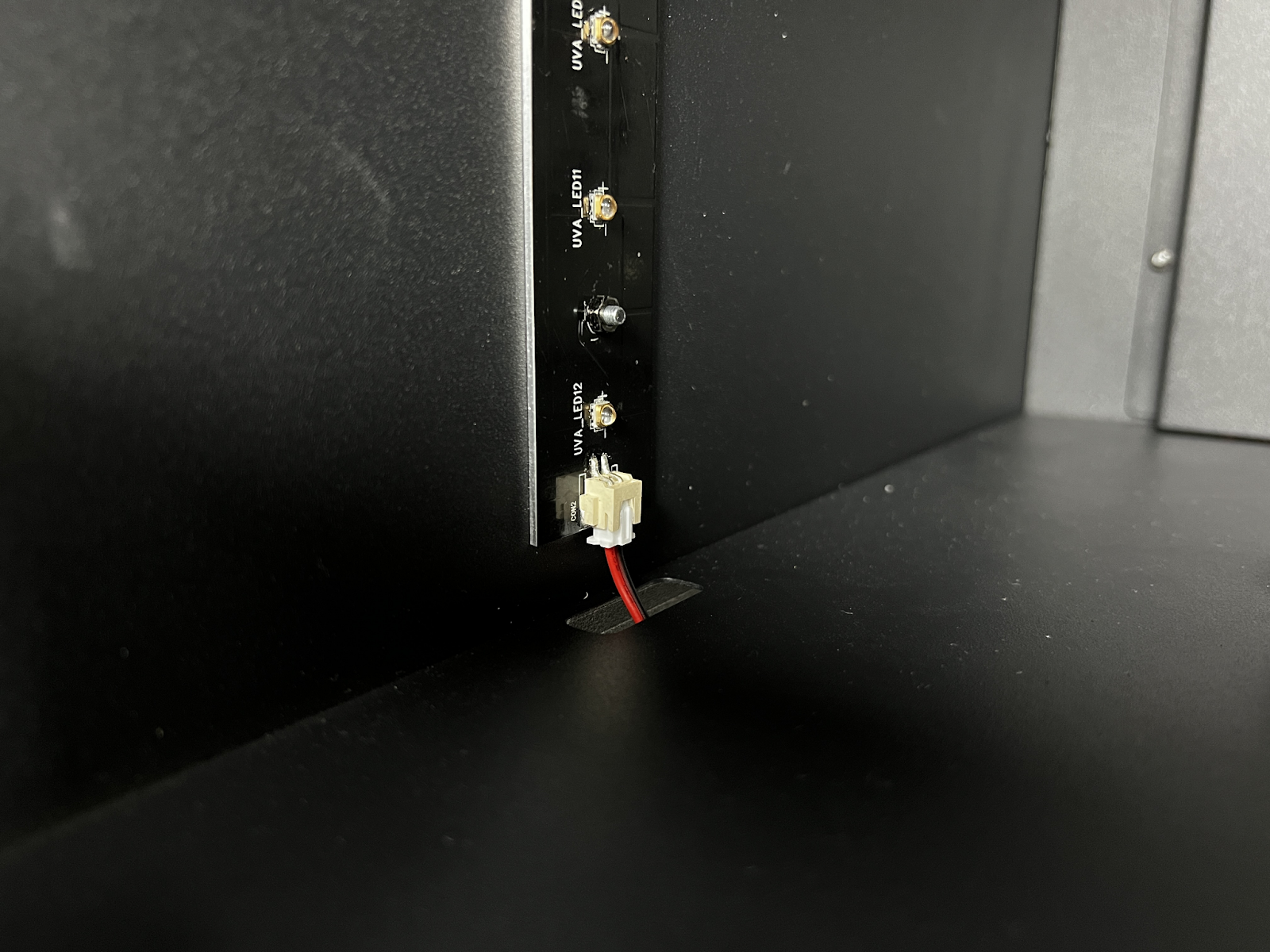

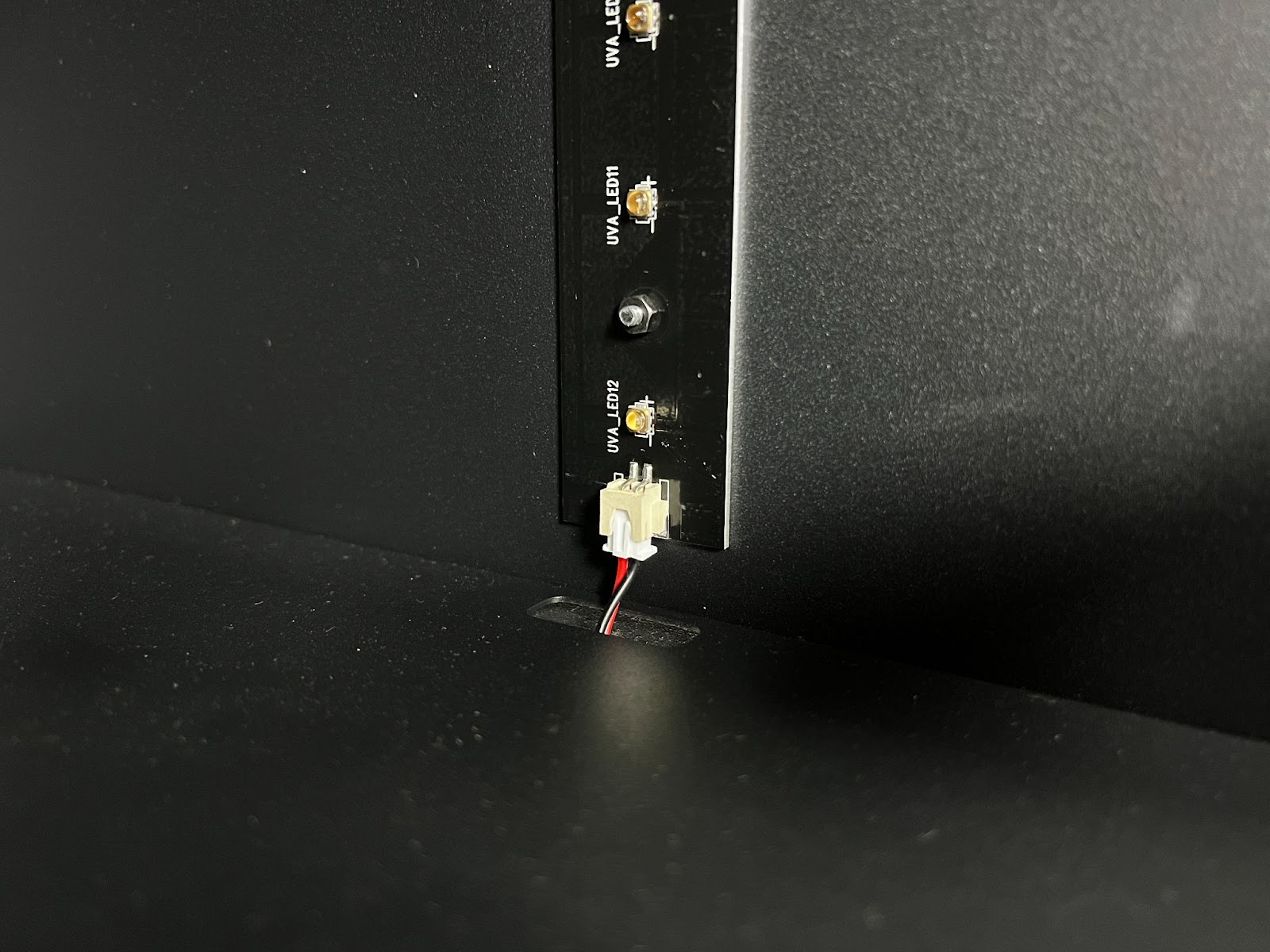

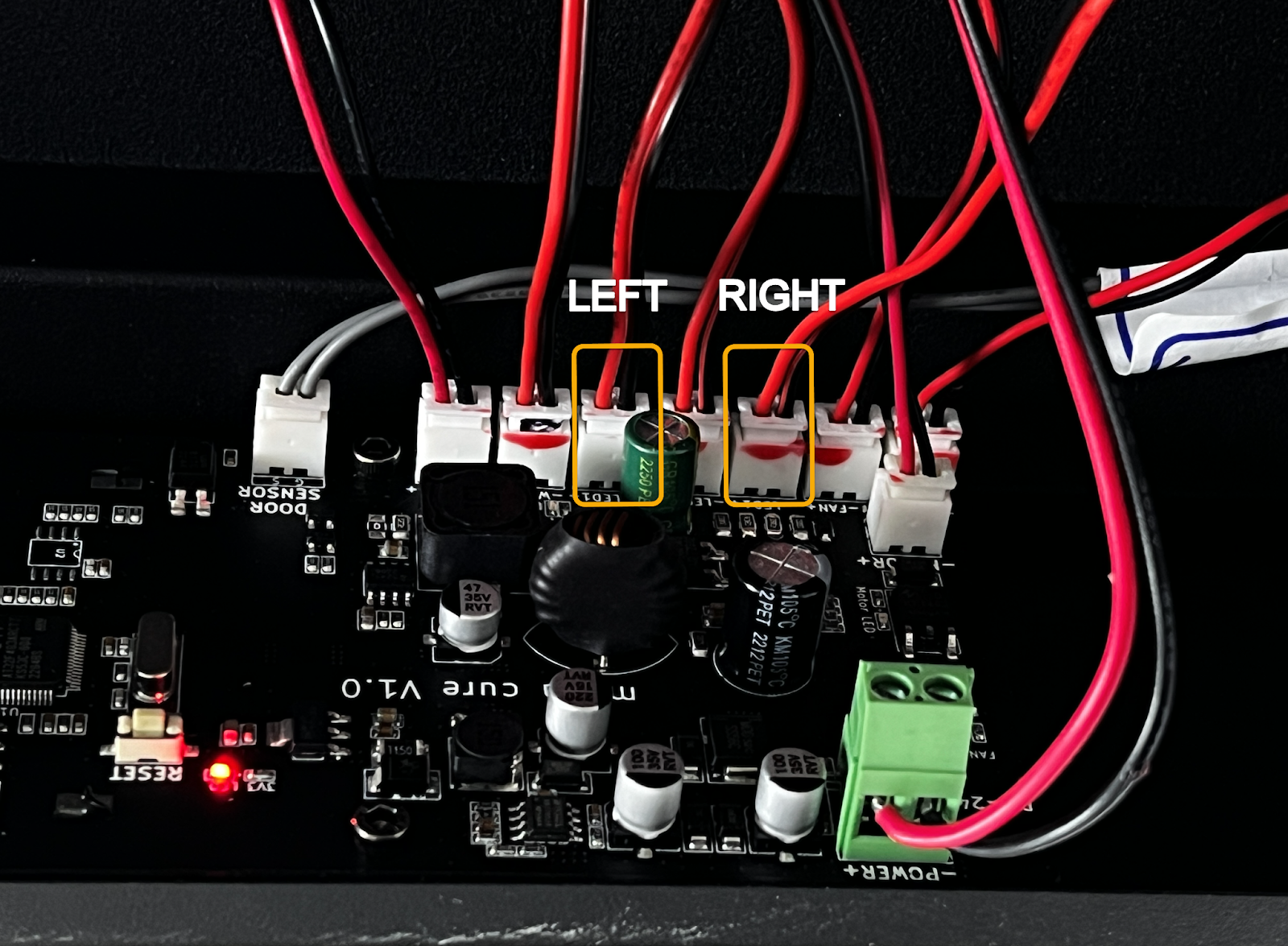

• Unplug the cables connecting to the side LED array (left/right) and the mainboard.

• Loosen the nuts holding the broken LED array and remove it.

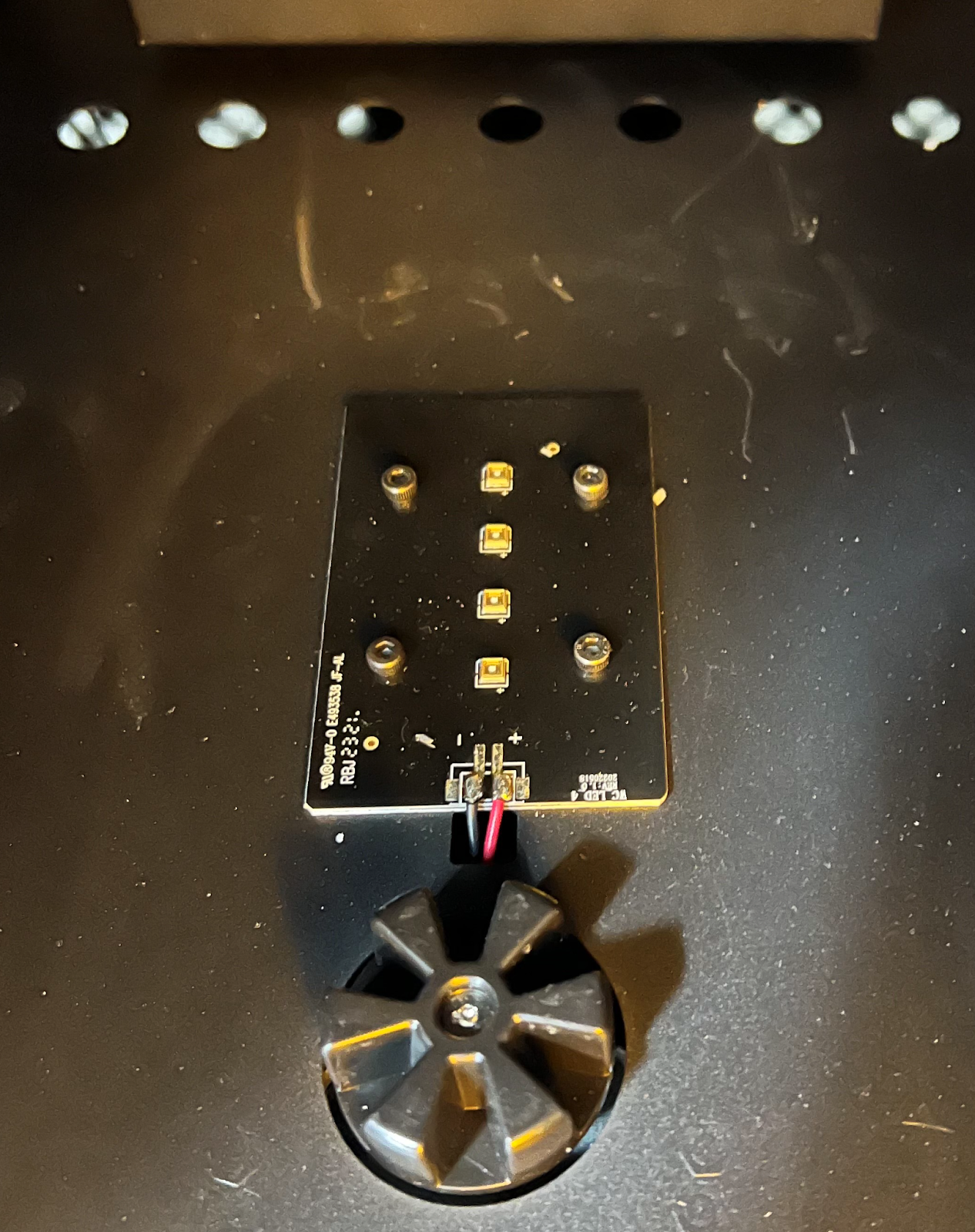

Remove the old LED array at the bottom

• Unplug the wires and cable connecting to the bottom LED array and the mainboard.

• Loosen the nuts holding the bottom LED array and remove it.

2. Installing the New LED

Installing the new LED array

• Place the new LED array in its designated position.
• Tighten the nuts to secure the new LED array.
• Reseating the cables connecting to the new LED array and the mainboard.
• Tighten the 10 screws to install the bottom case.

Verifying the new LED array’s functionality

• Plug in the power cord and turn on the curing station.
• Install the turntable.
• Check if the new LED array works normally.

Contact Support

By following the above instructions, you can easily replace the LED array of your Cure Mega S Station. If you find any issues, feel free to reach out to Phrozen Support or your Authorized Reseller for further assistance. When contacting Phrozen Support, kindly send some photos or videos illustrating the issue.
