Understanding Resin Profile Settings

Definition of Resin Profile Settings

Resin profile settings encompass the specific parameters used to regulate the printing process in resin printers. These parameters include printing speed, layer thickness, exposure time, and other critical factors. Proper adjustment of these settings is essential as they significantly influence the quality and precision of the printed object. The optimal settings vary depending on the specific resin and the object being printed, requiring careful calibration for the best results.

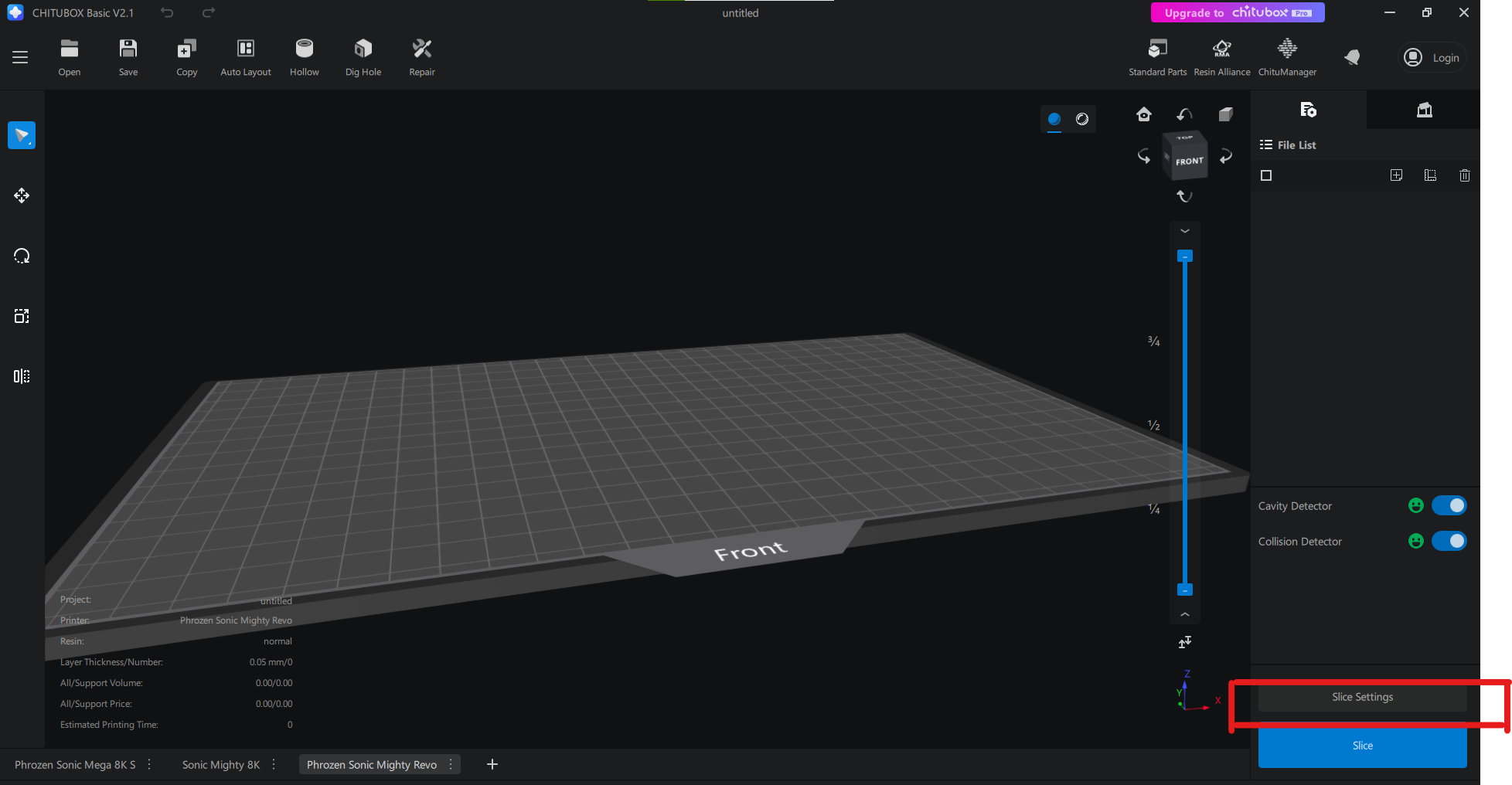

Where to Access Resin Profile Settings in Chitubox

To access and configure resin profile settings in Chitubox, follow these steps:

• Open Chitubox: Launch the Chitubox application on your computer.
• Navigate to Settings: Click on the "Settings" menu.

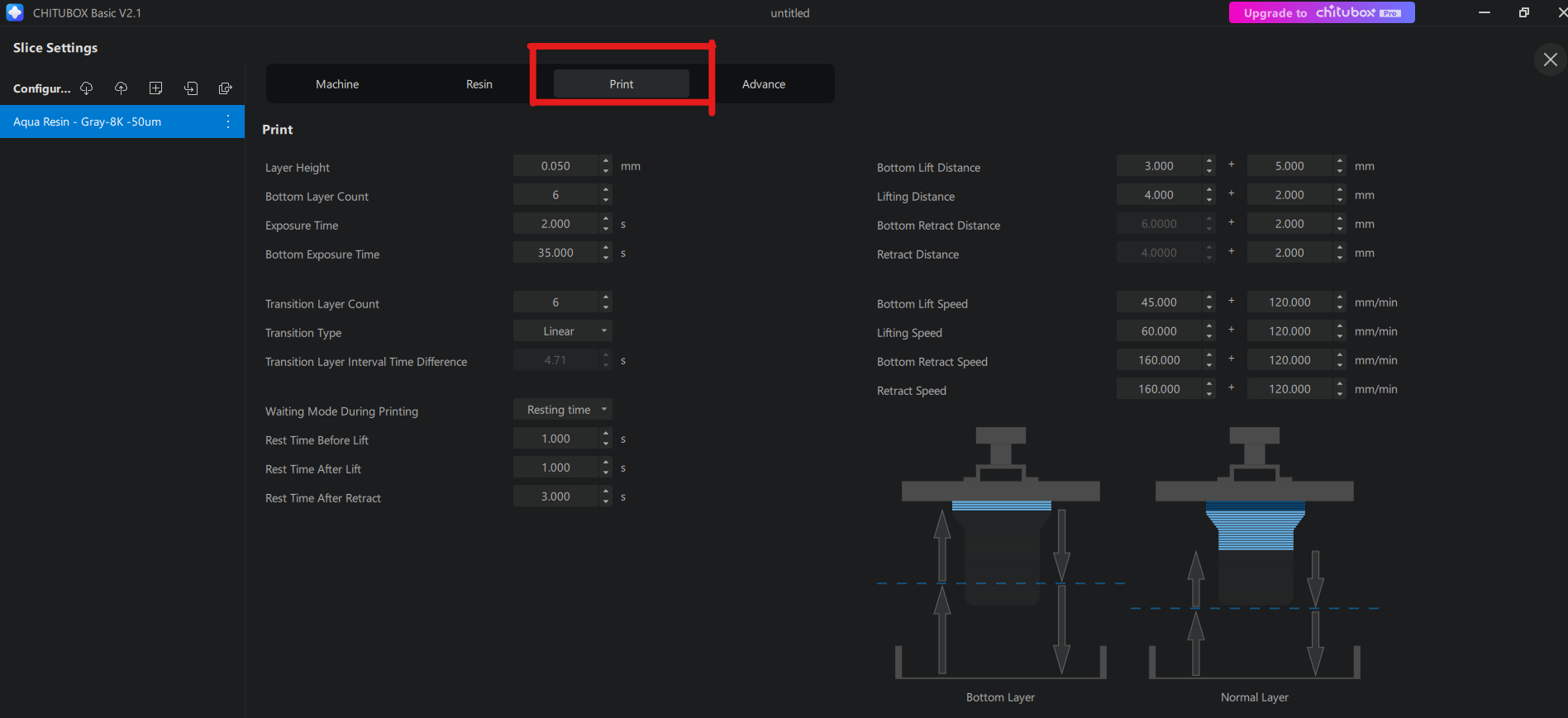

• Select the Print Tab: Within the "Settings" menu, go to the "Print" tab where you can find and adjust the resin profile settings.





Definition of Resin Profile Parameters

Resin profile settings are the specific parameters that control the printing process in resin printers. These parameters include printing speed, layer thickness, exposure time, and more. Proper adjustment of these settings is crucial as they significantly influence the quality and precision of the printed object. The ideal settings vary depending on the specific resin and the object being printed, necessitating careful calibration.



Key Resin Profile Parameters

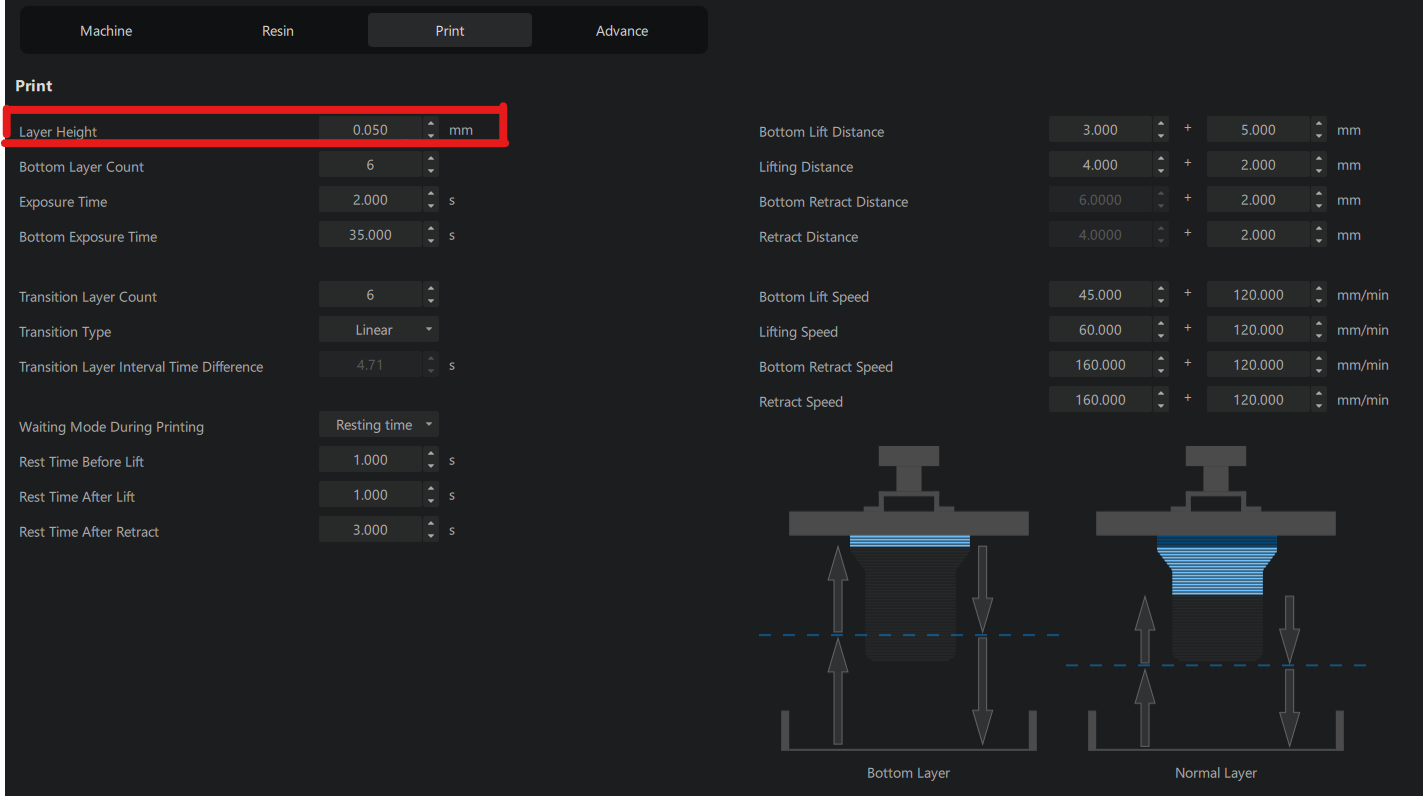

1. Layer Height

Layer height, or Z-axis resolution, determines the thickness of each printed layer. Adjusting this parameter affects the print's detail and duration:

• Higher Layer Height: Prints faster but may lose finer details.
• Lower Layer Height: Takes longer to print but yields finer details.

Carefully setting the layer height based on your project's requirements will help achieve the best balance between print quality and speed.

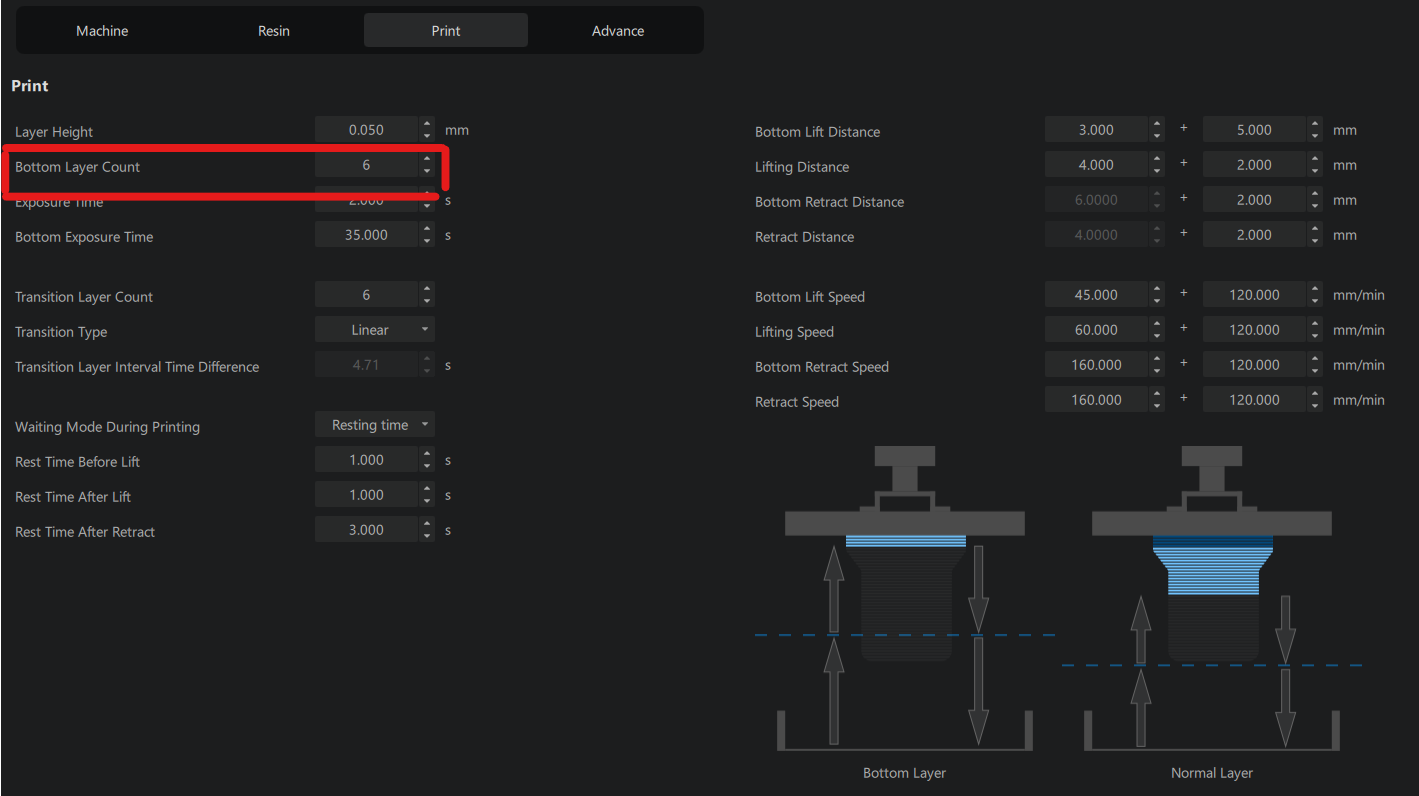

2. Bottom Layer Count

The bottom layer count refers to the number of initial layers that form the base of your print.

• High Count: Provides a more stable base but increases printing time.
• Low Count: Reduces printing time but may result in unstable prints that fail to adhere to the build plate.

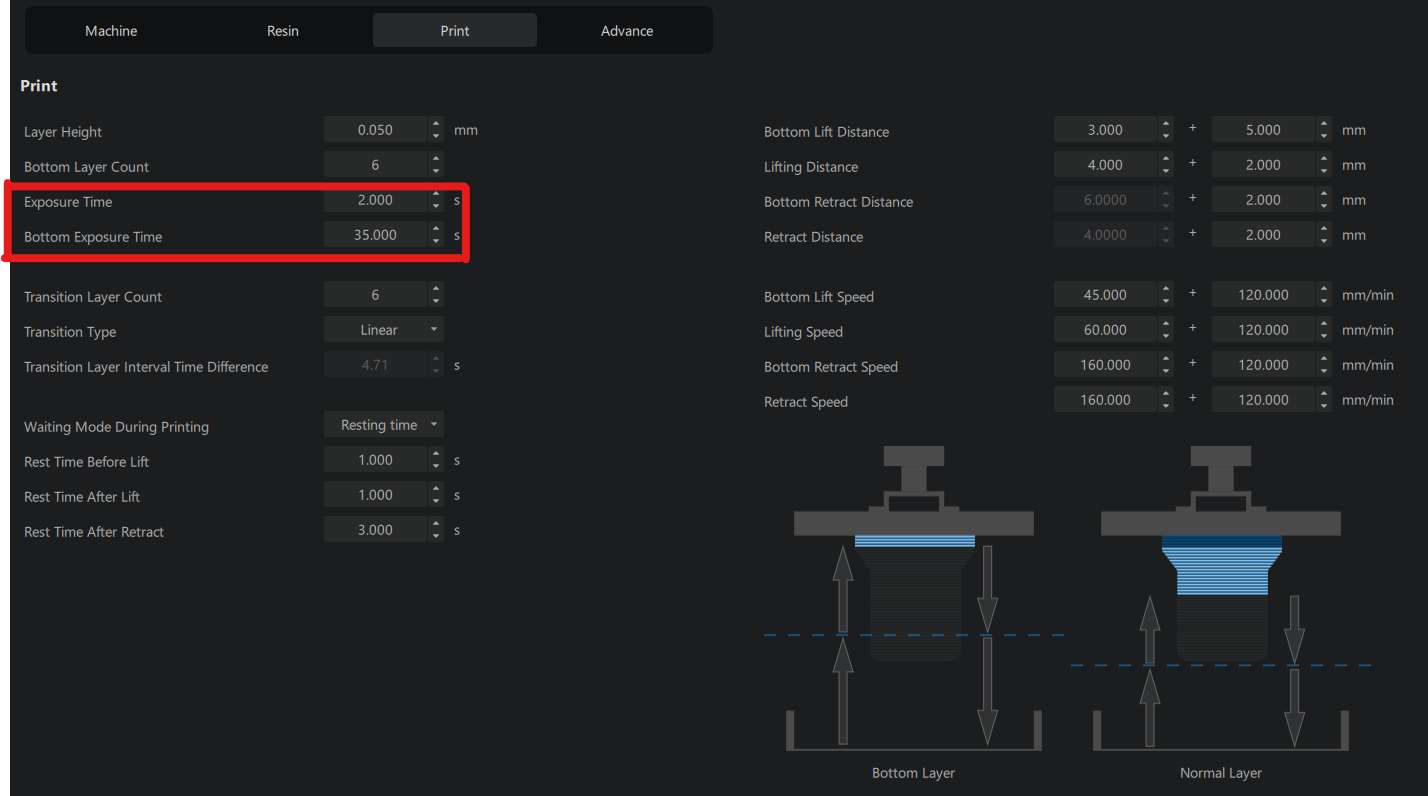

3. Exposure Time

Exposure time is the duration each layer is exposed to UV light to cure.

• High Exposure: Can cause over-curing and loss of detail.
• Low Exposure: May result in incomplete curing and fragile prints.



4. Bottom Exposure Time

Bottom exposure time is the duration for curing the initial layers.

• High Time: Ensures strong adhesion to the build plate but can make removal difficult.
• Low Time: Eases removal but risks prints detaching during printing.

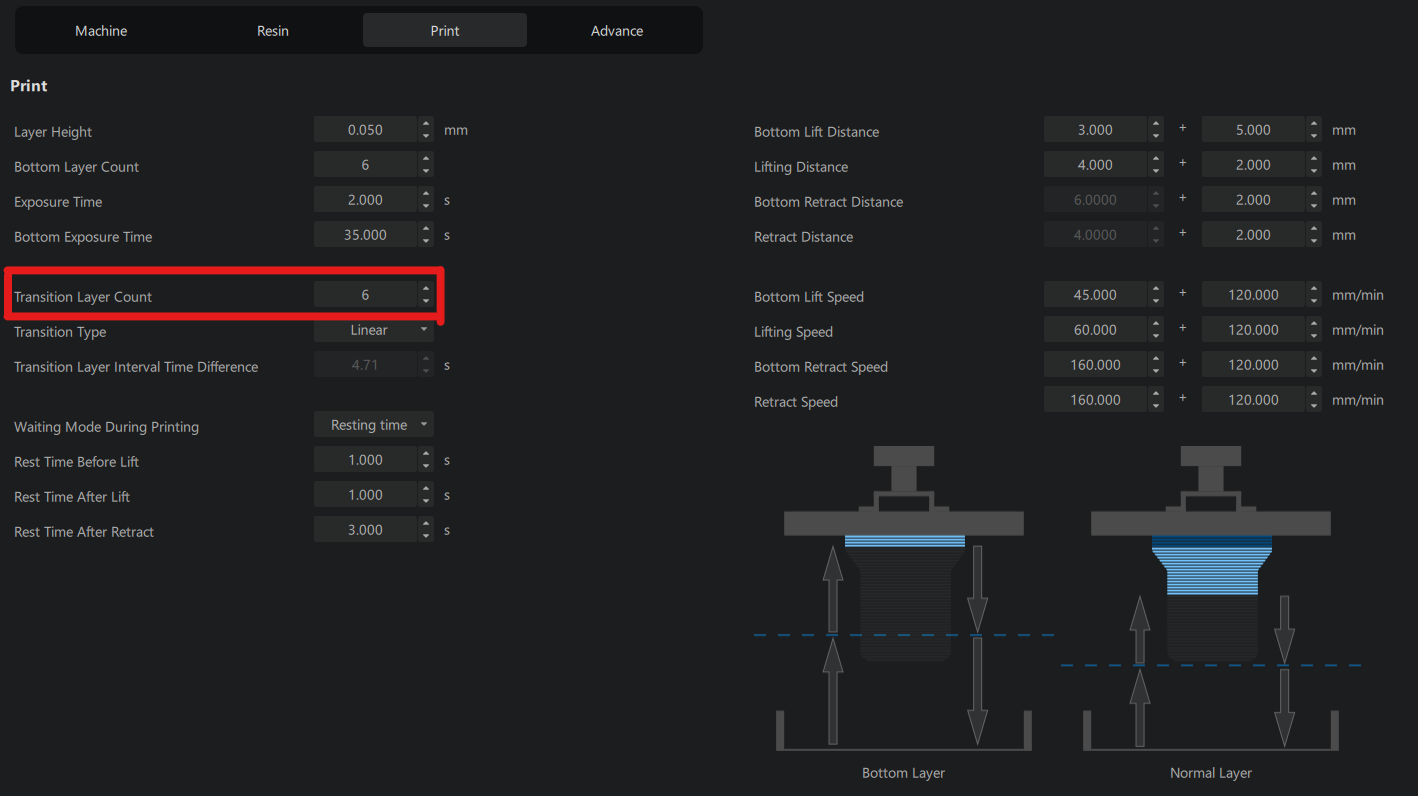

5. Transition Layer

Transition layers help smooth the shift from bottom layers to regular layers, preventing separation.

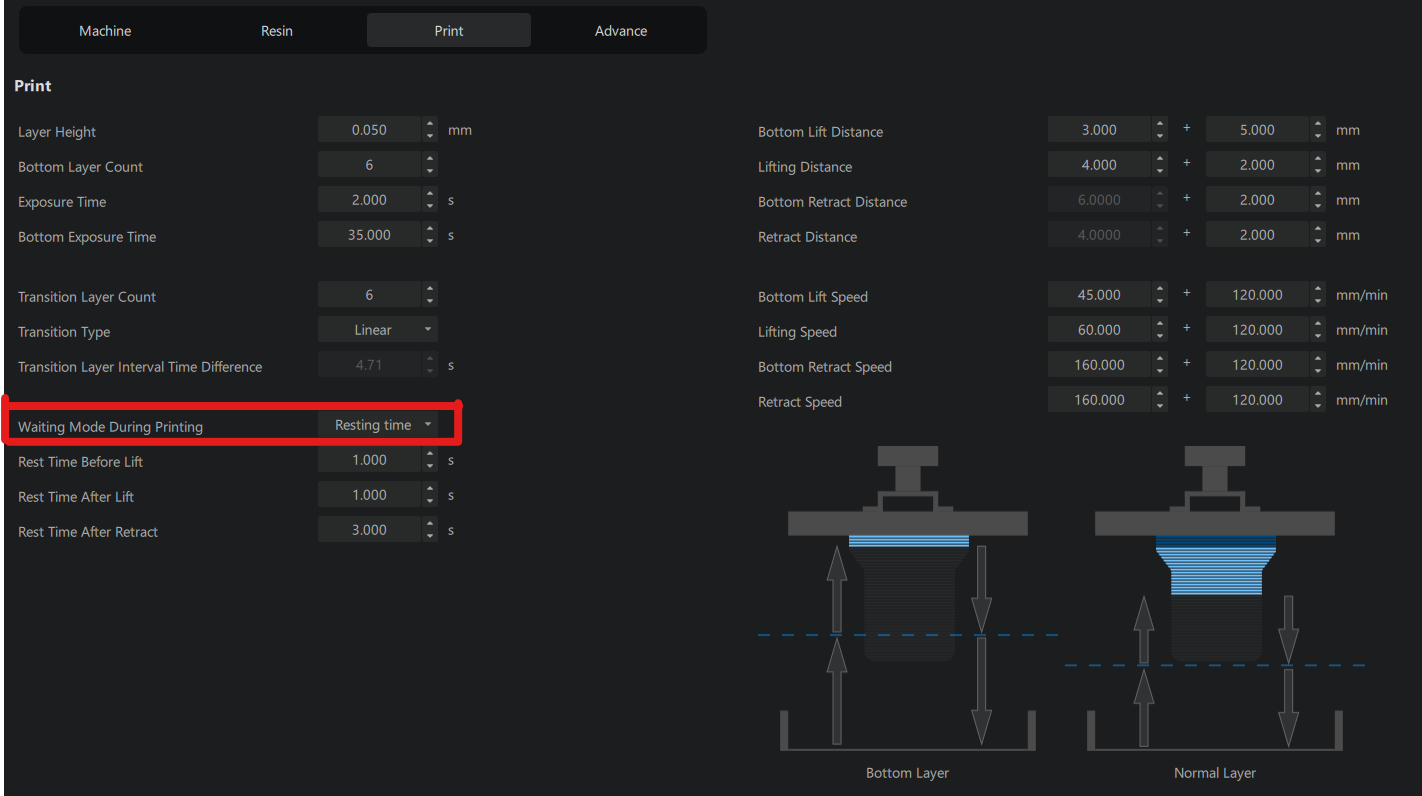

6. Waiting Mode During Printing

Waiting mode includes:

• Light Off Delay: Pauses between exposure steps.
• Rest Time: Preferred for fine-tuning resin settings to optimize the printing process.

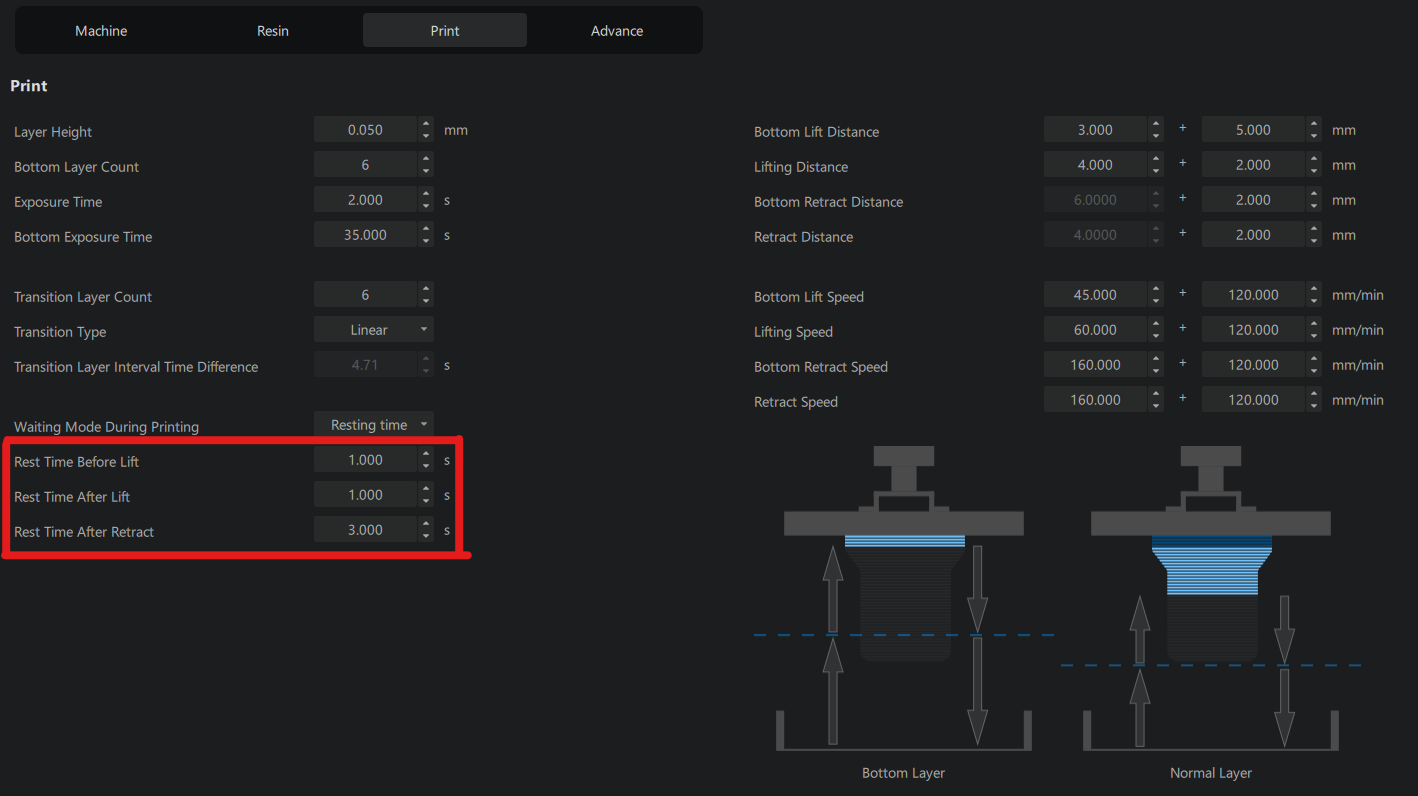

7. Rest Times

• Before Lift: Time interval between light-off and the build plate lifting.
• After Lift: Time interval after the build plate has lifted and before it starts retracting.
• After Retract: Time interval after the build plate has retracted and before the light turns on.

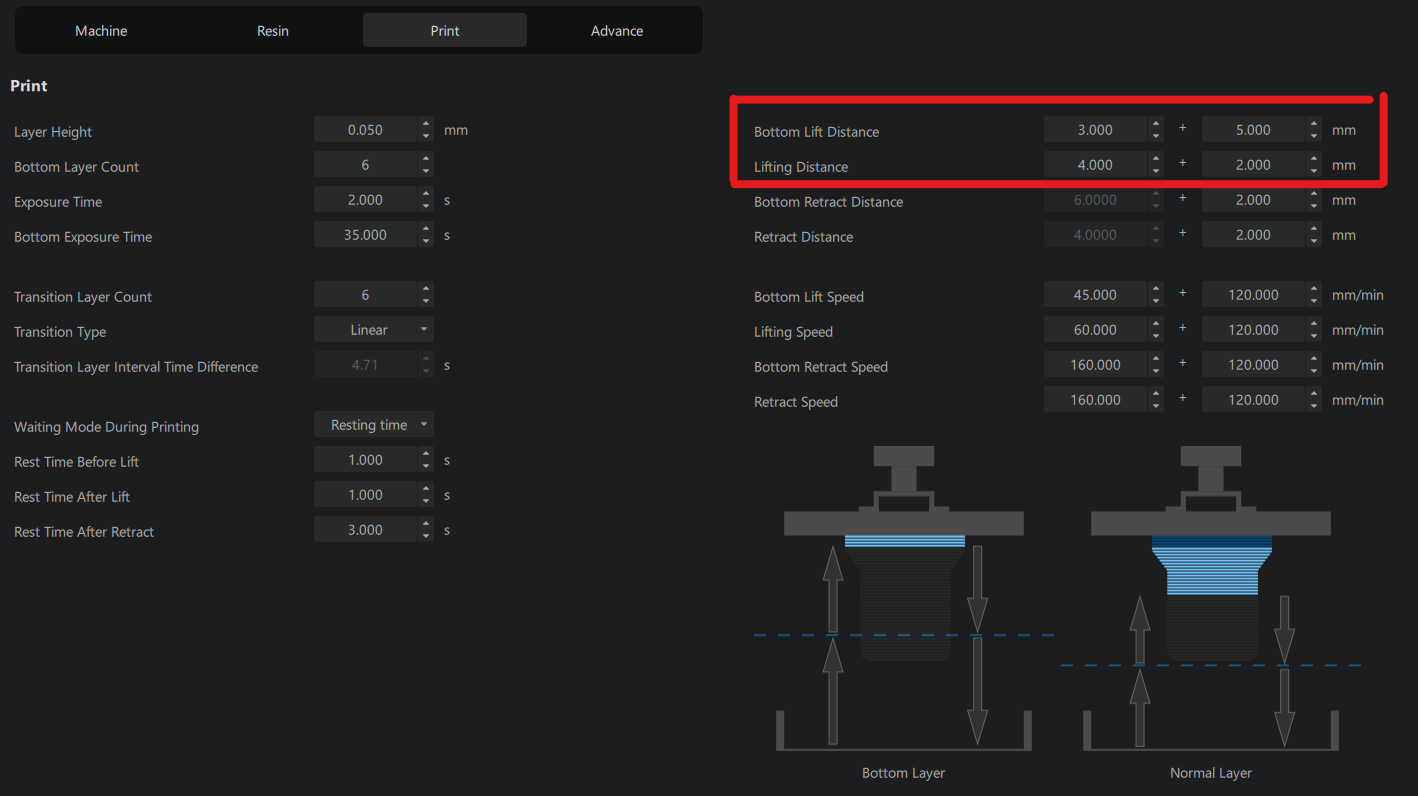

8. Bottom Lift Distance

The height the build plate lifts during bottom layer printing.

• High Distance: Increases process time but improves layer separation.
• Low Distance: Reduces time but risks attachment issues to the FEP film.



9. Lifting Distance

The distance the build plate lifts for regular layers.

• Correct Setting: Ensures proper layer attachment.
• Low Setting: May cause print failure.

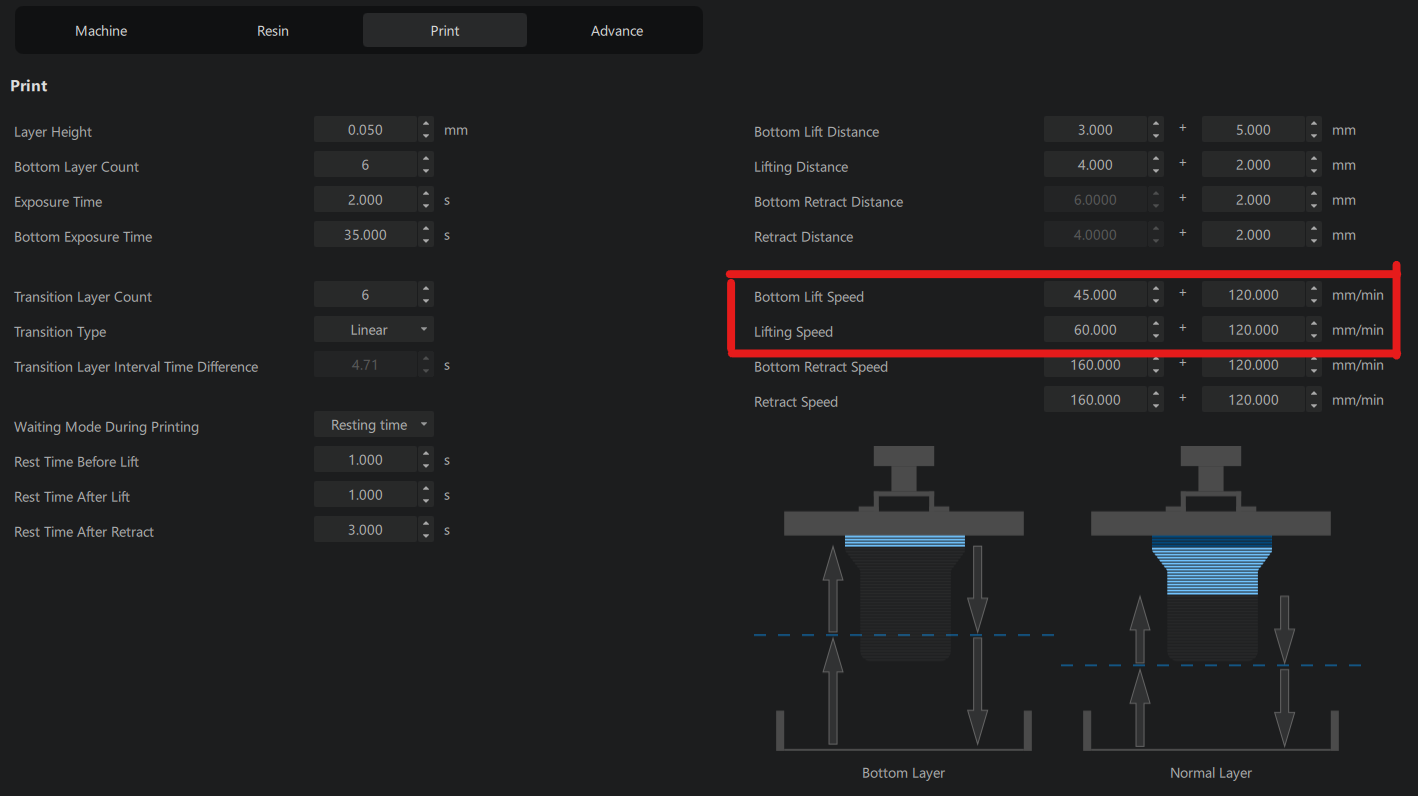

10. Bottom Lift Speed

The speed at which the Z-axis moves during bottom layer printing.

• High Speed: Reduces time but risks damaging the layers.
• Low Speed: Increases time but ensures successful layer printing.



11. Lifting Speed

The speed at which the Z-axis moves for regular layers.

• High Speed: Shortens printing time but may damage models.
• Low Speed: Increases time but improves model stability.



12. Bottom Retract Speed

The speed at which the Z-axis retracts during bottom layer printing.

• High Speed: Reduces time but risks damage.
• Low Speed: Increases time but enhances print stability.



13. Retract Speed

The speed at which the Z-axis moves down during printing.

• High Speed: Reduces printing time but can cause instability.
• Low Speed: Increases time but ensures LCD longevity.



14. Single Layer Print Time Calculation

The single layer print time can be determined using the resin profile and the following formula:

A + B = where:

A = Exposure time

B = Build Plate Movement = Lift time + Retract time + Rest time

The duration of the lift time can be calculated as follows:

Lift time = Lift distance ÷ (Lift speed ÷ 60) (measured in seconds)



Total Print Time Calculation

The total print time of a model can be determined using the resin profile and the following formula:

A + B = Total Print Time, where:

A = Bottom layer count x (Bottom layer exposure time + Bottom lift time + Bottom retract time + Rest time)
B = ((Model height ÷ Layer height) - Bottom layer count)) x (Exposure time + Lift time + Retract time + Rest time)



The duration of the lift time can be calculated as follows (measured in seconds):

Lift time = Lift distance ÷ (Lift speed ÷ 60)

These calculations help in estimating the duration of the print process, allowing for better planning and optimization.





The calculation does not take into account the motor movement's acceleration and deceleration, as well as the .gcode settings. Consequently, the estimated time shown in Chitubox may not match the actual printing time of the printers.
