How to Print Your 3D Files With CHITUBOX

New to 3D printing and not sure where to start? This tutorial is perfect for beginners! We'll guide you through the process of printing your 3D files step-by-step, with a focus on making it easy to follow.

Throughout the tutorial, we'll be using CHITUBOX, a user-friendly software tool for preparing and slicing 3D models for resin-based 3D printers. You'll learn how to set up your printer, resin, and parameters, add support structures, slice your model, and save the file for printing. By following these instructions, you'll be on your way to creating your own 3D prints in no time!

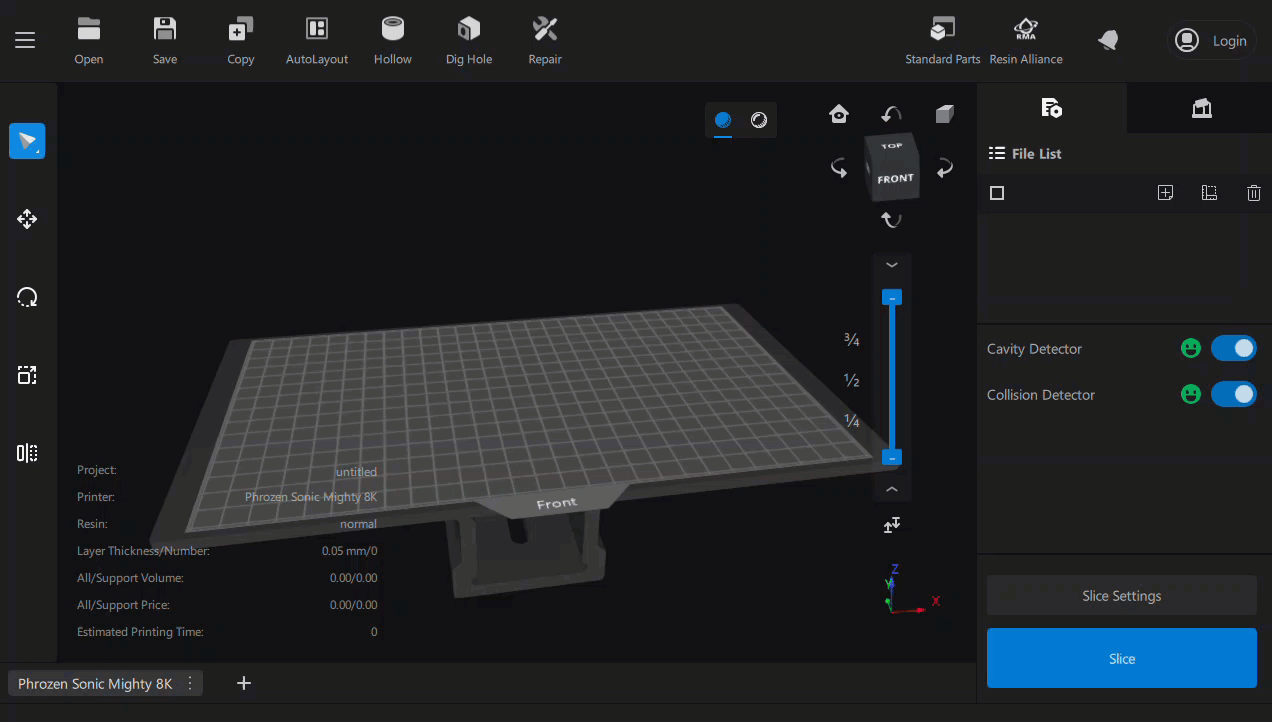

Adding a New Printer

• Launch CHITUBOX on your computer.
• Choose your 3D printer model from the settings menu.
• Click on Settings > 🗋 Add new printer > Choose your machine > OK.


Selecting Resin Type

• Click on the resin you want to choose for your print.


Entering Print Parameters

• After selecting resin, set parameters like layer height, exposure time, lifting speed, or you can keep the same if you dont want to adjust them yourself.
• Refer to Phrozen’s Resin Profile for detailed recommended print settings.


Importing Files

• Import your STL file into CHITUBOX.
• Click on 🗀 Open file > select your STL file > Open.

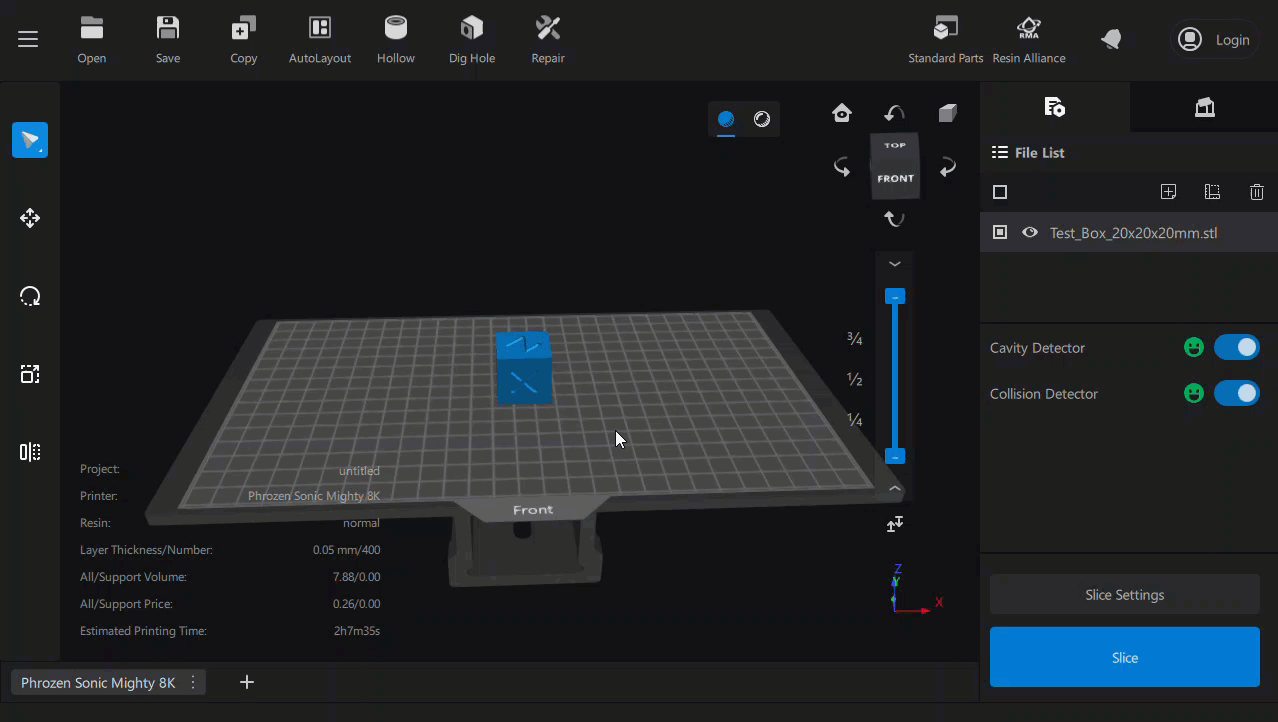

Adding Support

• Ensure a successful print by adding support to your model.
• Click on 🏛 Support > +All.


Slicing

• Slice your model by clicking on the Slice button.

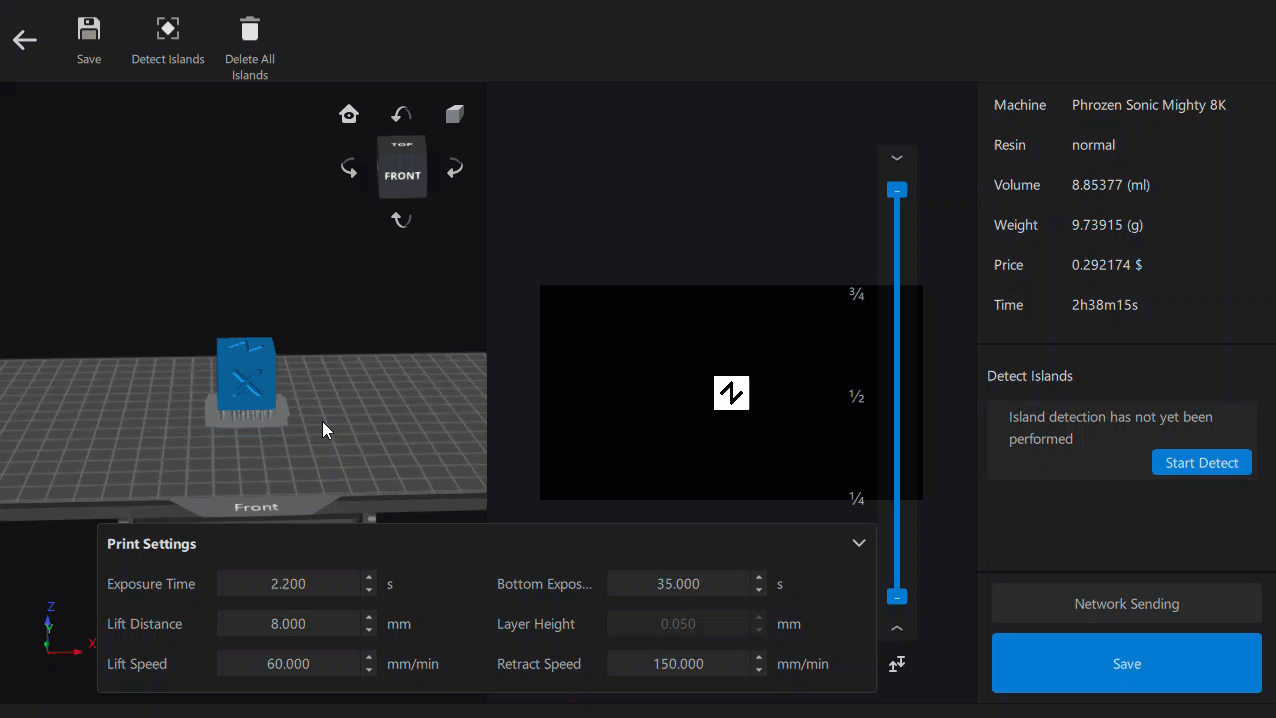

Saving the File

• After slicing, save the file in CTB/ZIP format on your PC.

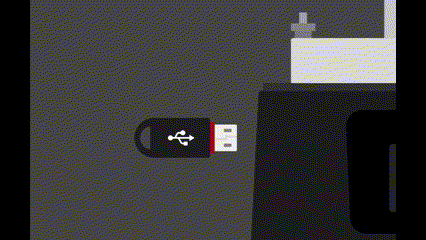

• Transfer the file to a USB drive.


Printing

• Insert the USB drive into your printer.
• Print your sliced model to bring your 3D design to life.


Contact Support

After reading through this article, if you find any issues, feel free to reach out to Phrozen Support or your Authorized Reseller for further assistance. When contacting Phrozen Support, kindly send some photos or videos illustrating the issue.
