[Sonic Mini] Checking the Touch Panel Version

The Sonic Mini is equipped with two distinct touch panels, each accompanied by its corresponding firmware. This guide is designed to aid you in identifying the touch panel version of your printer.

Before proceeding to check the touch panel, kindly follow the instructions outlined below to open the bottom case of the printer:

1. Turn off the power and unplug the power cord.
2. Remove the UV cover, building plate, and resin vat.
3. Carefully lay down your printer.

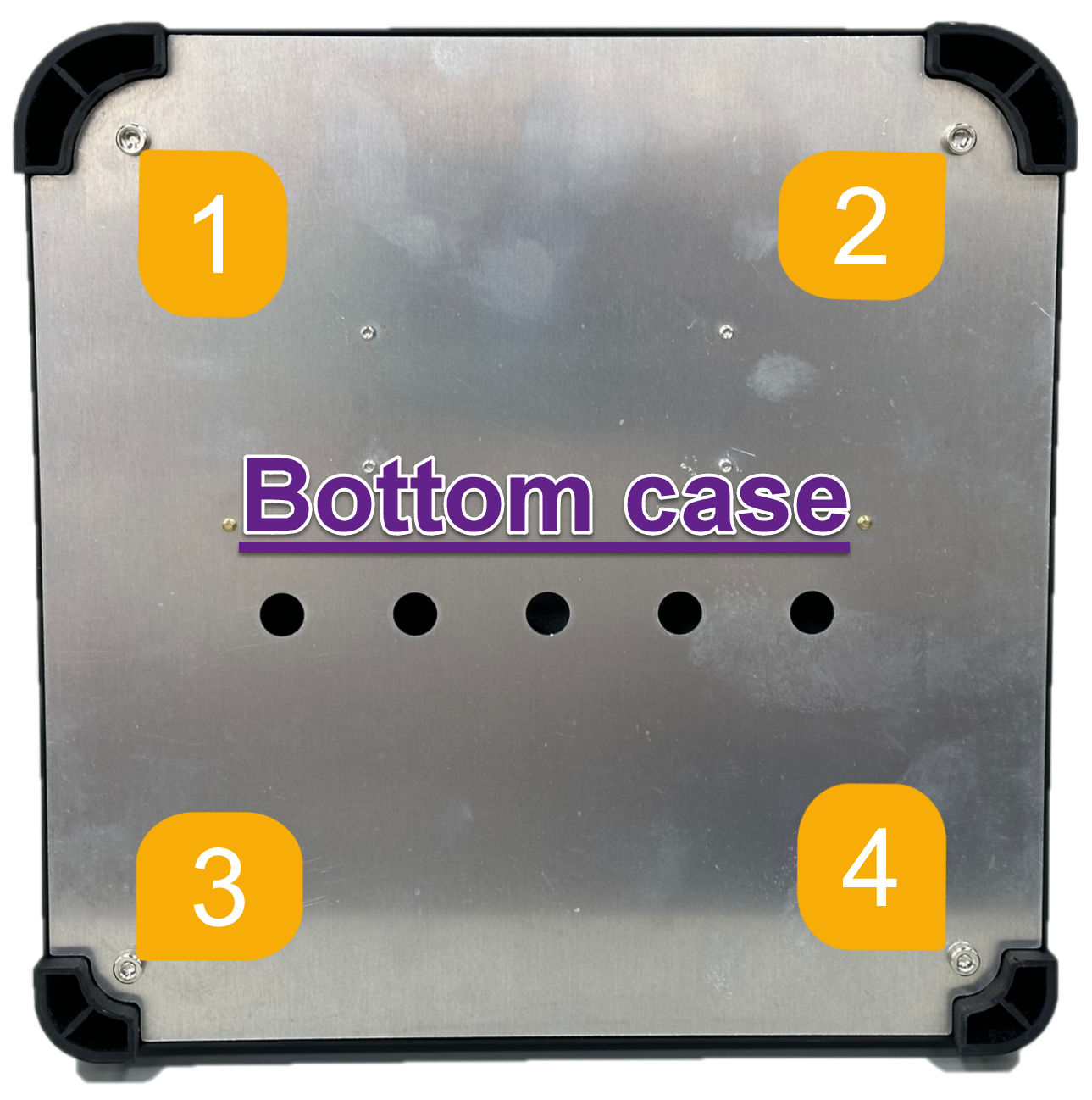

4. Use an Allen wrench to remove the 4 screws and open the bottom case.

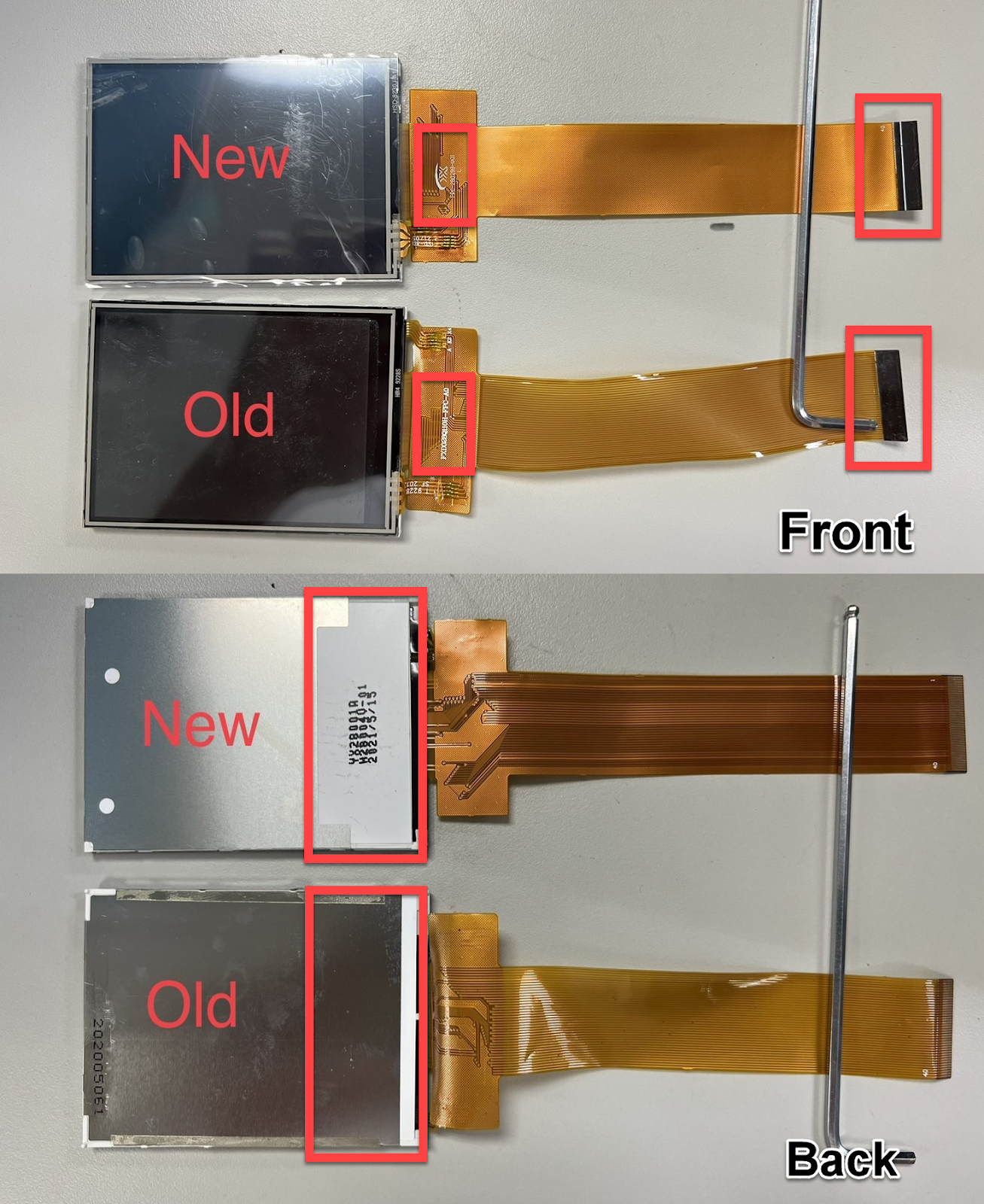

Upon successfully opening the bottom case, locate the touch panel. Please refer to the information provided below to identify the touch panel version accurately.
