[Wash & Cure Station] Wash Station: Replacing the Motor

If the motor of your Wash Station stops functioning, replacing it becomes essential to ensure the continued efficiency of your equipment. In this article, we'll provide you with a comprehensive, step-by-step guide on how to safely and effectively replace the motor.

1. Removing the Old Motor

Power down and prepare

• Switch off the device.
• Unplug the power cord from the device.

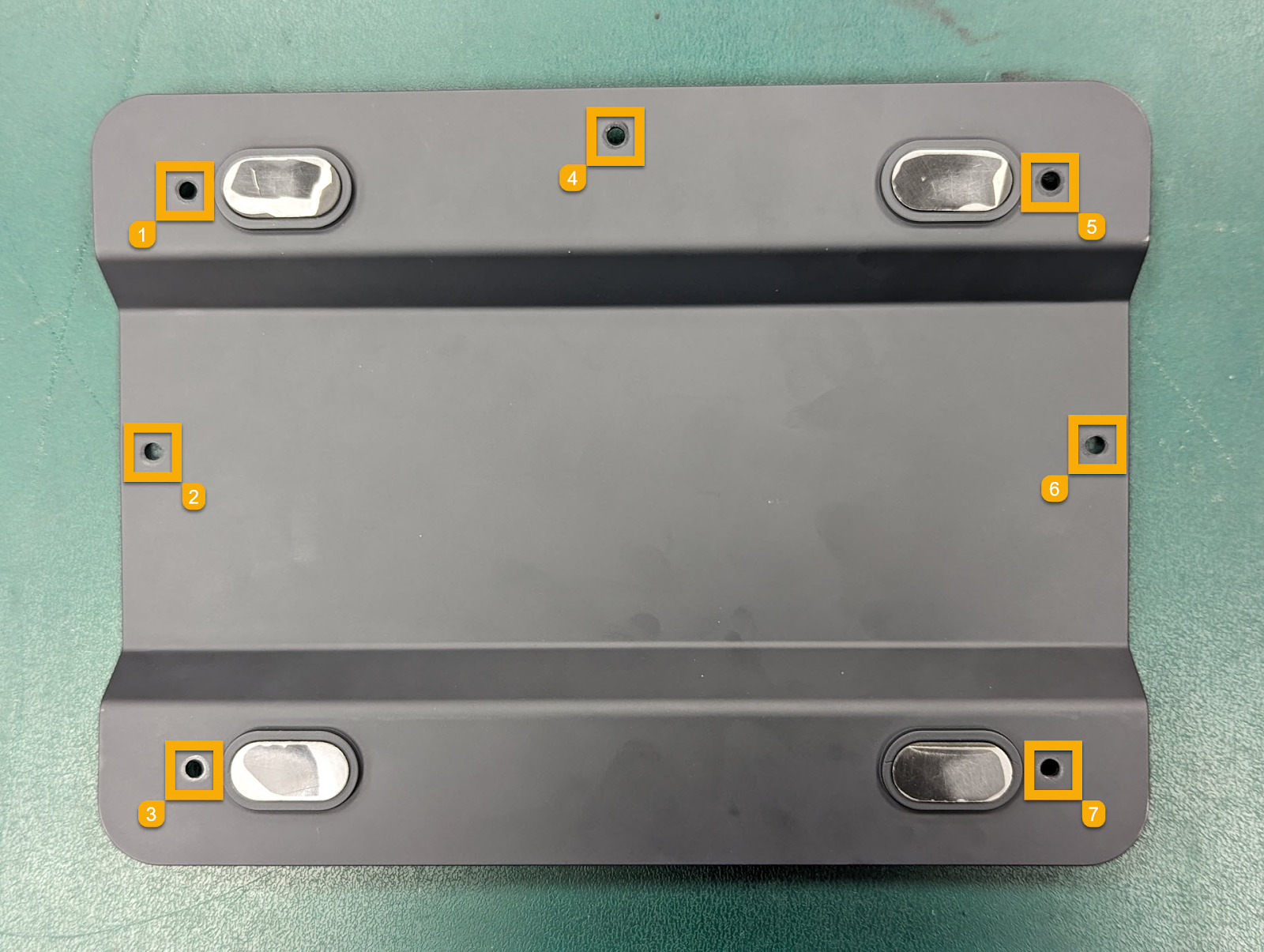

• Use the H2.5 hex key to loosen 7 screws and remove the bottom case.

• Remove and keep the bottom case aside.

Removing the old motor

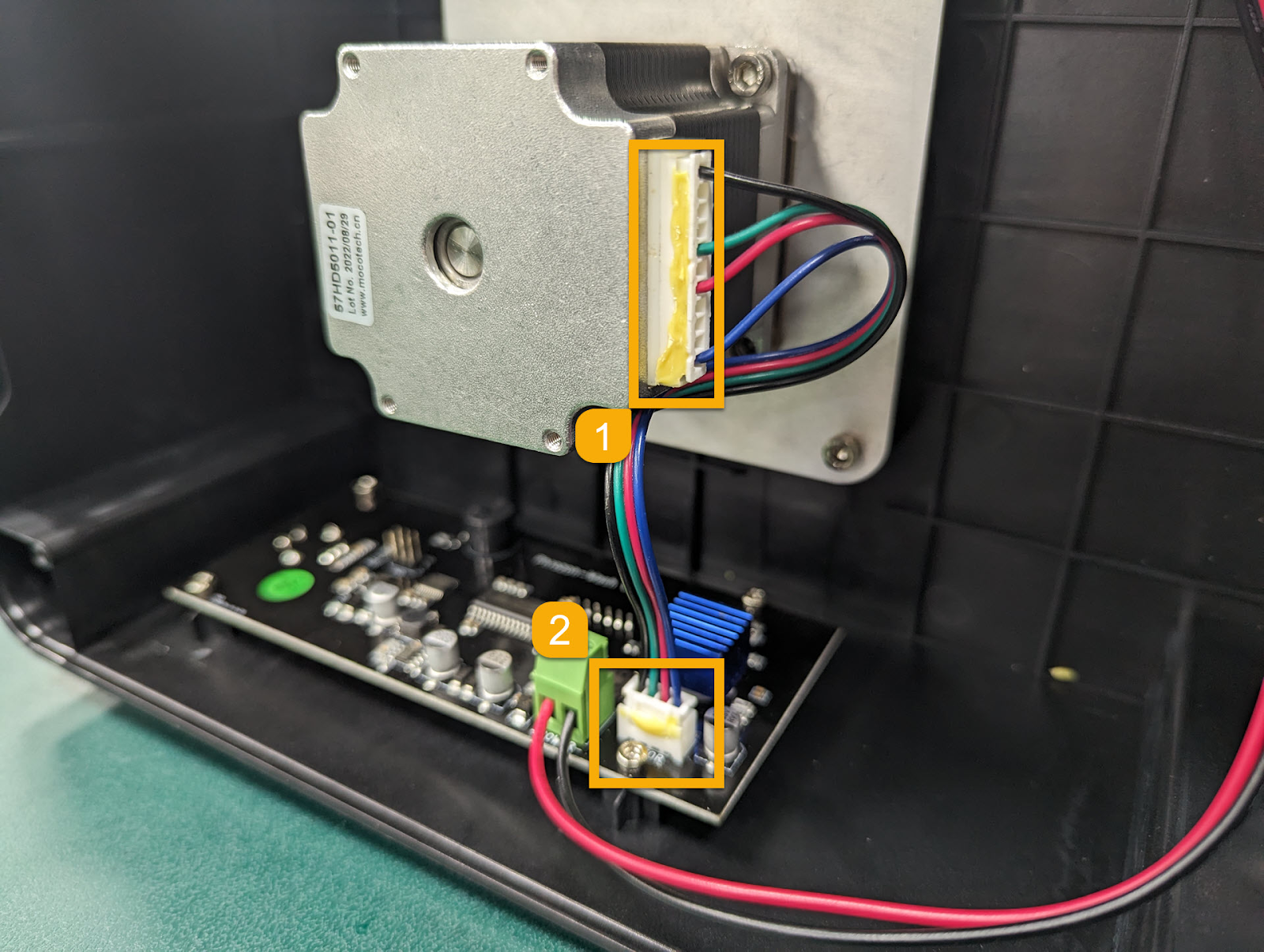

• Disconnect the motor cable from the mainboard and the motor.

• Remove the old motor by loosening the 4 screws.

 2. Installing the New Motor

Installing the new motor

• Place the new motor in its designated position and tighten the screws.
• Reconnecting the motor cable to the new motor and the mainboard.
• Tighten the 7 screws and install the bottom case.

Verifying the new motor’s functionality

• Plug in the power cord and turn on the wash station.
• Check if the motor works normally.

Contact Support

By following the above instructions, you can easily replace the motor of your Wash Station. If you face any difficulties during the troubleshooting process, feel free to reach out to Phrozen Support or your Authorized Resellers for further assistance. When contacting Phrozen Support, kindly send some photos or videos illustrating the issue.
