[Wash & Cure Station] Wash Station: Replacing the Mainboard

When the mainboard of your Wash Station malfunctions, replacing it is crucial to restore full functionality. In this article, we’ll walk you through a detailed, step-by-step guide on how to replace the mainboard, ensuring that your device operates smoothly and efficiently once again.

1. Removing the Old Mainboard

Power down and prepare

• Switch off the device.
• Unplug the power cord from the device.

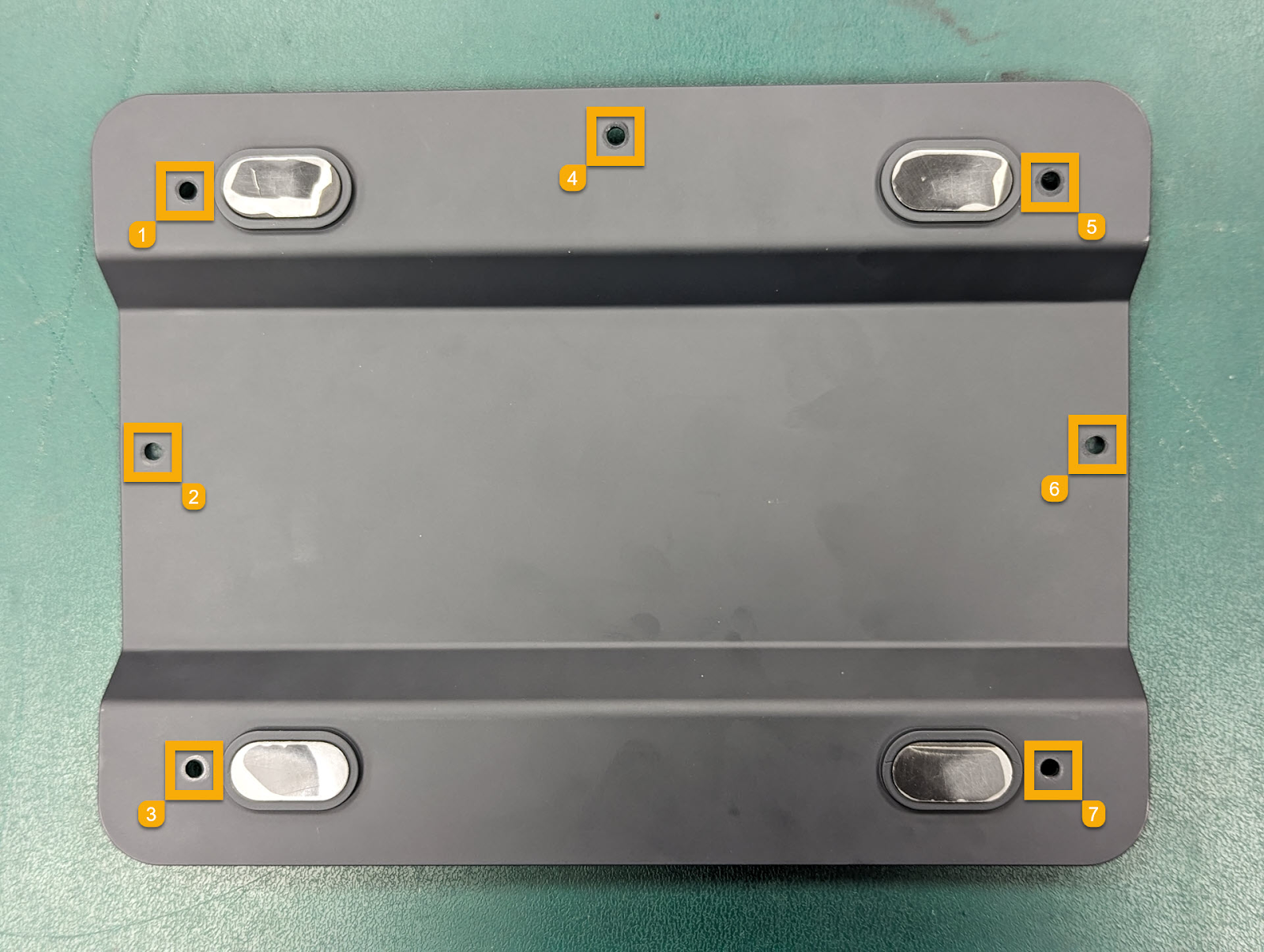

• Use the H2.5 hex key to loosen 7 screws and remove the bottom case.

• Remove and keep the bottom case aside.

Removing the old mainboard

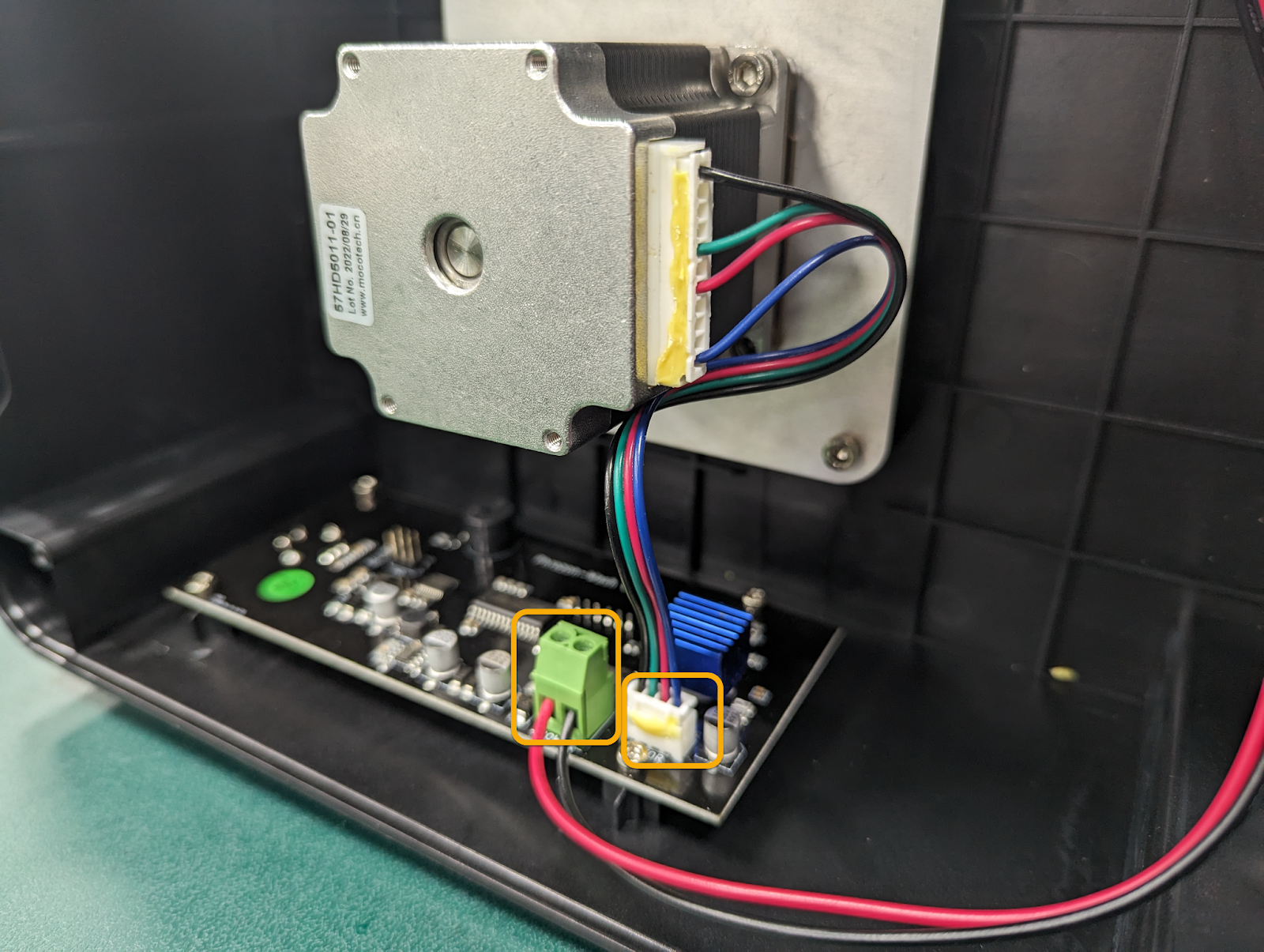

• Disconnect the motor cable and the power cable from the old mainboard.

• Loosen the 4 screws on the mainboard.
• Remove the old mainboard from the wash station.

2. Installing the New Mainboard

Installing the new mainboard

• Place the new mainboard in its designated position.
• Tighten the 4 screws to secure the new mainboard.
• Connect the motor cable and the power cable to the new mainboard.
• Tighten the 7 screws and install the bottom case.

Verifying the new mainboard’s functionality

• Plug in the power cord and turn on the wash station.
• Check if the new mainboard works normally.

Contact Support

By following the above instructions, you can easily replace the mainboard of your Wash Station.If you face any difficulties during the troubleshooting process, feel free to reach out to Phrozen Support or your Authorized Resellers for further assistance. When contacting Phrozen Support, kindly send some photos or videos illustrating the issue.
