[Wash & Cure Station] Cure Station: Replacing Sensor

If the sensor of your Cure Station stops functioning, replacing it becomes essential to ensure the continued efficiency of your equipment. In this article, we'll provide you with a comprehensive, step-by-step guide on how to safely and effectively replace this component.

1. Removing the Old Sensor

Power down and prepare

• Switch off the device.
• Unplug the power cord from the device.
• Remove the orange UV cover from the Cure Station.

Removing the old sensor

• Remove the 4 screws placed at the back of the Z tower.
• Remove the 2 screws that secure the old sensor in place.

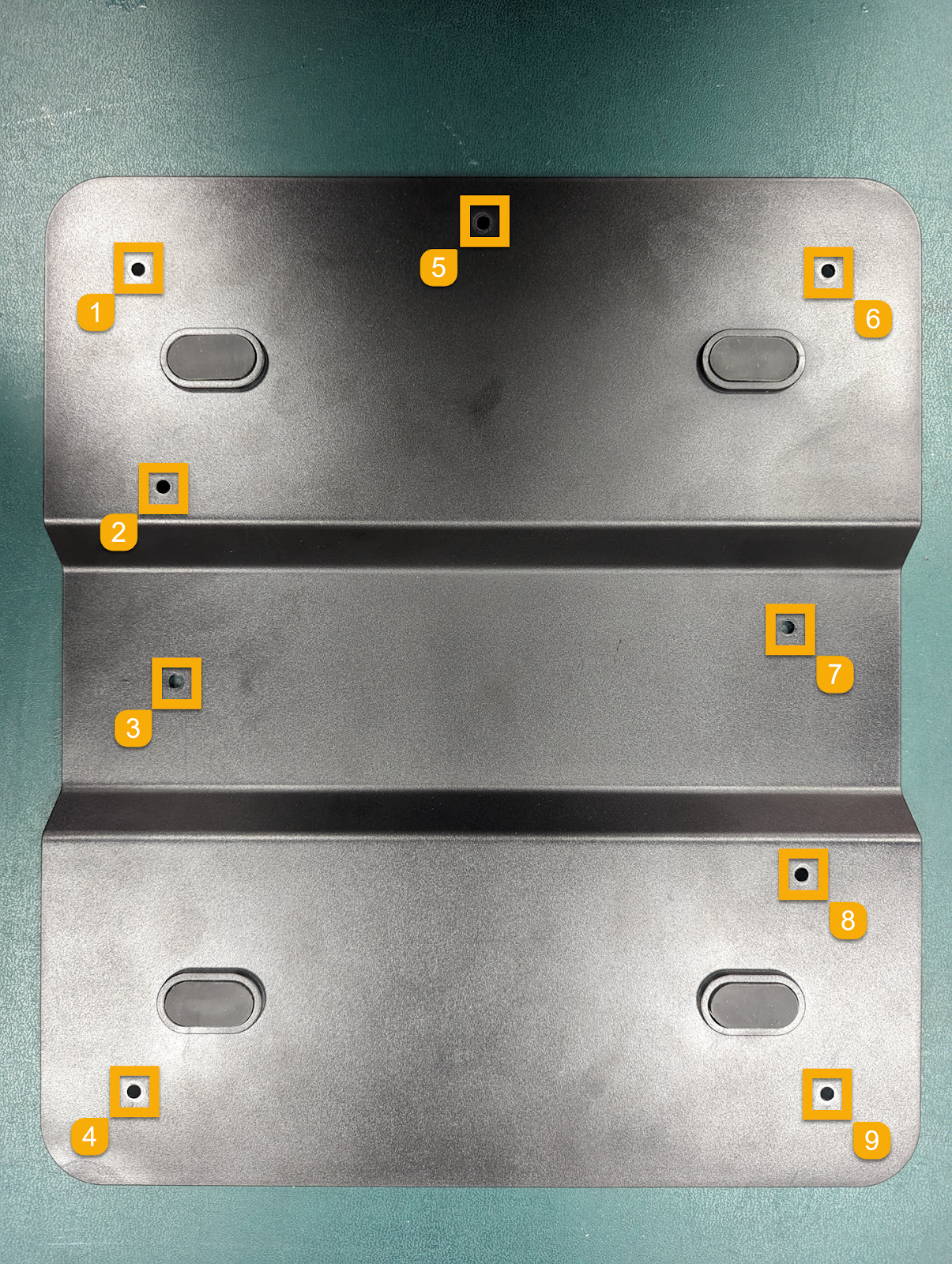

• Turn the device over and loosen the 9 screws on the bottom case.

• Remove and keep the bottom case aside.

Removing the old sensor

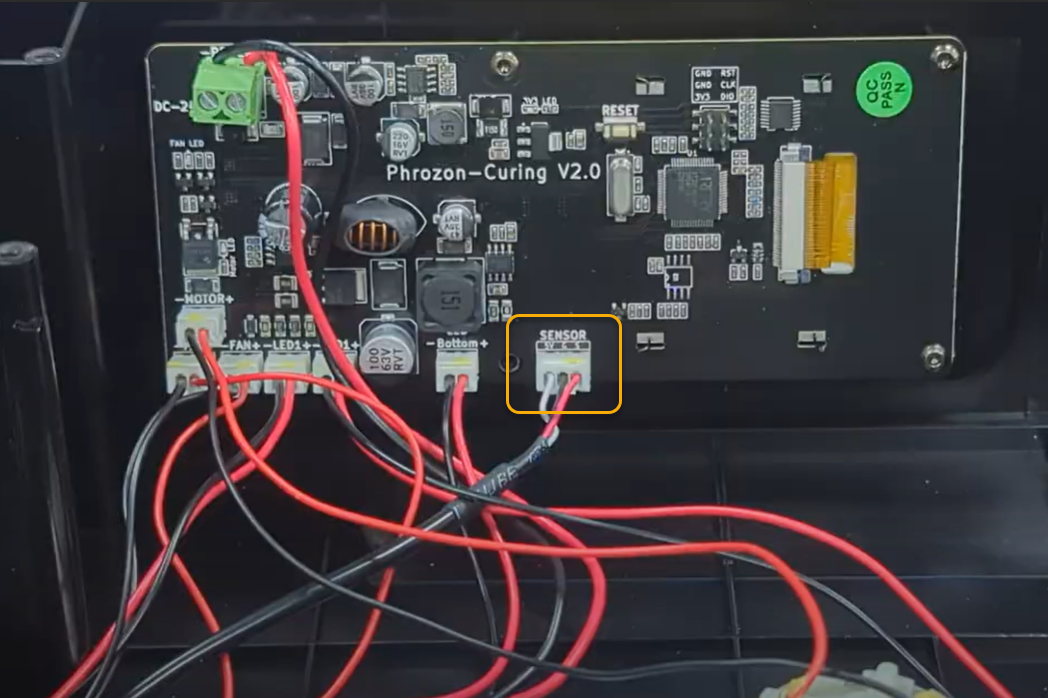

• Disconnect the old sensor from the mainboard and remove the old sensor cable.

2. Installing the New Sensor

Installing the new sensor

• Insert the new sensor cable into the Cure Station.
• Plug the new sensor into its designated port on the mainboard.
• Place the new sensor onto the Z tower.
• Screw back the base at the back of the Z tower.

Verify the new sensor’s functionality

• Plug in the power cord and switch on the Cure Station.
• Check if the device works normally.

Contact Support

By following the above instructions, you can easily replace the sensor cable of your Cure Station. If you face any difficulties during the troubleshooting process, feel free to reach out to Phrozen Support or your Authorized Resellers for further assistance. When contacting Phrozen Support, kindly send some photos or videos illustrating the issue.
