[Sonic Mega 8K] Replacing the Power Supply

Power Supply is an important component of the Sonic Mega 8K printer. When it is broken down or becomes mal-functional, a replacement is necessary. This article will guide you through common steps of installing a new power supply for Sonic Mega 8K.

1. Removing the Old Power Supply

Power down and Prepare

• Turn off the printer and disconnect the power cord.

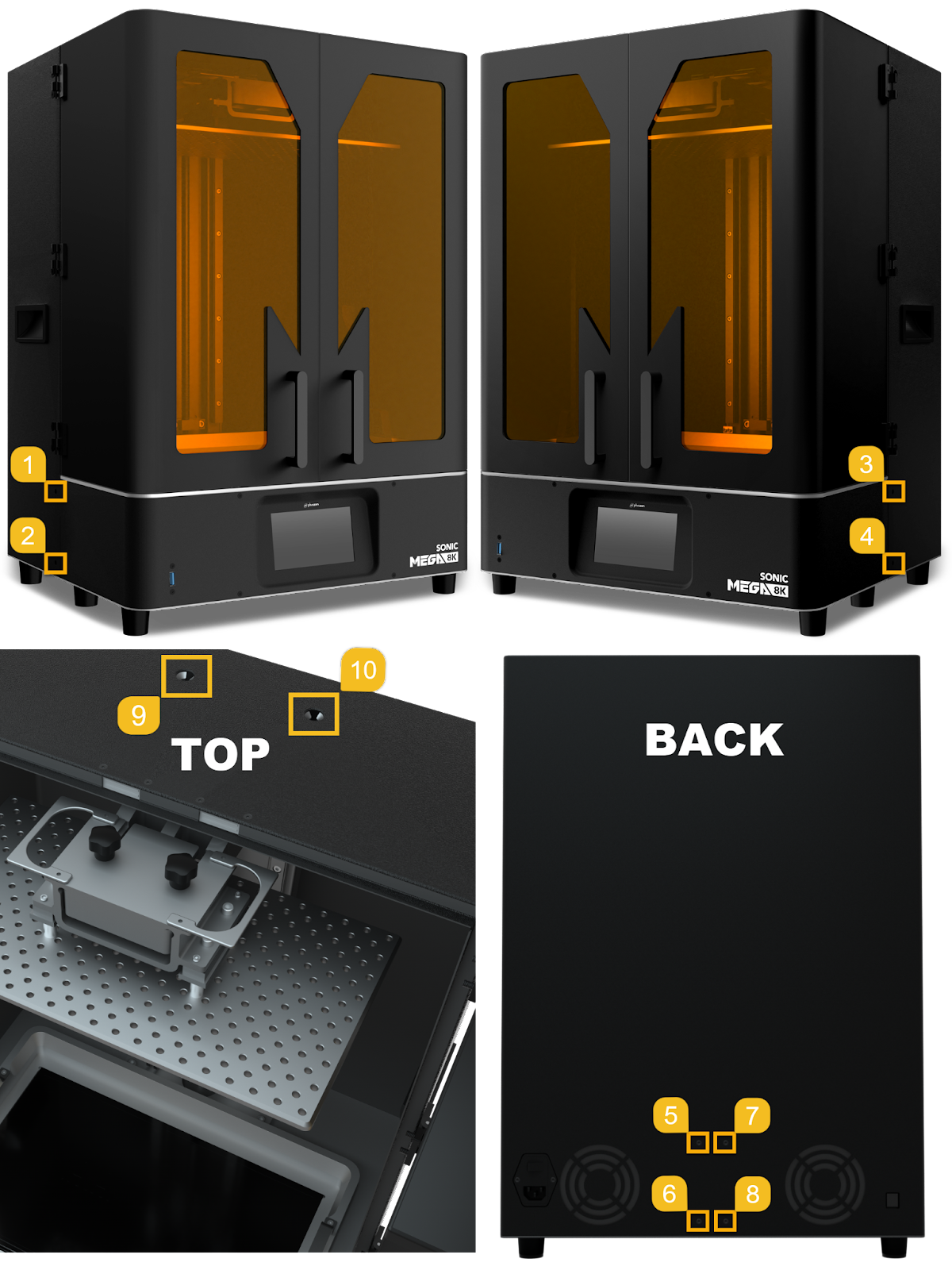

• Loosen the 8 screws on the front case and place it in front of the printer

Be careful when sliding off the cover to avoid damaging any cables.

• Remove the rear case by loosening the 10 screws.

• Slide off and remove the rear case with doors and put it aside.

Disconnect the cables

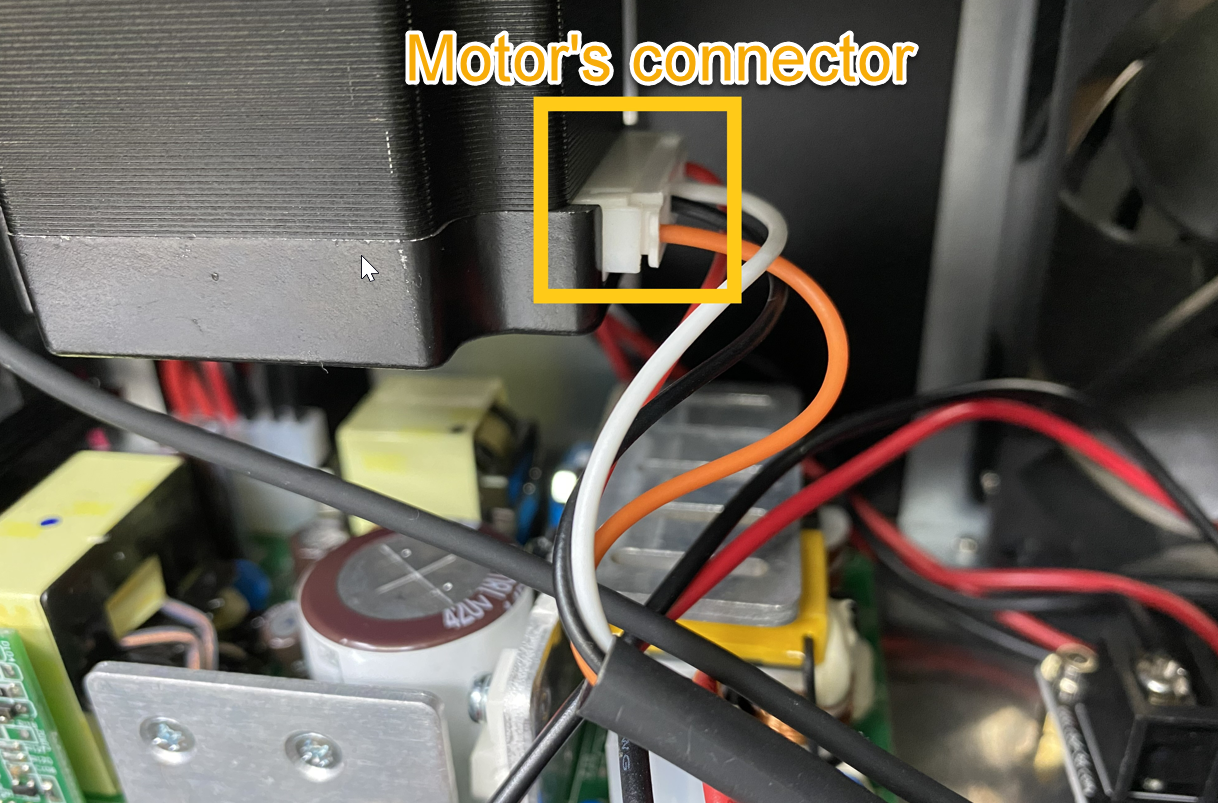

• Detach the motor’s connector.

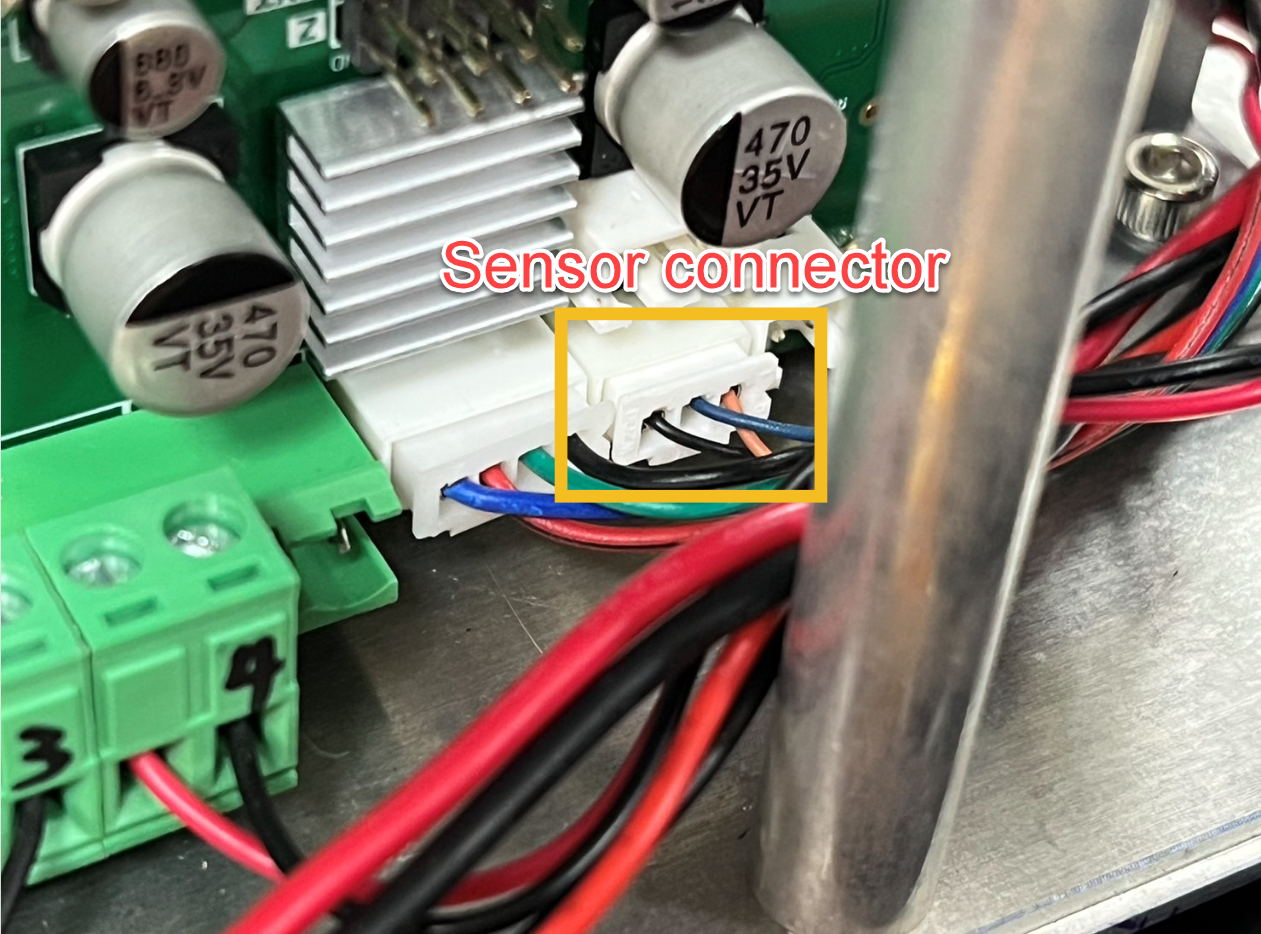

• Disconnect the sensor’s connector and LCD ribbon cable.

Remove the top half

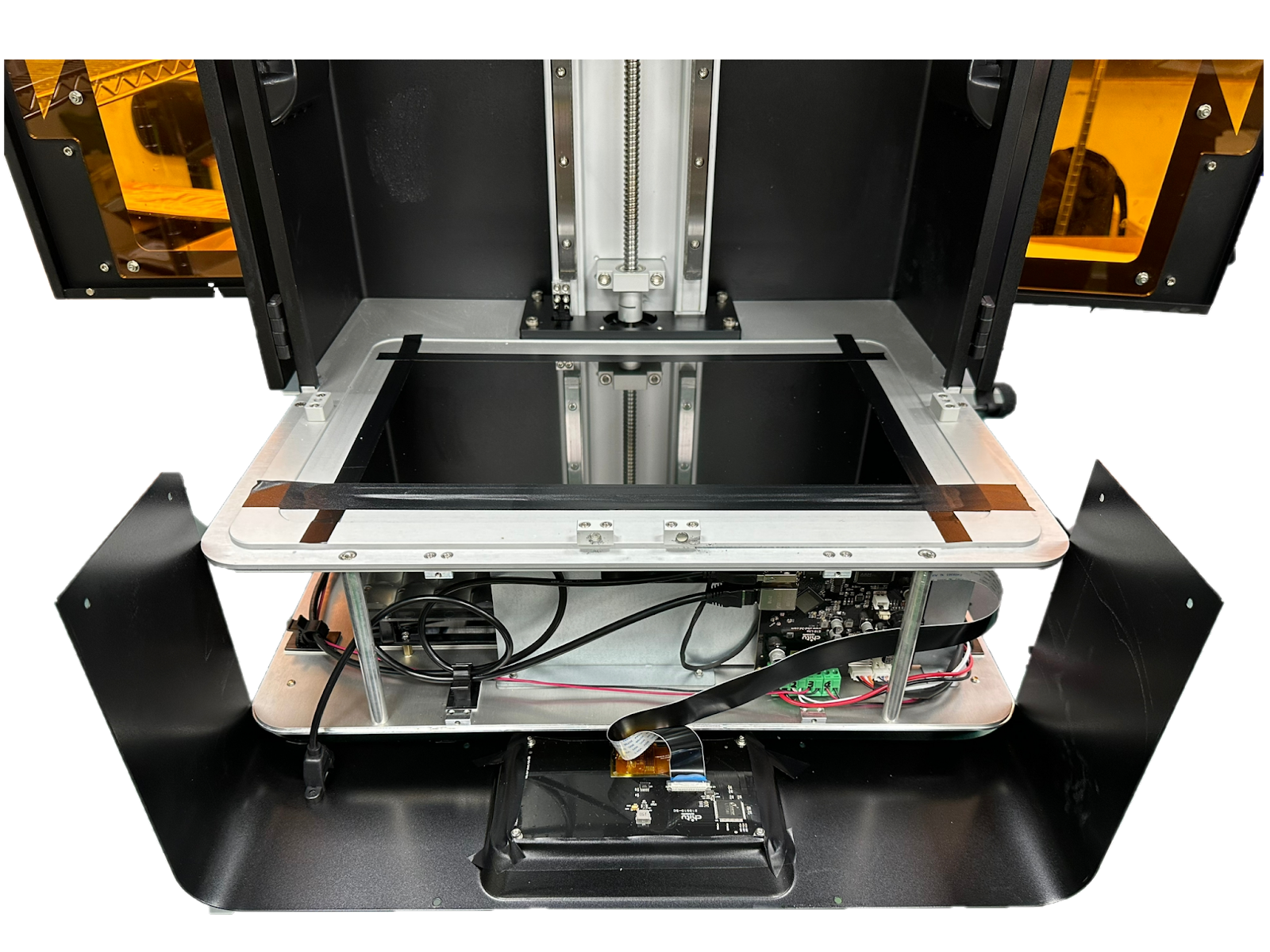

• Loosen the 8 screws on the printer's platform and remove the top half of the printer.
• Set the top half of the printer aside.

Remove the old power supply

• Take a photo of the old power supply and the cables connected to it (you can refer to this when installing the new power supply).
• Loosen the screws located around the old power supply frame.
• Remove the old power supply.
• Use a slotted screwdriver to disconnect the cables attached to the old power supply.

2. Installing the New Power Supply

Install the power supply

• Put the new power supply in its place.
• Reconnect all the wires in the same order (refer to the photo you have taken in the last step).
• Retighten the screws around the new power supply board to lock it in place.

Reassemble the printer and verify the new power supply’s functionality

• Connect the LCD cable and sensor connector to the mainboard.
• Attach the motor connector to the motor.
• Tighten the screws and reinstall the rear case in place.
• Connect the touch panel cable and USB cable to their respective ports.
• Tighten the screws and reinstall the front case.
• Perform an LCD test and Z-axis calibration to check if the new power supply works normally.

Remember to handle the components with care during re-installation and to tighten all screws and cables securely.

Contact Support

By following the above instructions, you can install a new power supply for your Sonic Mega 8K. If any issues arise during the steps, reach out to Phrozen Support or our Authorized Resellers for further assistance. When contacting Phrozen Support, kindly send some photos or videos illustrating the issue.
