[Sonic Mighty Revo] Replacing the Touch Panel

When the touch panel of your printer becomes malfunctional or broken, a replacement will be necessary. In this article, we’ll guide you through the steps of replacing the Touch Panel on the Phrozen Sonic Mighty Revo.

1. Removing the Old Touch Panel

Power down and prepare

• Turn off the printer and unplug the power cord.
• Place the printer on a flat surface.
• Remove the UV cover.

Open the front case

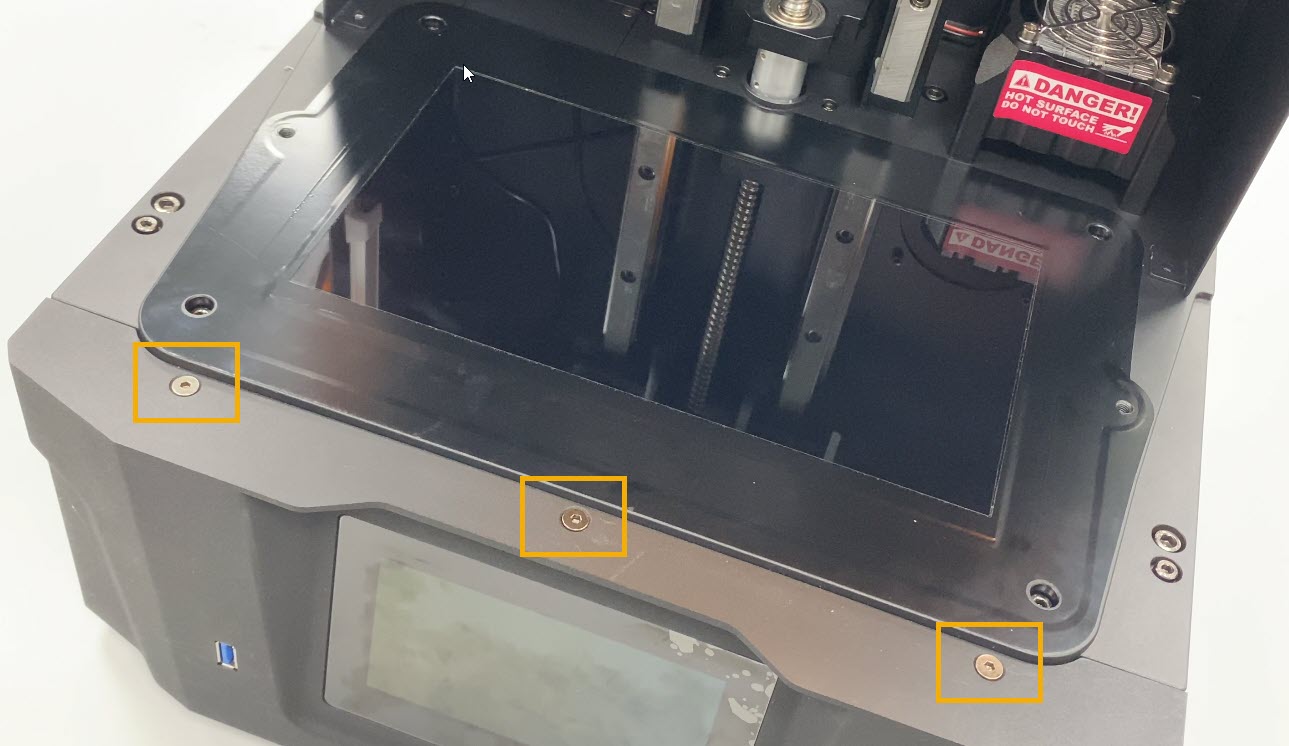

• Remove the 3 flathead screws on top of the front cover using an H2.5 Allen key.

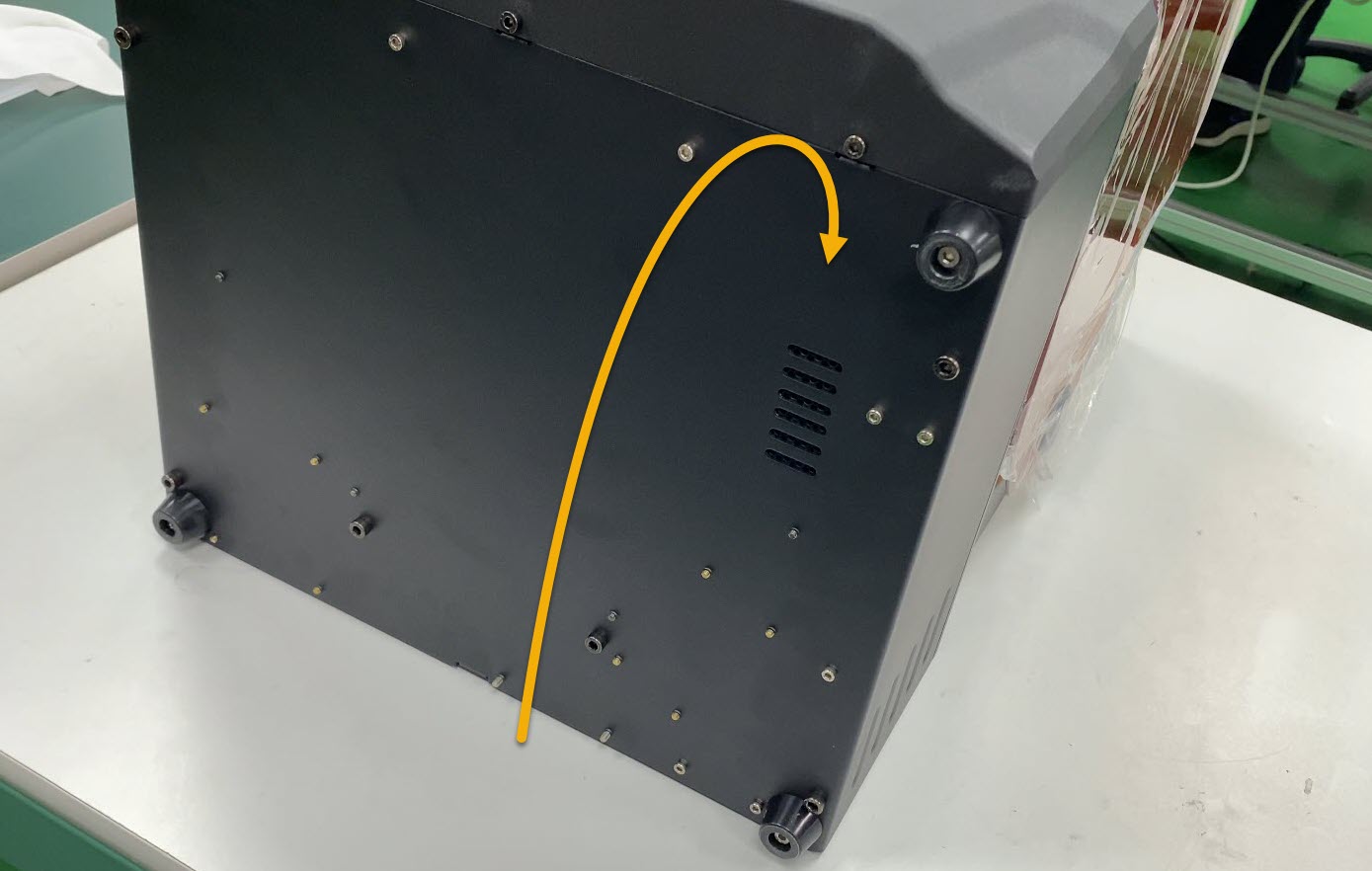

• Carefully lay the printer on its back side.

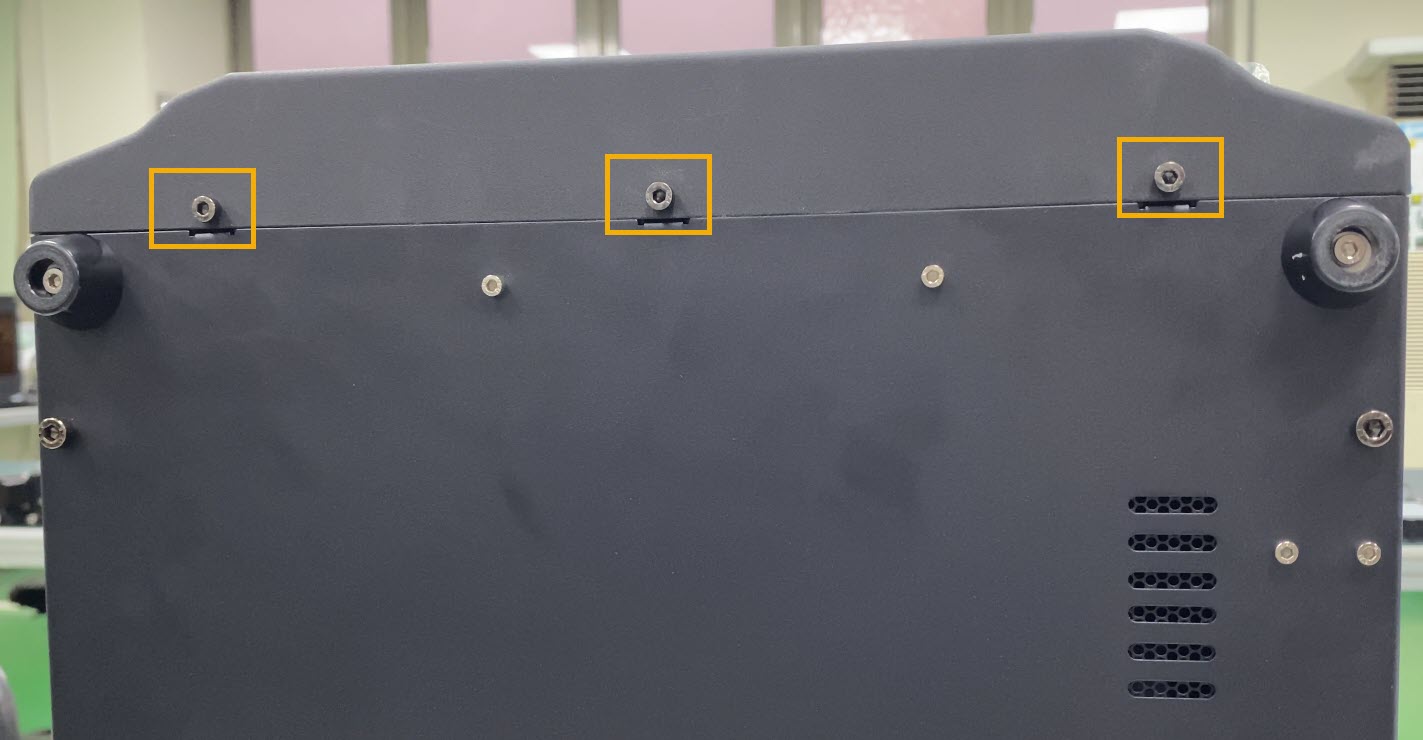

• Remove the 3 cap screws at the bottom using an H3 Allen key.

• Carefully lift the printer back into its upright position while holding the front case.
• Slowly open the front cover to avoid damaging the touch panel cable.

Remove the cables

• Disconnect the USB extension cable and the WiFi cable from the mainboard.

Disconnect the touch panel cable

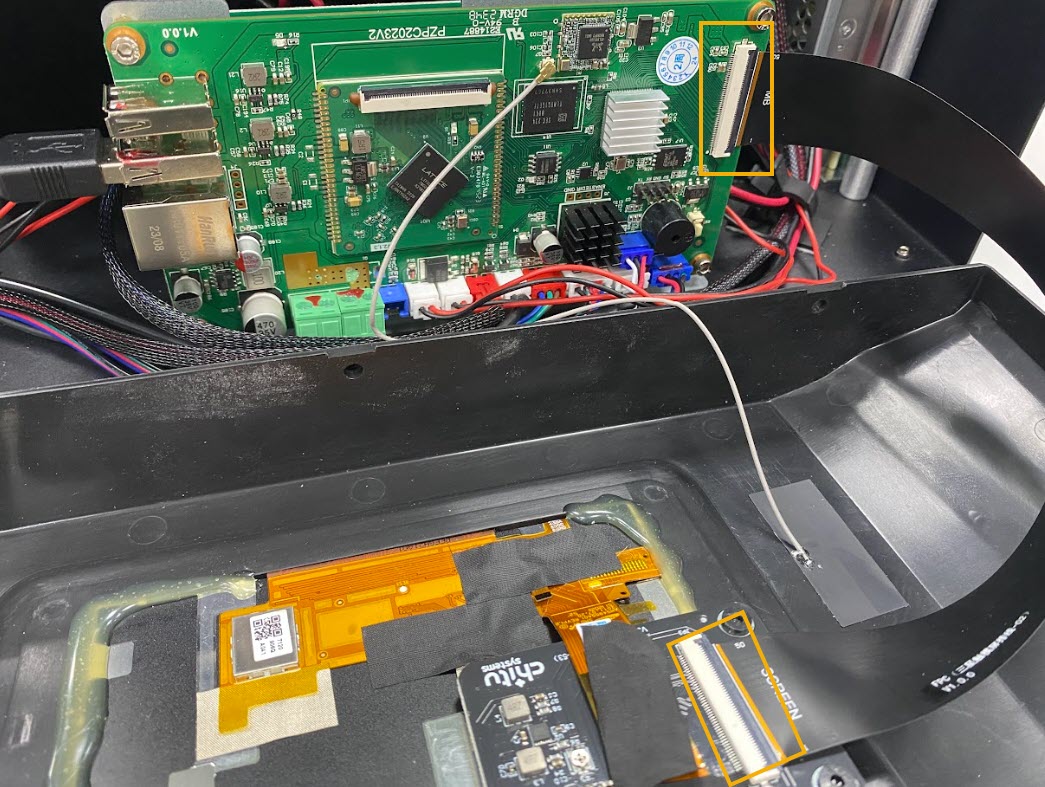

• Locate the touch panel ribbon cable connecting to the mainboard and the touch panel.

• Gently peel off the black tape securing the touch panel end connecting to the touch panel.
• Carefully open the cable clip and disconnect the touch panel cable.

Remove the old touch panel

• Carefully peel off the remaining black tape on the touch panel.
• Loosen the four corner screws and remove the small black board behind the touch panel.
• Spray some 95% sanitizing alcohol to soften the glue around the edges of touch panel.
• Gently cut the glue off with a cutter.
• Gently push the touch panel out of the case.

2. Installing the New Touch Panel

Install the new touch panel

• Put the new touch panel in its place and glue the edges.
• Tighten the 4 screws and install the small black board on the back of the touch panel.

Reassemble other components

• Reconnect the touch panel ribbon cable.
• Reconnect the USB cable and the WiFi cable to the mainboard.
• Tighten the 6 screws and restall the front case.

Verify the new touch panel’s functionality

• Plug in the power cord and switch on the printer.
• Check if the new touch panel works normally.

Contact Support

By following the above instruction, you can easily replace the Touch Panel on your Sonic Mighty Revo printer. If you find any issues, feel free to reach out to Phrozen Support or your Authorized Reseller for further assistance. When contacting Phrozen Support, kindly send some photos or videos illustrating the issue.
