[Wash Mega S] Replacing the Switchboard

This article will guide you through necessary steps to install a new Switchboard for your Wash Mega S.

1. Removing the Old Switchboard

Power down and prepare

• Switch off the device
• Unplug the power cord from the device
• Use an Allen Wrench (size 2.5) to loosen the 20 screws on the bottom case
• Remove and keep the bottom case aside

Remove the old Switchboard

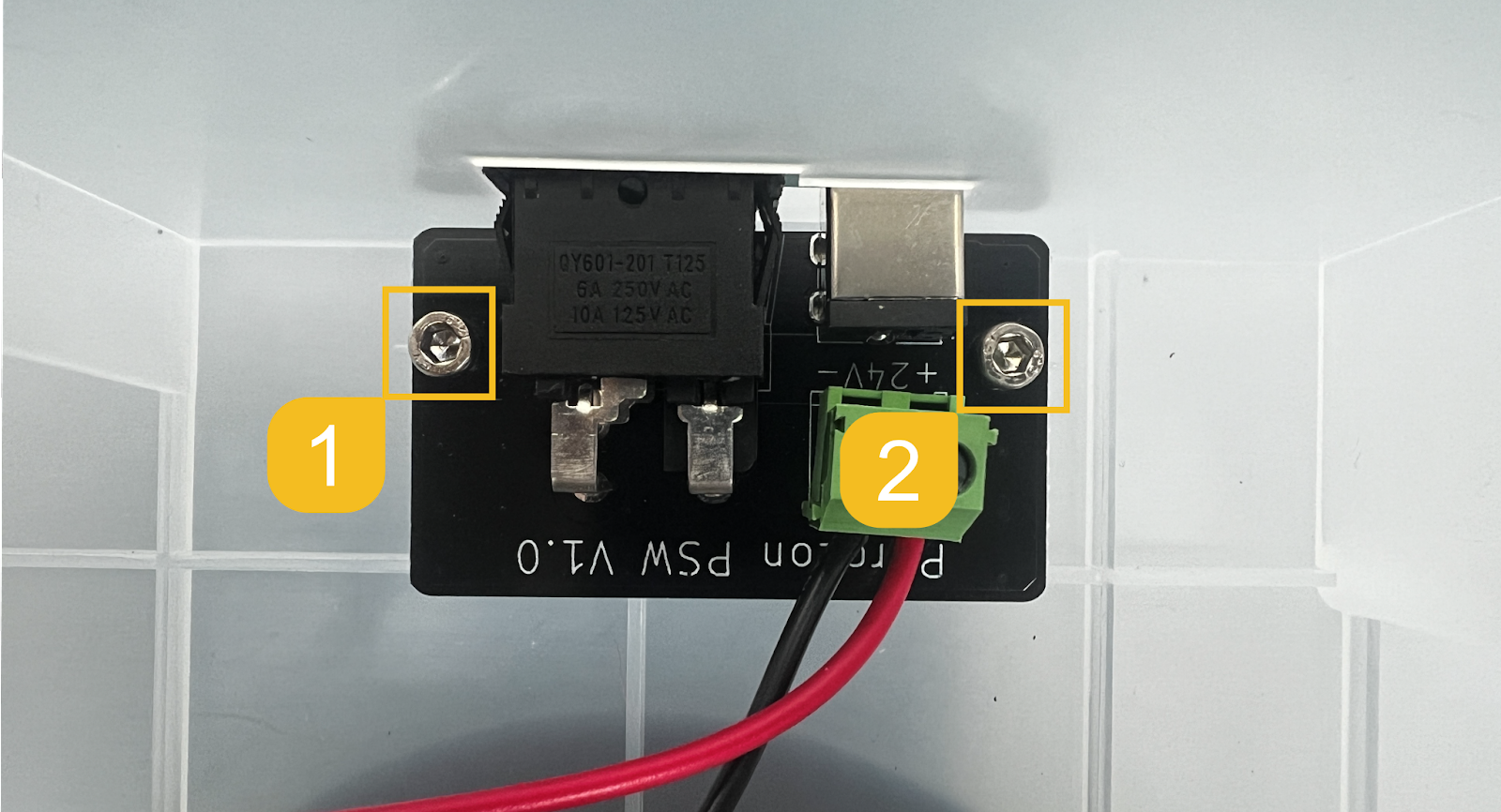

• Use a slotted screwdriver to disconnect the power wires on the green switchboard

• Use a wrench to loosen the 2 screws on the black Power Supply Board, then remove it

2. Installing the New Switchboard

Install the new Switchboard

• Putting the new Switchboard in its place
• Tighten the 2 screws to secure the new Switchboard
• Reconnect the power wires

Reassemble the bottom case and verify functionality

• Use an Allen Wrench (size 2.5) to tighten the 20 screws on the bottom case
• Plug in the power cord and switch on the device
• Check if the device works normally

Contact Support

By following the above instruction, you can easily replace the Switchboard for your Wash Mega S. If you find any issues, feel free to reach out to Phrozen Support or your Authorized Reseller for further assistance. When contacting Phrozen Support, kindly send some photos or videos illustrating the issue.
