[Wash Mega S] Replacing the Mainboard

This article will guide you through necessary steps to replace the Mainboard of your Wash Mega S.

1. Removing the Old Mainboard

Power down and prepare

• Switch off the device
• Unplug the power cord from the device

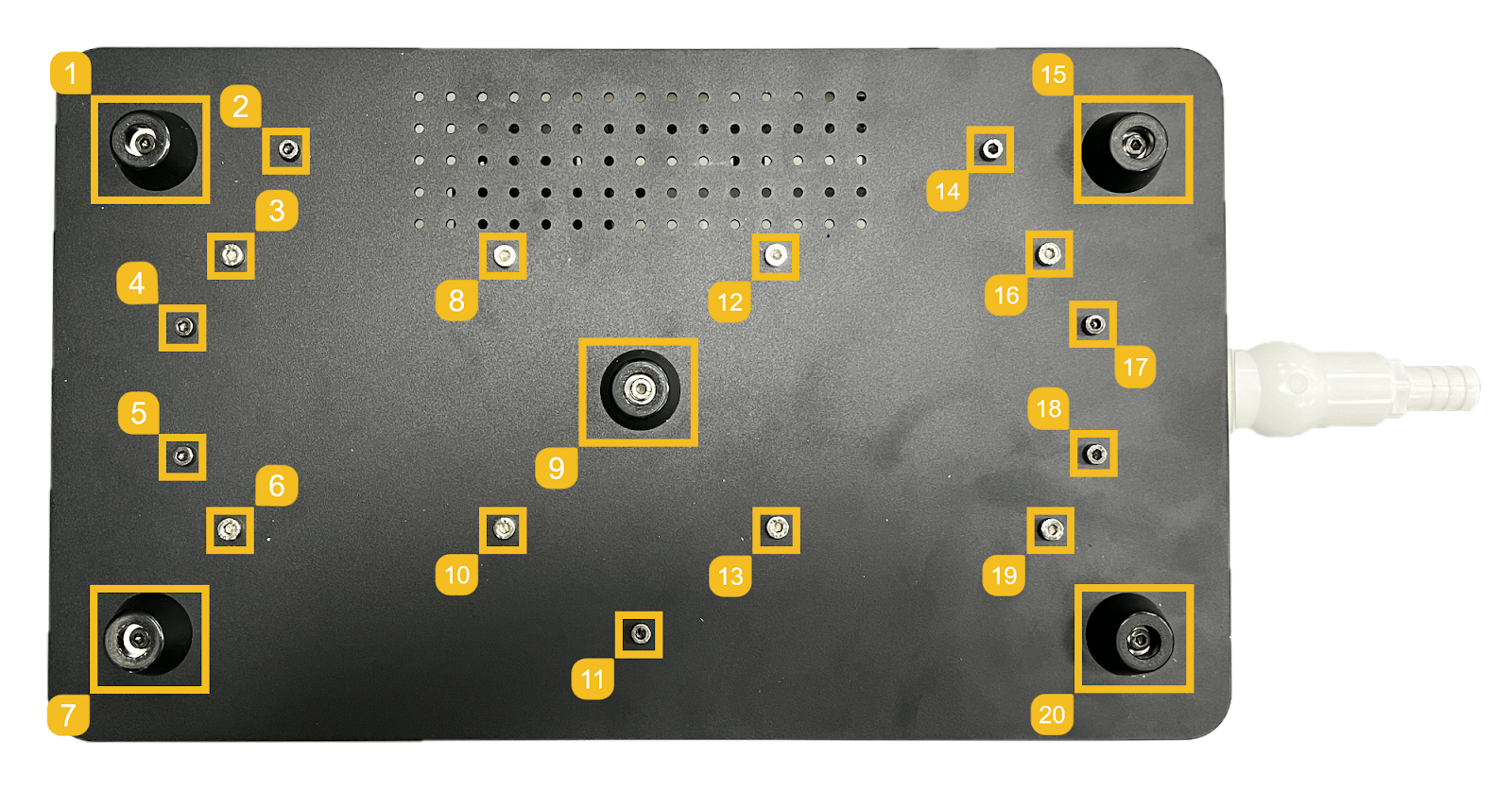

• Use an Allen Wrench (size 2.5) to loosen the 20 screws on the bottom case
• Remove and keep the bottom case aside

Remove the old Mainboard

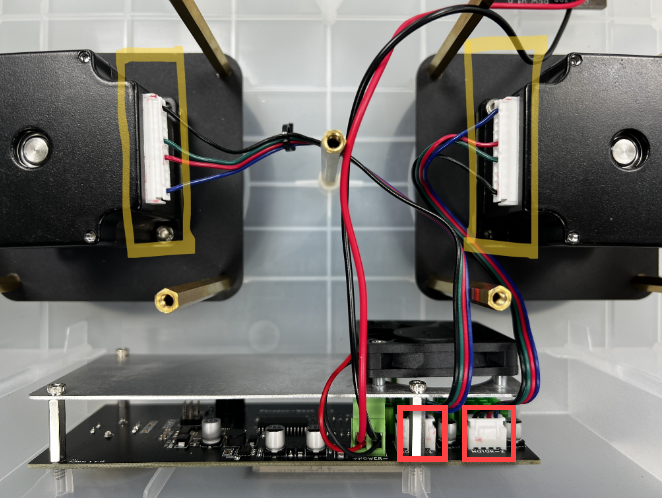

• Unplug the two motor cables from the old mainboard

• Use a slotted screwdriver to disconnect the power and fan wires on the mainboard
• Loosen 2 screws and remove the fan
• Loosen the 4 screws on the old mainboard, then remove it

2. Installing the New Mainboard

Installing the new mainboard

• Put the new mainboard in its designated place
• Tighten the 4 screws to secure the mainboard

Reassemble the device and verify functionality

• Tighten the 2 screw to reinstall the fan
• Reconnect the all the wires and cables to the new mainboard
• Use an Allen Wrench (size 2.5) to tighten the 20 screws on the bottom case
• Plug in the power cord and switch on the device
• Check if the device works normally

Contact Support

By following the above instruction, you can easily replace the Mainboard for your Wash Mega S. If you find any issues, feel free to reach out to Phrozen Support or your Authorized Reseller for further assistance. When contacting Phrozen Support, kindly send some photos or videos illustrating the issue.
