[Sonic Mini 8K S] Unboxing Your Printer

Sonic Mini 8K S is a high-resolution resin 3D printer that promises to deliver excellent print quality. If you're one of the lucky users who have just received your Sonic Mini 8K S, you're probably excited to unbox the printer and start printing right away.

In this article, we'll take you through the unboxing process step by step, so you can get your printer set up and ready to run in no time. Let's get started!

Take a video of your product unboxing to document the fun and for added protection in case of future issues.

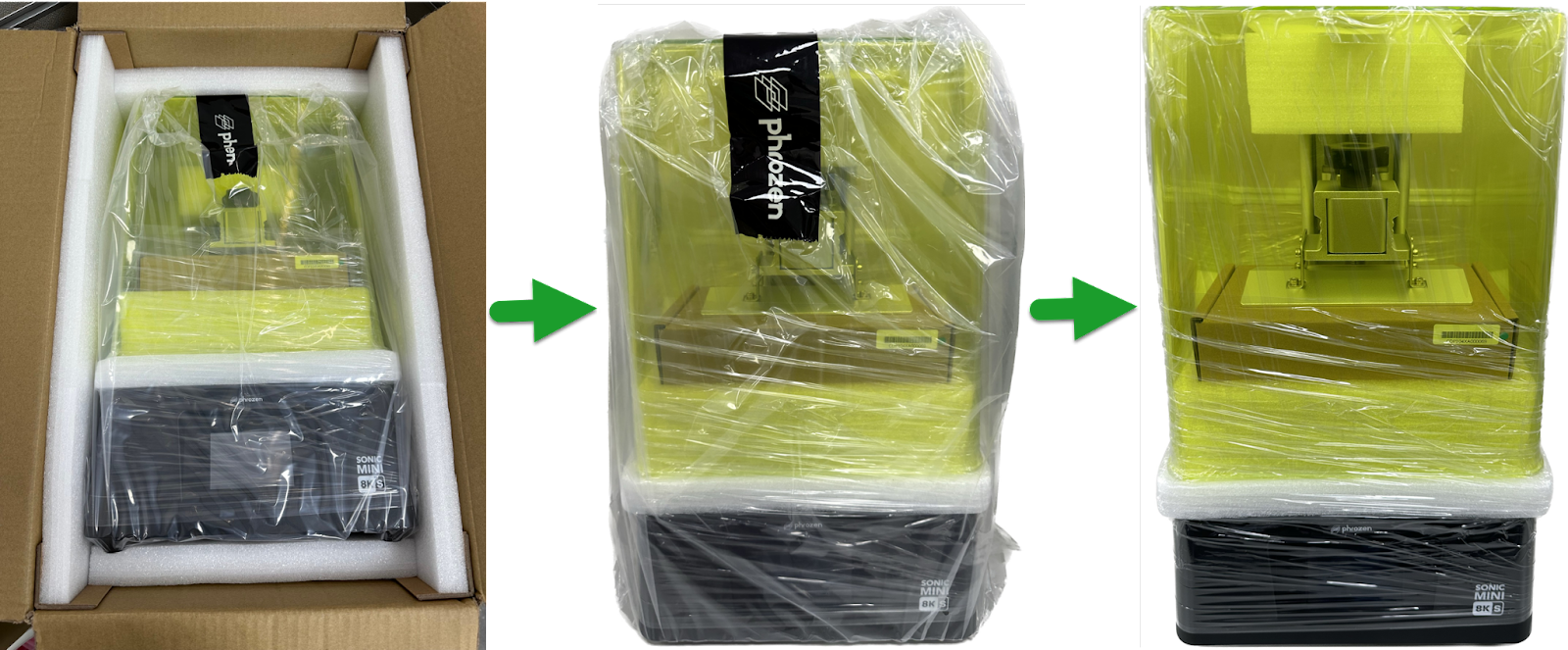

1. Unboxing the Printer

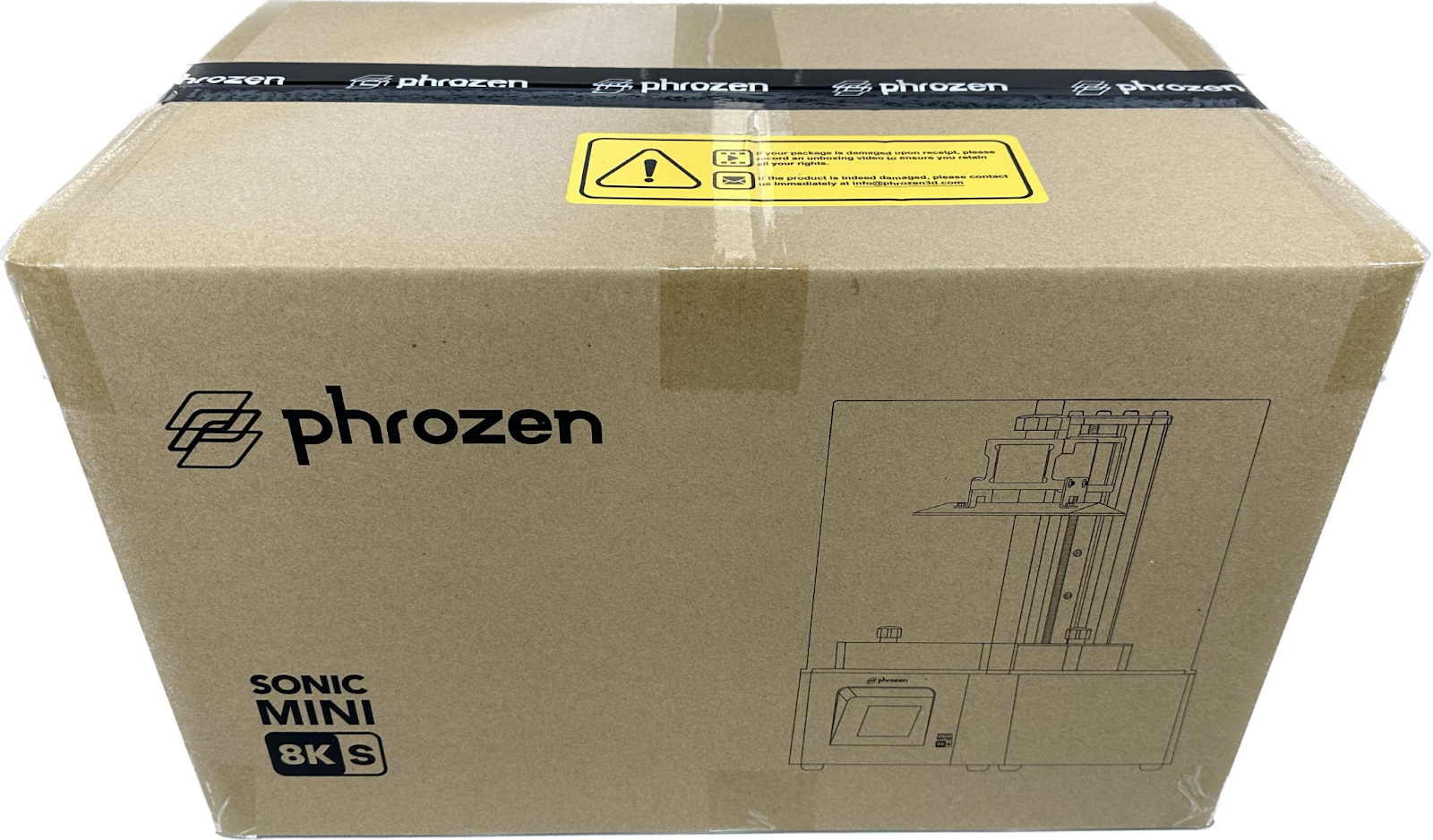

• Open the box from the top

• Take the printer out of the box
• Remove the form packaging and the plastic wrap

• Open the green UV cover, then remove the toolbox and the inner cushion

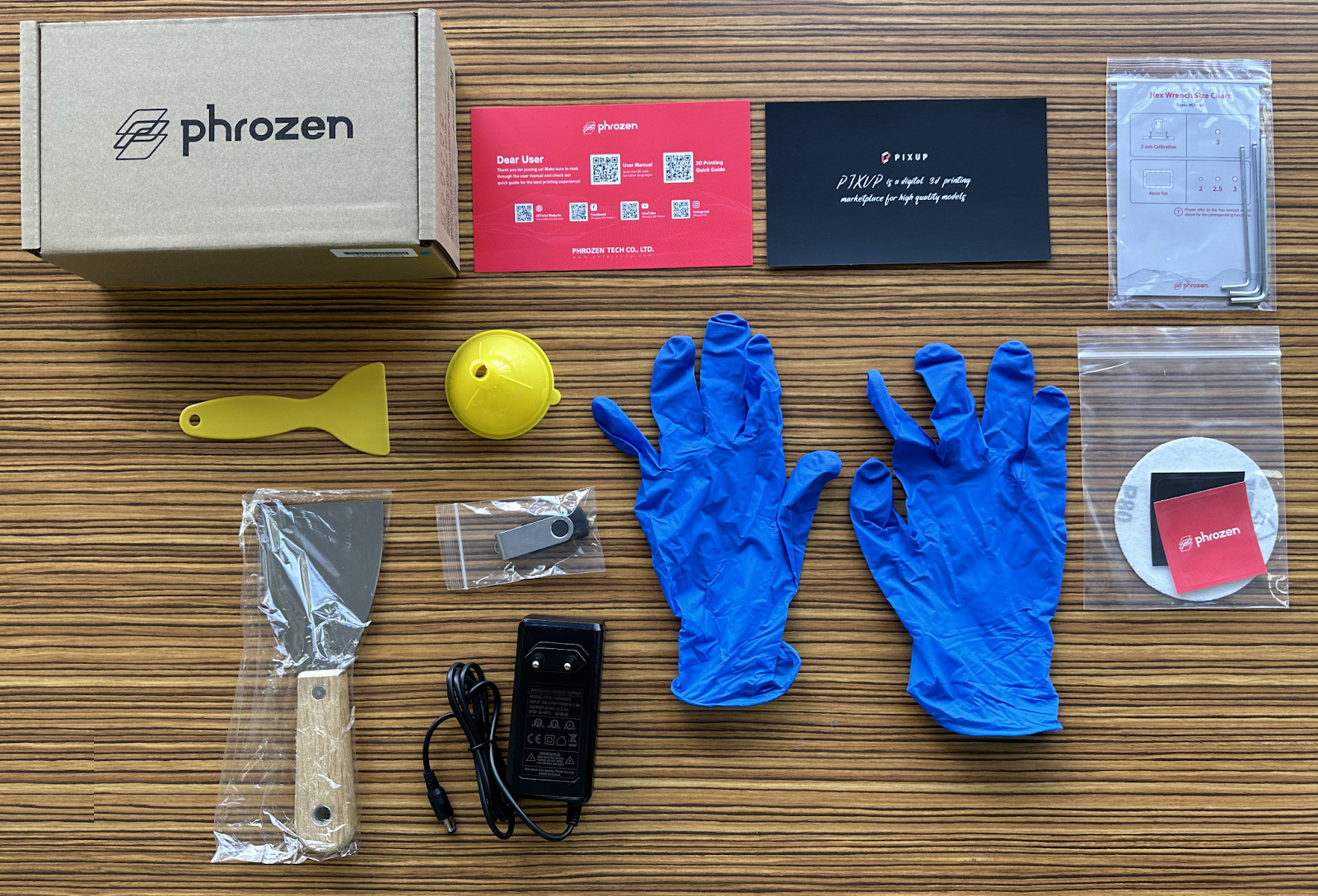

2. Opening the Toolbox

The toolbox provided with your Sonic Mini 8K S contains essential tools for setting up and maintaining your device. To make sure you have everything you need, double-check the contents of the toolbox and familiarize yourself with each tool before proceeding to the next step.

After-sales service & Warranty certificate

• Refer to the Warranty Certificate to find your 3D printer's serial number in case of damage or malfunctions
• Scan the provided QR code to access 3D printing tutorials and Phrozen Warranty policy

Gloves

• Wear personal protective equipment (PPE) such as masks, goggles, and gloves to avoid direct contact with resin during printing

Scraper set

• Use the metal scraper when removing models from the building plate
• Use the plastic scraper when cleaning the resin vat or removing cured resin from the FEP film or LCD screen

NOT using the metal scraper to remove cured resin from the FEP film is strongly advised. This can potentially harm the film and negatively impact the quality of your prints.

Power adapter

• Start up your Sonic Mini 8K S by plugging in the power adapter

Allen wrench

• Use the Allen wrench to unscrew and tighten the building plate during the Z-axis Calibration test

Plastic Funnel

• Use the plastic funnel to filter out excess resin after printing
• Simply place the funnel on top of the resin bottle and pour the resin back into the bottle

USB drive

• Use the provided USB drive to save your 3D printing files before plugging it into the USB port of the printer

Contact Support

By following the above instruction, you can easily unbox your Sonic Mini 8K S printer. If you find any issues, feel free to reach out to Phrozen Support or your Authorized Reseller for further assistance. When contacting Phrozen Support, kindly send some photos or videos illustrating the issue.
