[Sonic Mighty 4K] How to run the LCD Test

Before printing or when encountering an issue, you may need to check the status of your Sonic Mighty 4K's LCD screen. This is to ensure that both the UV lights and the 9.3” Mono-LCD screen are functioning properly. We will guide you through the steps of performing an LCD test and how you can read it:

DO NOT look directly at the UV light to prevent eye discomfort.

1. LCD test

Power up and Prepare

• Plug in the  power cable located at the back of the printer and switch on the power.

Perform the LCD  test

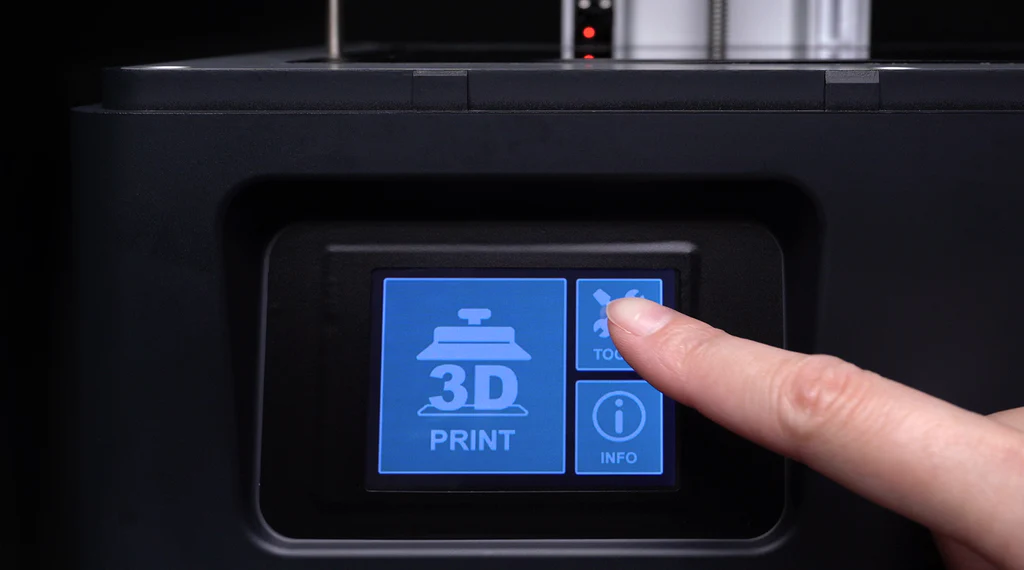

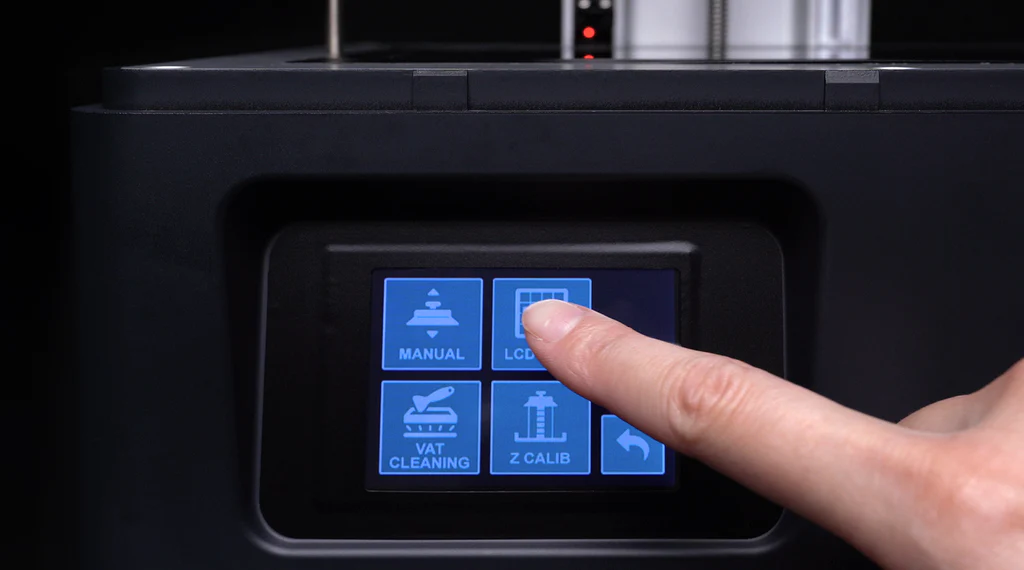

• On the touch panel, tap TOOLS > LCD TEST

 Confirm proper functionality

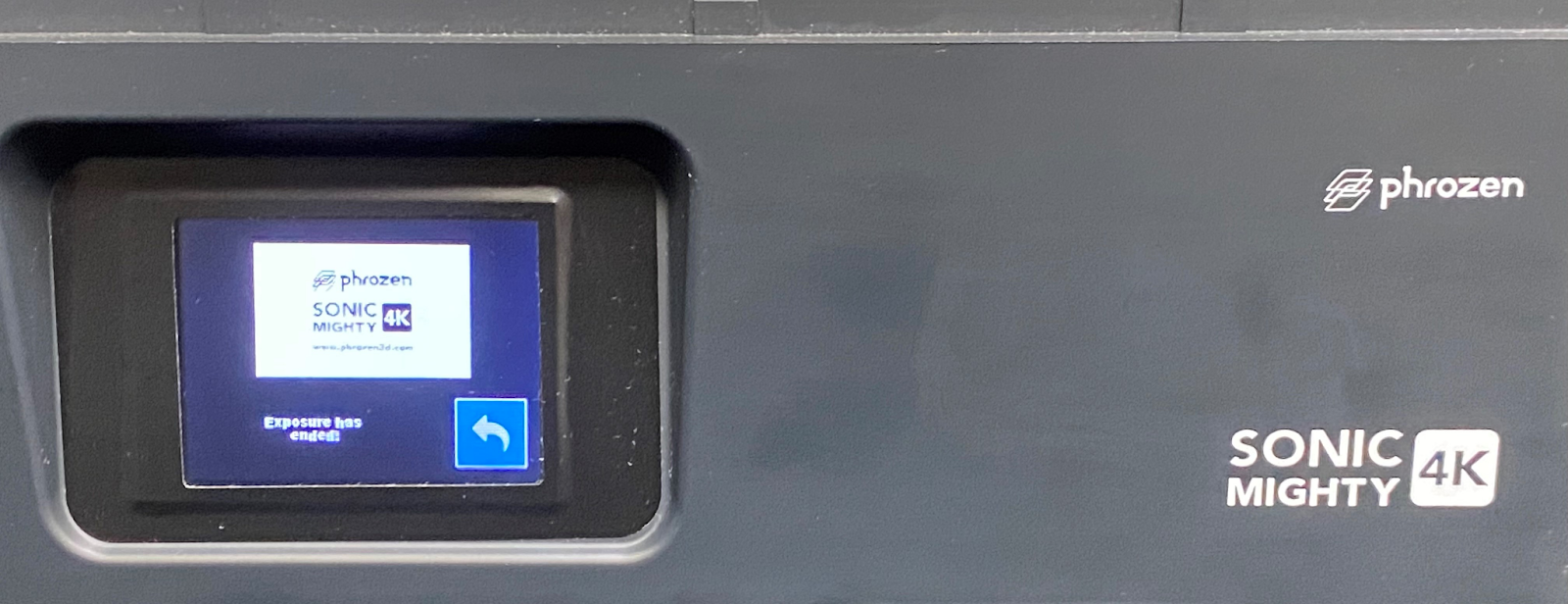

• The image phrozen SONIC MIGHTY 4K will appear on the touch panel and LCD screen.
•  Run this test to see if the image displayed on LCD matches the image on the touch panel.

2. VAT CLEANING

Power up and Prepare

• Plug in the  power cable located at the back of the printer and switch on the power.

Perform the Vat cleaning

• Click TOOLS, then click VAT CLEANING.

Confirm proper functionality

• On the touch panel, a white rectangle will appear.

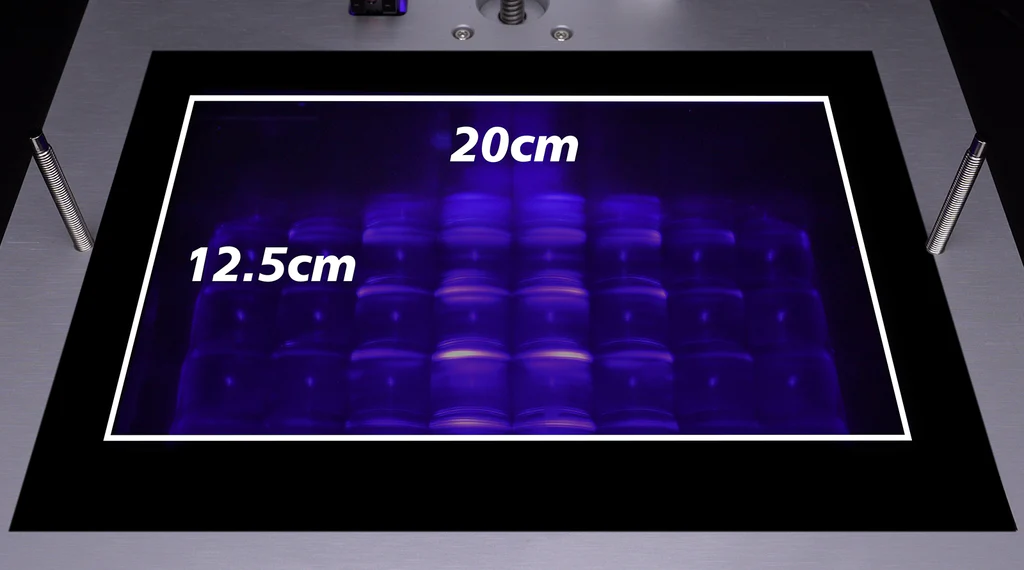

• On the LCD screen, an approximately 20 cm x 12.5 cm bright blue square will appear, while the entire screen is illuminated. Run this test to make sure the UV lights are distributed evenly.

3. Performing a Dry Print

If you're experiencing issues such as flickering or glitches, a dry print can be a helpful troubleshooting tool. A dry print is a test print that you run without placing the resin vat and building plate. This allows you to check whether the LCD is flickering or functioning correctly.

Power up and Prepare

• Plug the power source on the printer, and turn on your printer and
• Remove the resin vat and building plate from the printer

Perform the dry run test

• Save a sliced file onto a USB drive and then plug it into the USB port on your printer
• Click on the file from touch panel to start the print

 Confirm proper functionality

• Check the LCD screen to see if the image displayed on it matches the one on the touch panel

Performing the above test can help you to identify any issues with the LCD and ensure that it is functioning correctly.

Contact Support

By following these steps, you can quickly examine the functionality of the LCD. If you find any issues, feel free to reach out to Phrozen Support or your Authorized Reseller for further assistance. When contacting Phrozen Support, kindly send some photos or videos illustrating the issue.
