Z-axis calibration is essential for every 3D printer. Run this test to make sure that the building plate is leveled to the LCD screen. This is to ensure that models and prints will adhere to the building plate.
We will guide you through the steps of calibrating your Sonic Mini 4K LCD 3D printer by using a piece of A4 paper:
Step 1: Settings

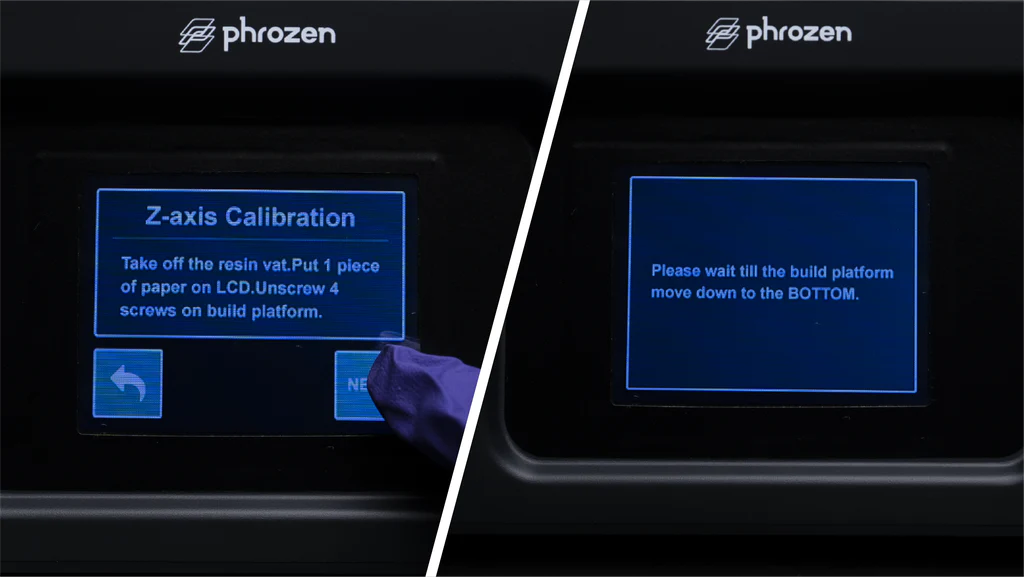

On the touch panel, click TOOLS, then click Z CALIB on your touch panel to begin the calibration process.
Before clicking NEXT, please complete steps 2 - 4.
Step 2: Remove the Resin Vat

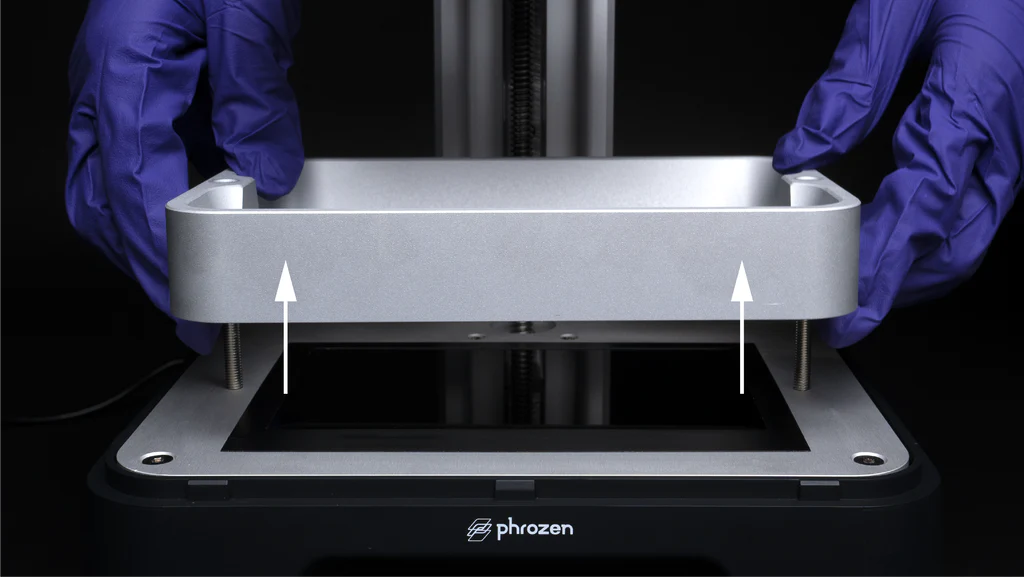

Remove the resin vat and make sure to remove any objects present on the machine's platform.
Step 3: Install the Building Plate

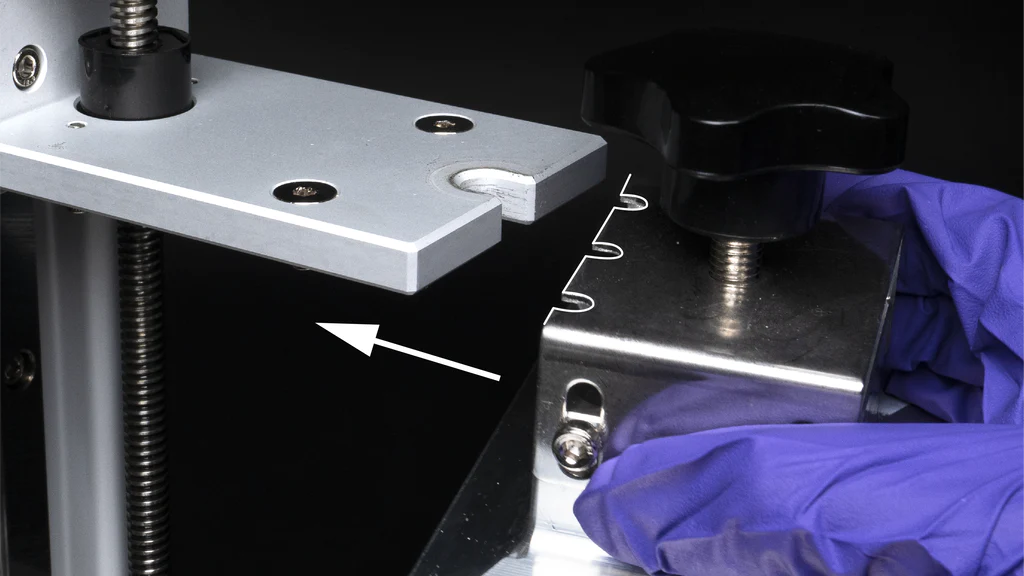

Attach the building plate knob to the printer and align it with the pins. Screw and tighten the building plate.
Please ensure that the building plate remains stable and does not shift while tightening.
Step 4: Loosen the Screws

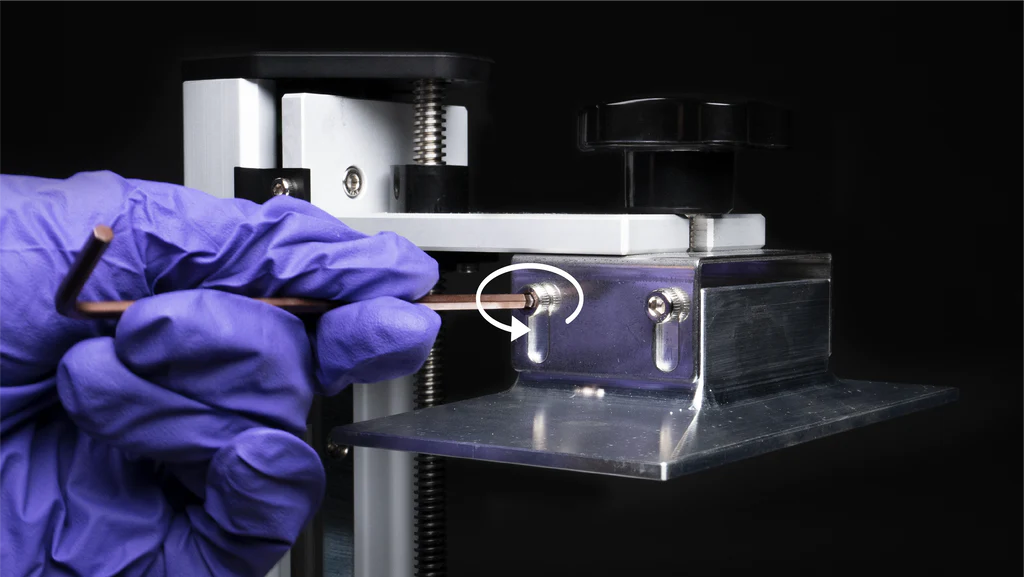

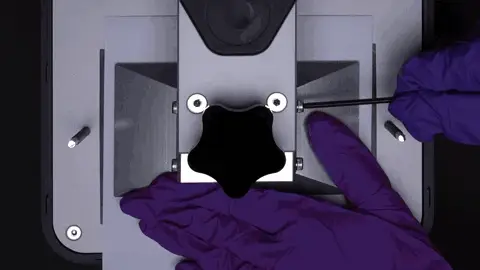

Use the Allen wrench included in the toolbox to loosen all 4 screws on the sides of the building plate in a counterclockwise direction. After loosening it, double-check to see if the plate is loose and movable.
Step 5: Pull the Building Plate down

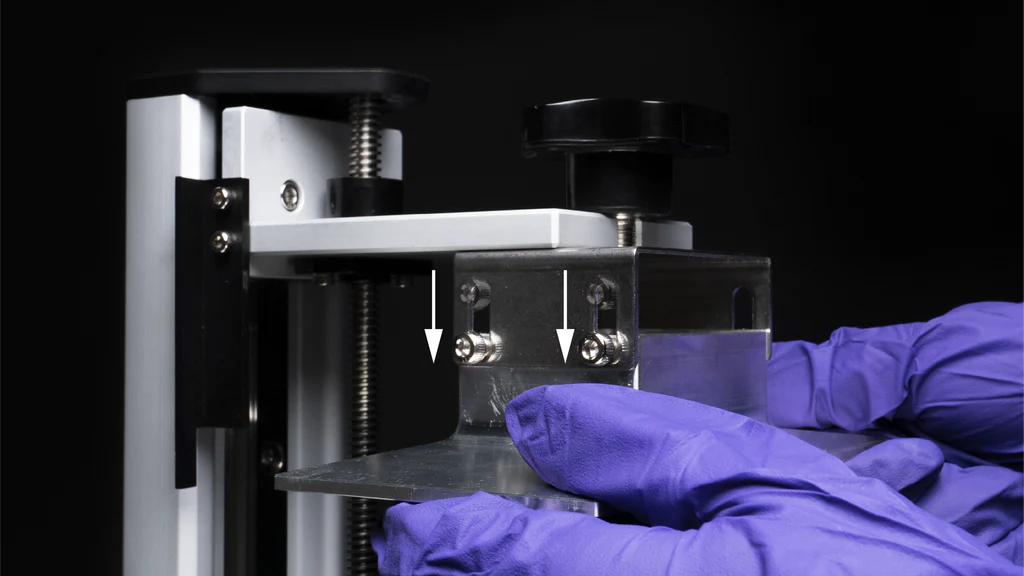

Pull the building plate in a downward motion until the screws on the building plate have been pulled down completely.
Step 6: Place a piece of paper on the LCD

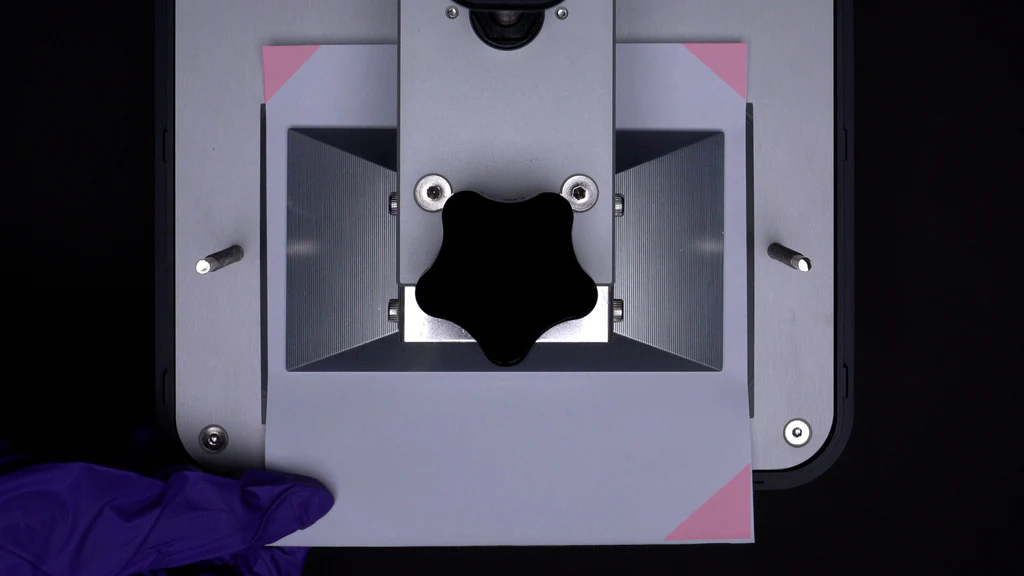

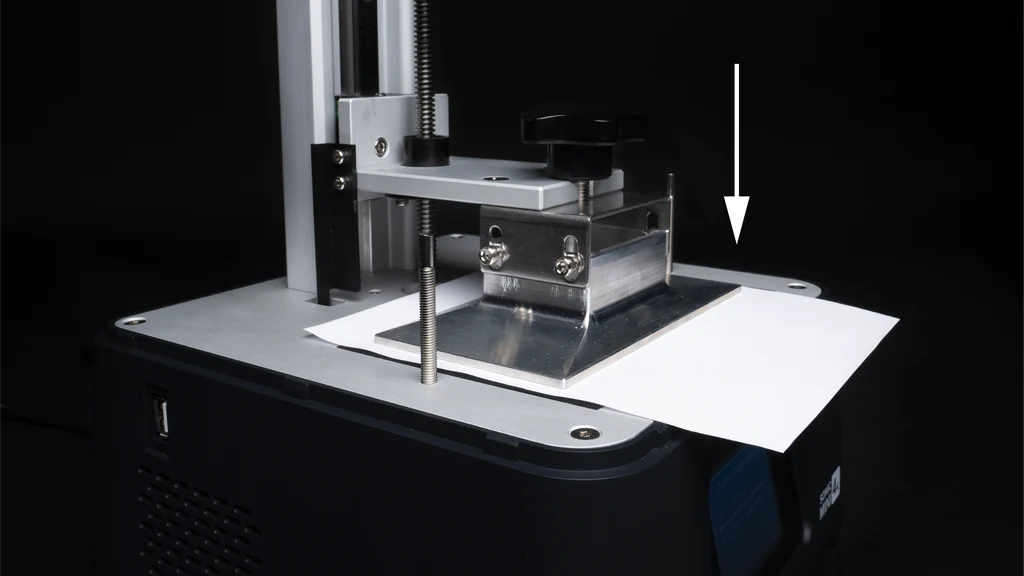

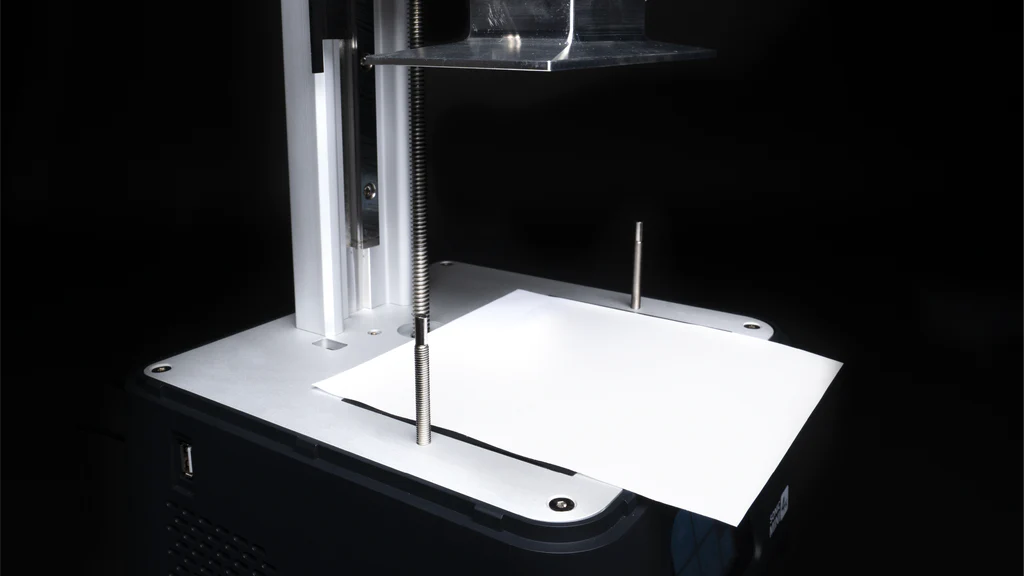

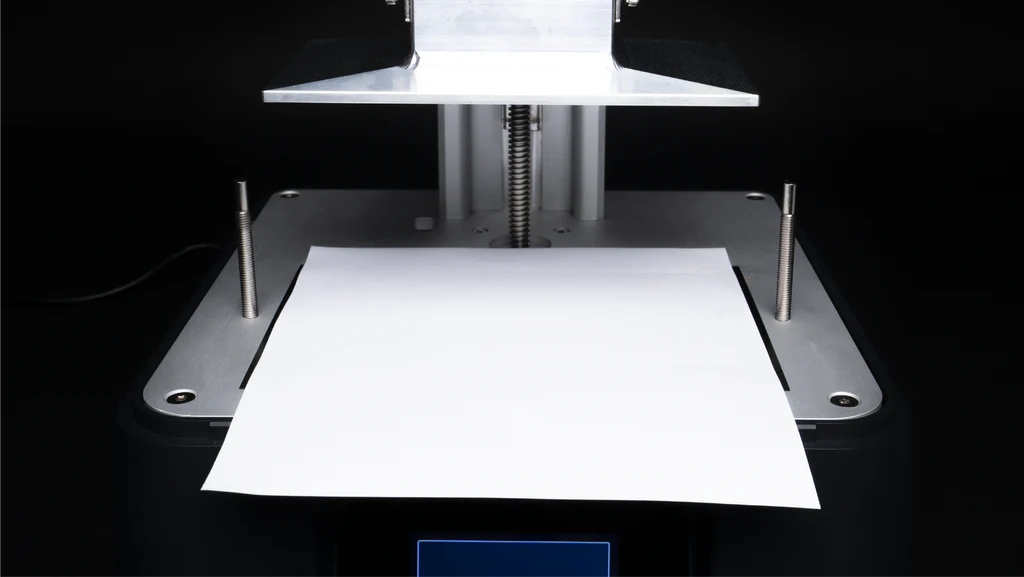

Prepare a piece of A4 paper (roughly 0.07-0.10 mm) and lay it flat on the LCD screen. This piece of paper will be used for leveling the building plate. Click NEXT and wait for 1-2 minutes as the building plate extends to the LCD screen.
Step 7: Apply Pressure on the Building Plate
Once the building plate has touched down, apply pressure and press down firmly on the sides of the building plate. Pull on the piece of paper to make sure the building plate is laying tight against it.
Step 8: Tighten the Screws in a Cross Pattern Order
Once you have successfully adjusted the building plate, tighten all four screws on the sides of the building plate in a clockwise direction while pressing down on the building plate with the other hand, in a cross pattern order, e.g., top-right, lower-left, top-left, and lower-right.
Step 9: Double-Check Z-axis Calibration
Tug on all four corners of the A4 paper to check for pressure intensity. If it is tight, please proceed onto the next step. If it isn’t, please perform the Z-axis calibration test again.
After several tries, if the paper is still loose, please perform the Z-axis Calibration test directly on the resin vat. The FEP thickness is approximately 0.14-0.15 mm.
Step 10: Done

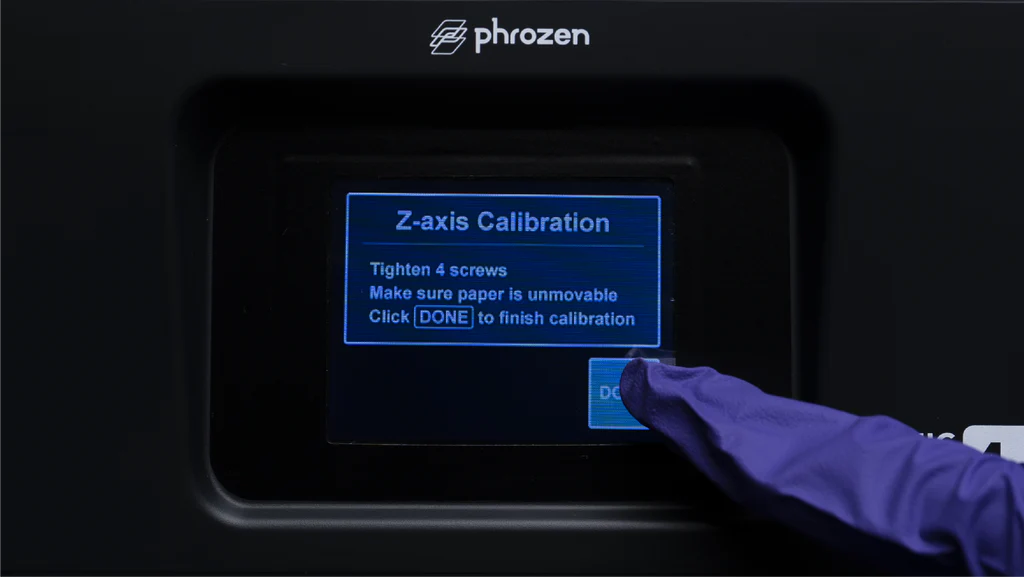

Click DONE on the touch panel and wait for the building plate to retract.
Once the plate has retracted, remove the A4 paper.
You are now ready to begin your 3D printing journey! Click here for a tutorial on printing out Phrozen's test file.
