During our extensive testing, we discovered that the original Purge Wiper design may cause waste filament to clog the outlet during multi-color printing.
To address this issue, we promptly developed a new version of the purge wiper! It’s easy to replace and will be included in the Chroma Kit (multi-color printing module), effectively preventing clogging caused by filament waste.
If you are not using the Chroma Kit (multi-color printing module) and do not require filament changes, you will not be affected and do not need to replace the purge wiper.
Tools Required:
- 2mm hex wrench
- New purge wiper
Installation Steps:

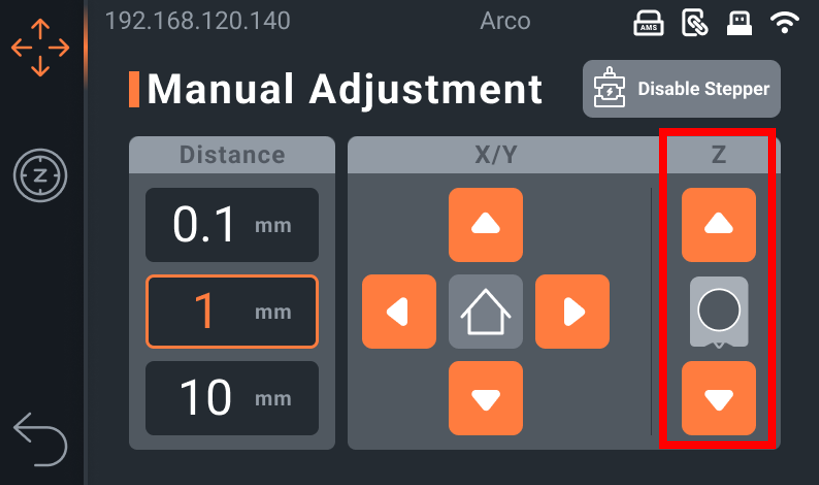

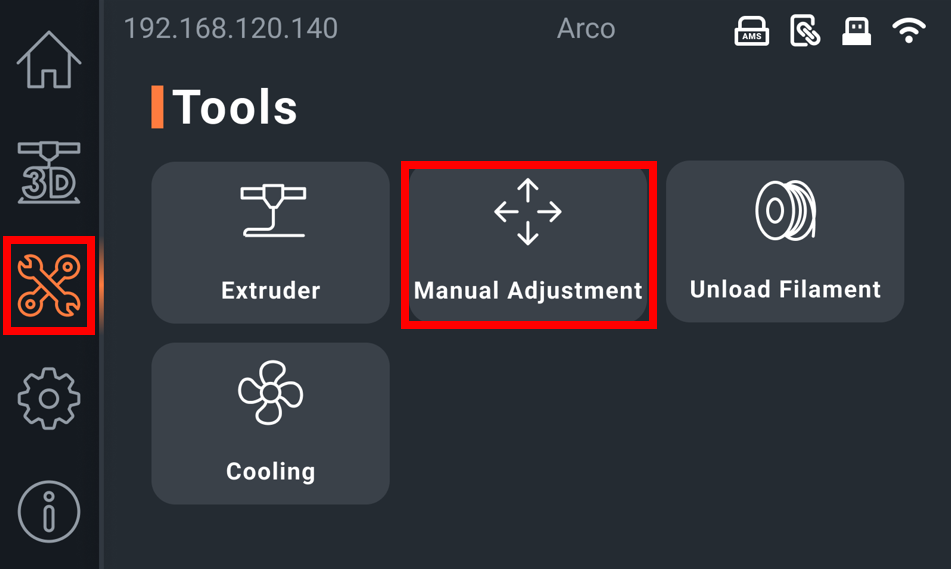

- Use the extruder control function to raise the extruder to a suitable height for easier operation.

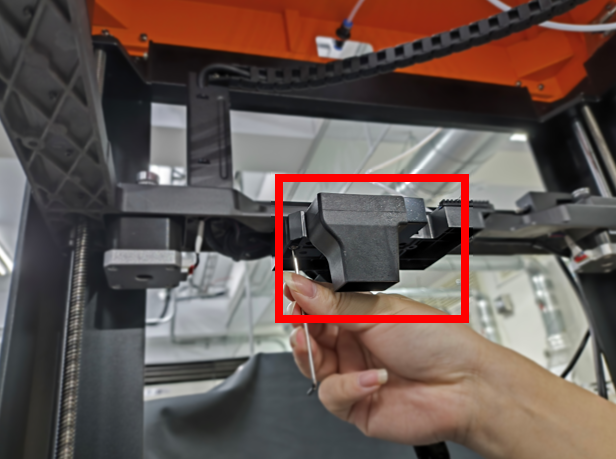

- Use a 2mm hex wrench to remove the two screws at the bottom of the purge wiper.
- Lift and pull out the old purge wiper.
- Insert the new purge wiper into the slot.
- Re-tighten the screws at the bottom.
- Replacement complete!
Need Help?
If you need further assistance, please visit our Help Center or contact our Customer Support Team — we’re happy to help!
