Welcome to the Wash and Cure Kit – your ultimate solution for professional-grade cleaning and curing tailored for mid-sized printers. This comprehensive guide is designed to familiarize you with the hardware and components of your Wash and Cure stations. By the time you finish reading, you'll feel confident and equipped to optimize your post-processing workflow to its fullest potential.

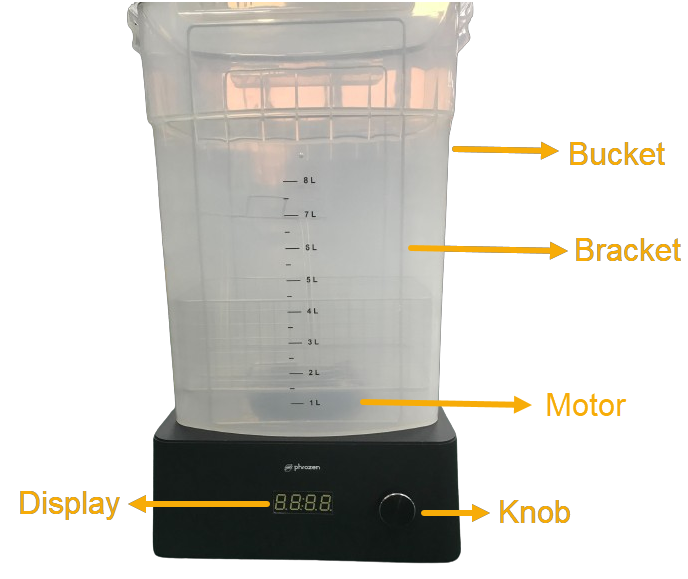

1. General Hardware Components (Wash Station)

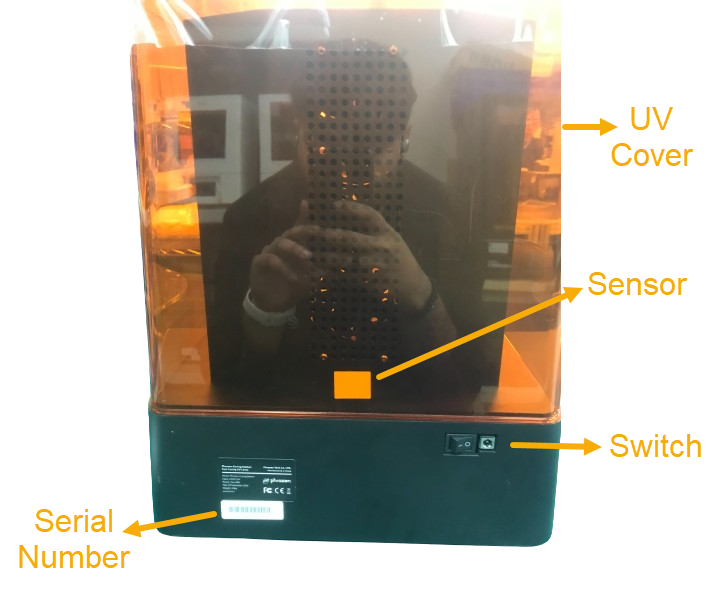

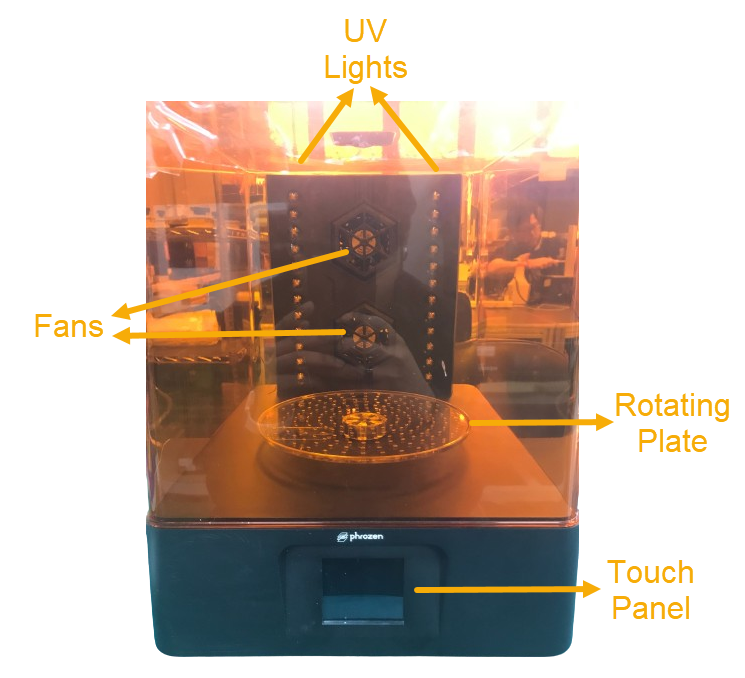

2. General Hardware Components (Cure Station)
3. Specifications (Wash Station)
- Rated Power: 48 W
- Input: 24 VDC
- Product Dimension: L27.7 x W20.7 x H46.7 cm
- Washing Bucket Volume: 8 L
- Maximum Model Size: L21.8 x W12.3 x H23.5 cm
- Weight: 3.5 kg
- Timer: 0 - 30 minutes
4. Specifications (Cure Station)
- Rated Power: 48 W
- Input: 24 VDC
- Product Dimension: L35.4 x W30.9 x H36.8 cm
- Turntable Size: 19.6 cm
- Maximum Model Size: 25 x H23.5 cm
- Weight: 3.9 kg
- Timer: 0-2 hours
- LED Wavelength: 405 nm
