[Wash Mega S] Getting to Know Your Wash Station

Welcome to Wash Mega S, a high productivity and large production based professional washing station. To help you get the most out of your wash station, this article will guide you through its hardware and components. By the end of this article, you'll have a better understanding of your Wash Mega S and be ready to start your post processing.

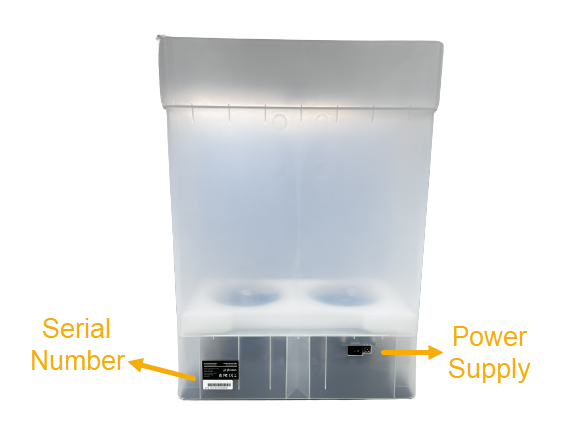

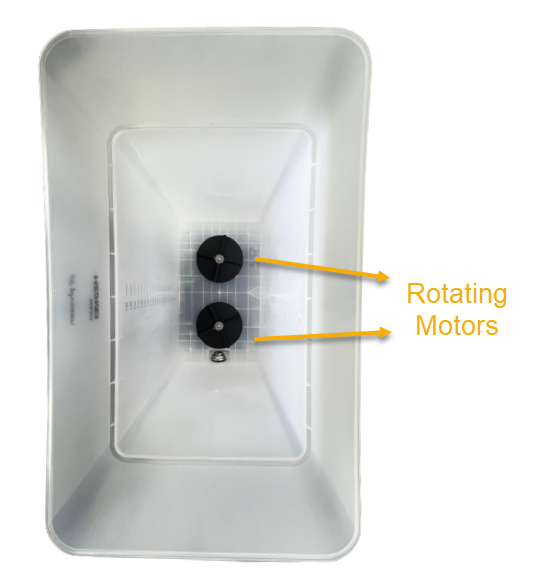

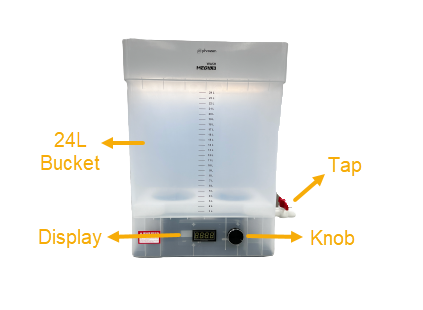

1. General Hardware Components

2. Specifications

• Product Size: L41.2 x W26.0 x H62.5 cm
• Inner Capacity: L33.0 x W19.0 x H30.0 cm
• Vortex Speed: High (300 rpm), Low (275 rpm)
• Cleaning Method: Dual-speed double vortex
• Washing Capacity: 25L
• Supported Building Plate: 15 (Mega series), 13.6 13.3 and 12.8/span
• Input Voltage: AC100-2400-60Hz
• Weight: 7.5 kg
• Timer Settings: 10 min
